6 CONTROLS 18

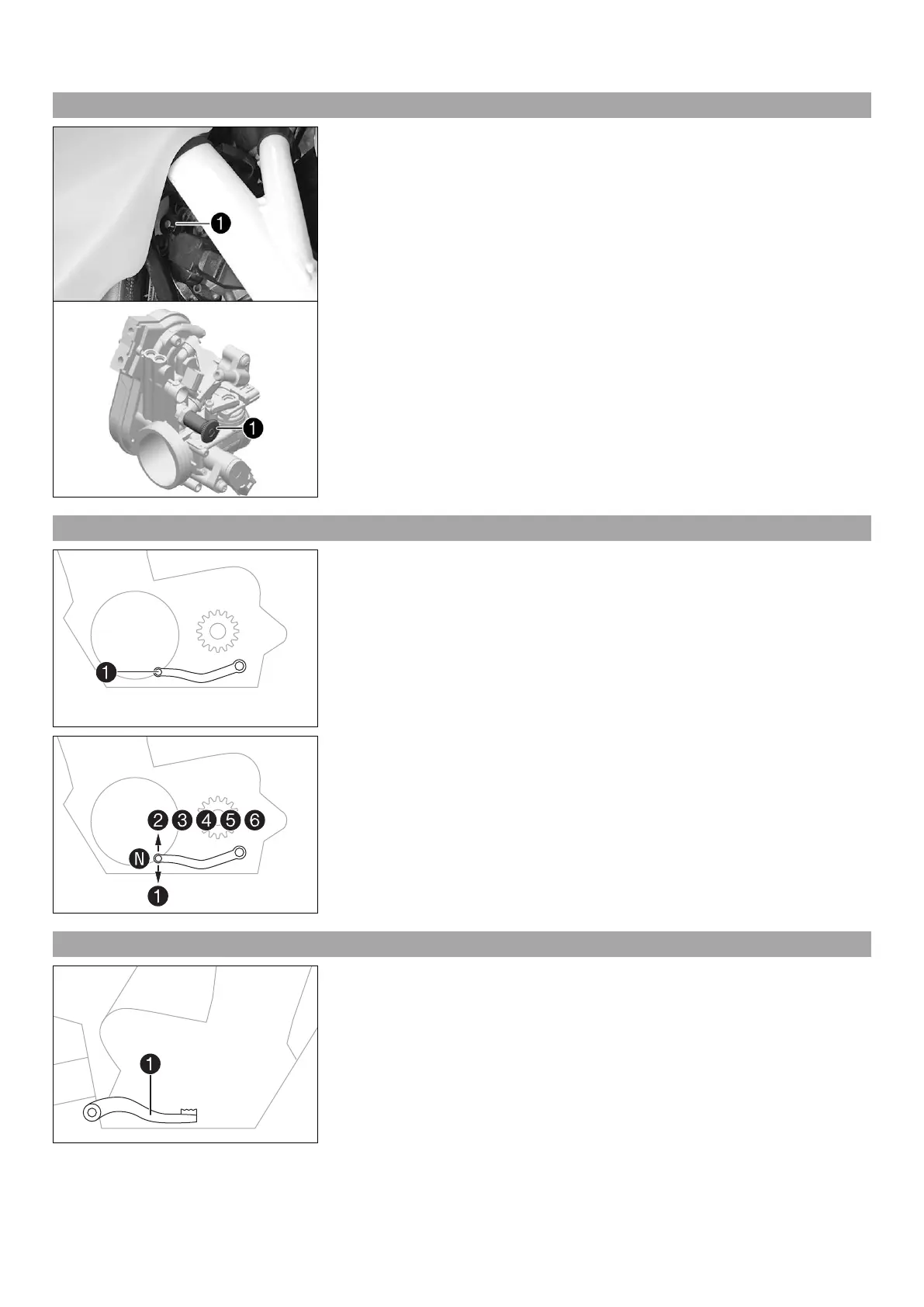

6.17 Idle speed adjusting screw
C00533-10
Idle speed adjusting screw
is located at the top left of the throttle valve body.
The idle speed adjusting screw has two functions.
Turning it controls the idle speed.
Pulling it out all the way raises the idle speed during a cold start.
Possible states
• RPM increase activated – Idle speed adjusting screw is pulled out all the way.
• RPM increase deactivated – Idle speed adjusting screw is pushed in all the way.
6.18 Shift lever
401950-10
Shift lever
is mounted on the left side of the engine.
401950-11
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
6.19 Foot brake lever
401956-10
The foot brake lever
is attached in front of the right footrest.
The foot brake lever is used to activate the rear brake.
