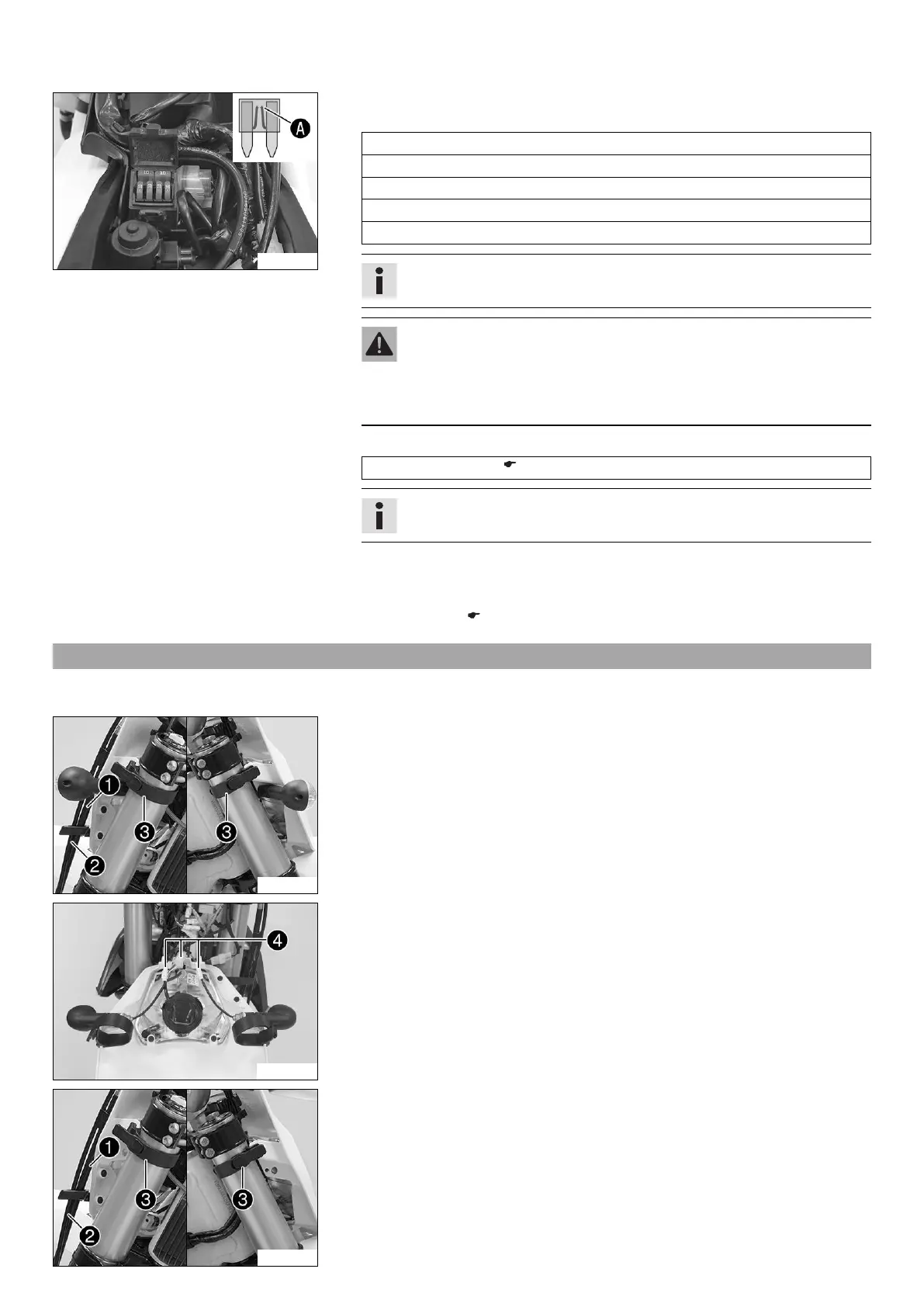

15 ELECTRICAL SYSTEM 85
S00901-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - EFI control unit
Fuse 2 - 10 A - fuel pump
Fuse 3 - 10 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 4 - 10 A - horn, brake light, turn signal, radiator fan
Fuses res - 10 A - spare fuses
Info
A defective fuse is indicated by a burned-out fuse wire
.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses
are used.
– Use only fuses with the prescribed amperage. Never bypass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 110)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 50)
15.6 Removing the headlight mask with the headlight
Preparatory work
– Switch off all power consumers and switch off the engine.
S00513-10
Main work
(FE EU/AU)
–
Detach brake line
and wiring harness
.
–
Release rubber straps
. Slide the headlight mask up and swing it forward.
H00220-10
–
Detach plug-in connectors
and take off the headlight mask with the head-
light.
S00514-10
(FE US)
–
Detach brake line
and wiring harness
.
–
Release rubber straps
. Slide the headlight mask up and swing it forward.
