12 SERVICE WORK ON THE CHASSIS 47
– Install the front wheel. ( p. 77)
– Install the headlight mask with the headlight. ( p. 86)
– Check that the wiring harness, throttle cables, and brake and clutch lines can
move freely and are routed correctly.
– Check the steering head bearing play. ( p. 47)
– Remove the motorcycle from the lift stand. ( p. 42)
– Check the headlight setting. ( p. 88)

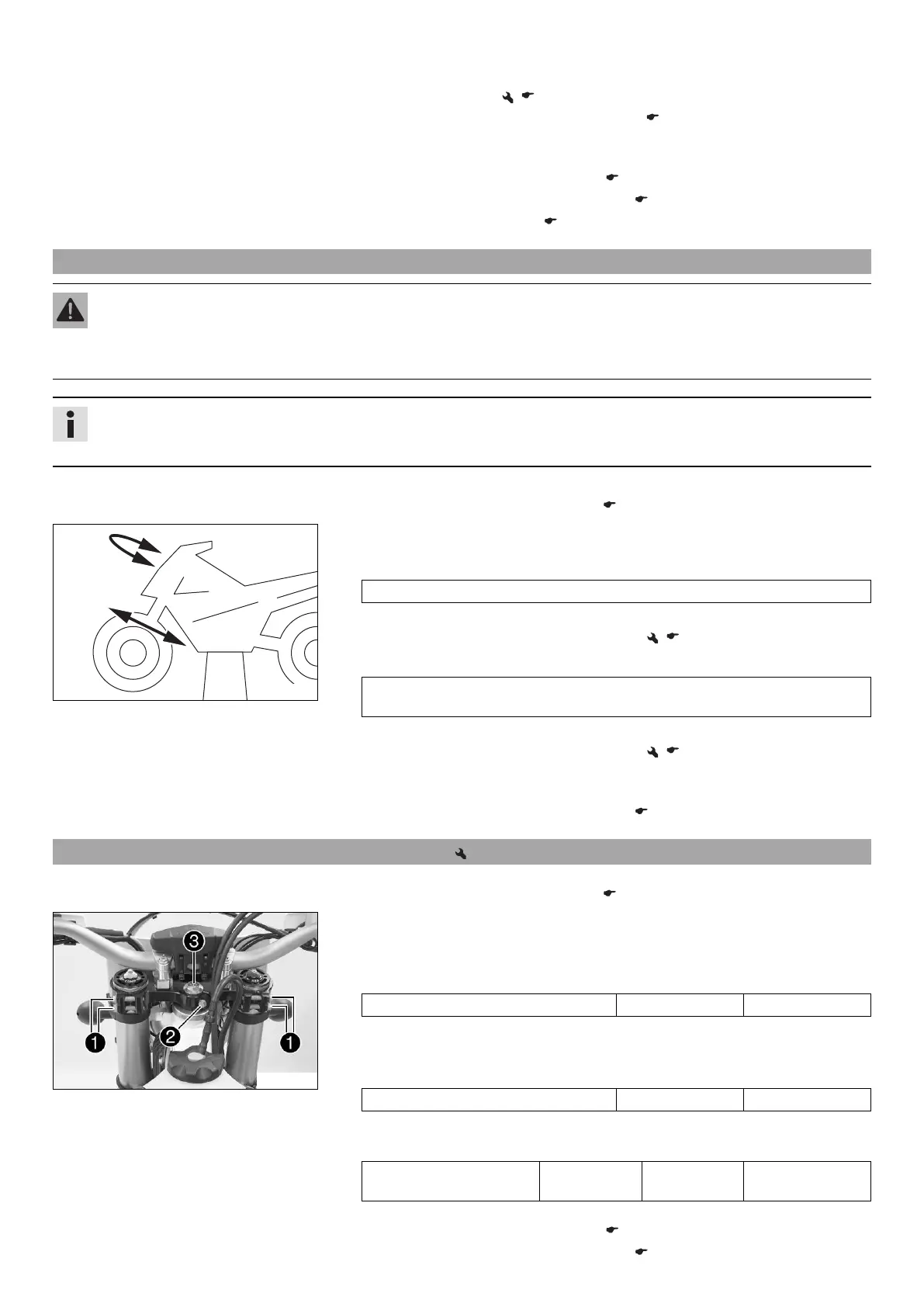

12.11 Checking the steering head bearing play
Warning
Danger of accidents Unstable vehicle handling from incorrect steering head bearing play.
– Adjust the steering head bearing play without delay. (Your authorized Husqvarna Motorcycles workshop will be glad to
help.)
Info
If the bike is ridden with play in the steering head bearing, the bearing and the bearing seats in the frame can become dam-
aged over time.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
400738-11
Main work
– Move the handlebar to the straight-ahead position. Move the fork legs to and fro
in the direction of travel.
No play should be noticeable in the steering head bearing.
» If there is noticeable play present:
– Adjust the steering head bearing play. ( p. 47)
– Move the handlebar to and fro over the entire steering range.
The handlebar must be able to move easily over the entire steering range. No
resting locations should be noticeable.
» If click positions are noticeable:
– Adjust the steering head bearing play. ( p. 47)
– Check the steering head bearing and replace if required.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 42)
12.12 Adjusting the steering head bearing play
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
H00219-10
Main work
–
Loosen screws
. Remove screw
.
–
Loosen and retighten screw
.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
–
Locate and tighten screw
.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
Finishing work
– Check the steering head bearing play. ( p. 47)
– Remove the motorcycle from the lift stand. ( p. 42)
