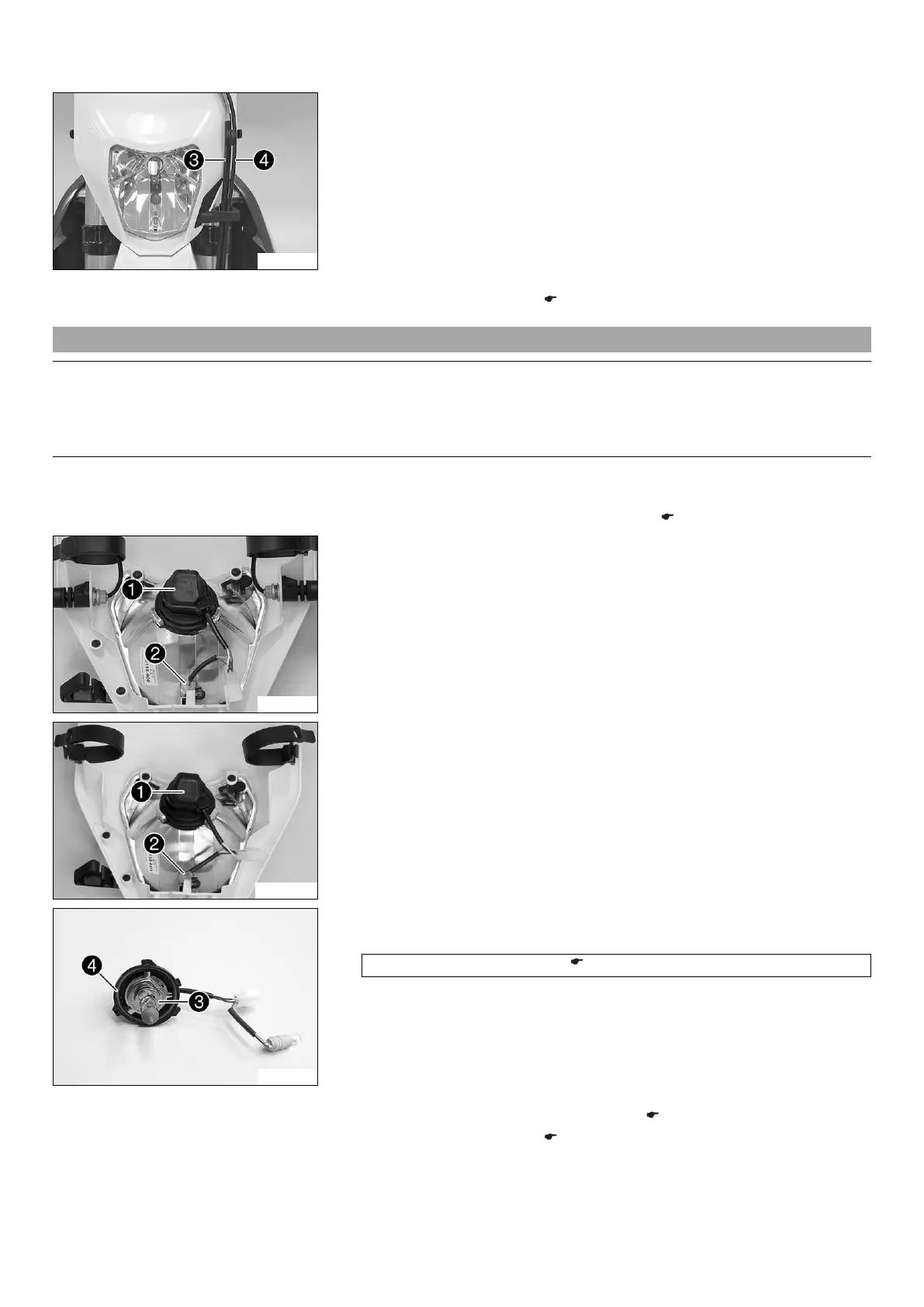

15.8 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 85)
S00507-10
Main work
(FE EU/AU)
–
Turn protection cap
together with the underlying bulb socket counter-
clockwise all the way and remove it.
–
Pull bulb socket
of the parking light out of the reflector.
M00433-10
(FE US)
–
Turn protection cap
together with the underlying bulb socket counter-
clockwise all the way and remove it.
–
Pull bulb socket
of the parking light out of the reflector.
S00508-10
–
Pull out headlight bulb
.
– Insert the new headlight bulb.
Headlight (HS1 / Sockel PX43t) ( p. 110)
– Insert the protection cap with the bulb socket into the reflector and turn it clock-
wise all the way.
–
Ensure that O-ring
is seated properly.
– Insert the bulb socket of the parking light into the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 86)
– Check the headlight setting. ( p. 88)
