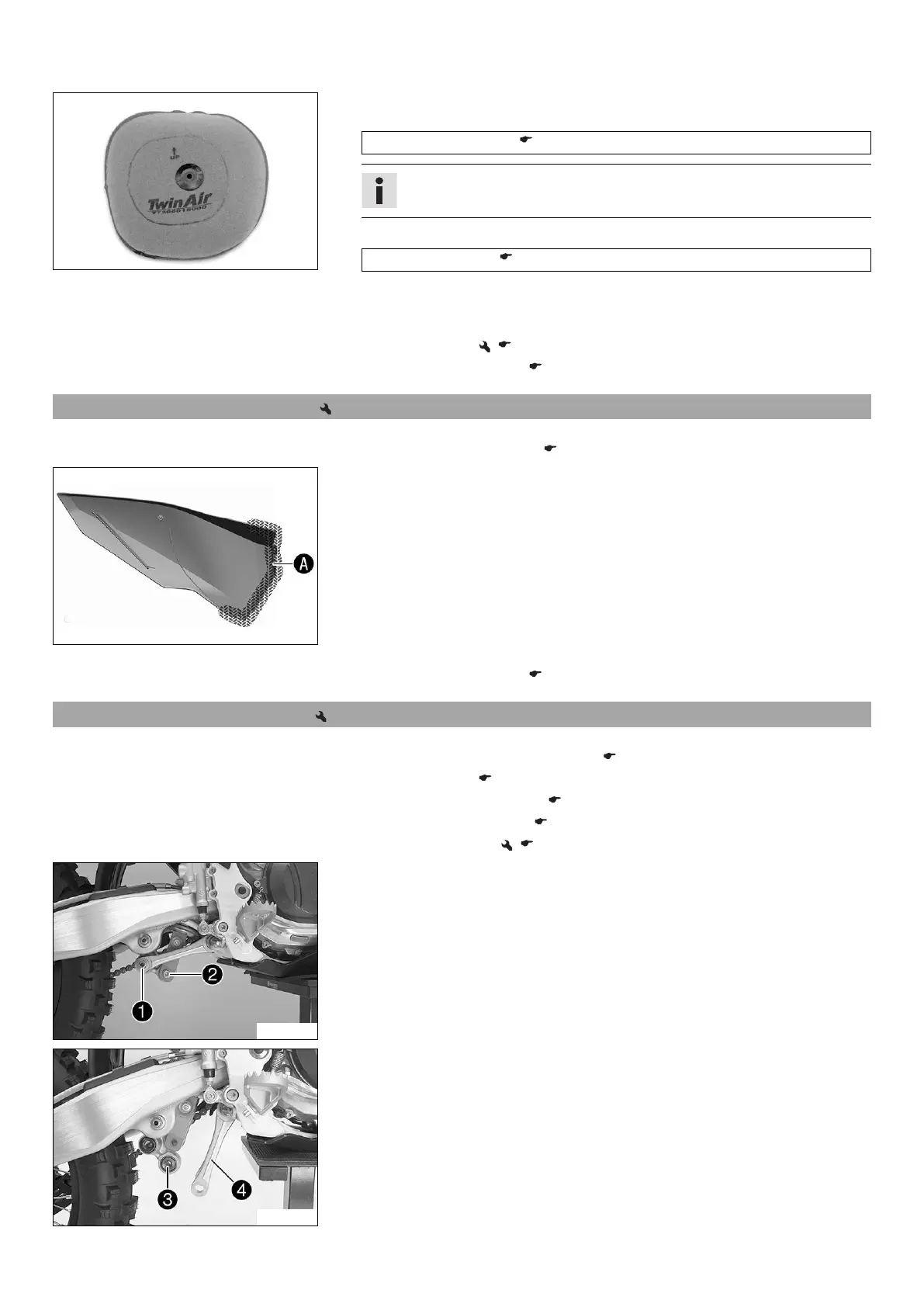

12 SERVICE WORK ON THE CHASSIS 52
M00303-01
Main work
– Wash the air filter thoroughly in special cleaning liquid and allow it to dry properly.
Air filter cleaning agent ( p. 114)
Info
Only press the air filter to dry it, never wring it out.
– Oil the dry air filter with a high quality filter oil.
Oil for foam air filter ( p. 114)
– Clean the air filter box.
– Check the intake flange for damage and looseness.
Finishing work
– Install the air filter. ( p. 51)
– Install the air filter box lid. ( p. 50)
12.25 Sealing the air filter box
Preparatory work
– Remove the air filter box lid. ( p. 50)
401559-01
Main work
–
Seal the air filter box in the marked area
.
Finishing work
– Install the air filter box lid. ( p. 50)
12.26 Removing the manifold
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
– Remove the seat. ( p. 49)
– Remove the right side cover. ( p. 58)
– Remove the main silencer. ( p. 55)
– Remove the fuel tank. ( p. 59)
H00185-10
Main work
–
Remove fitting
.
–
Remove screw
.
H00223-10
–
Press angle lever
toward the rear.
–
Press linkage lever
downward.
