11 TUNING THE CHASSIS 40

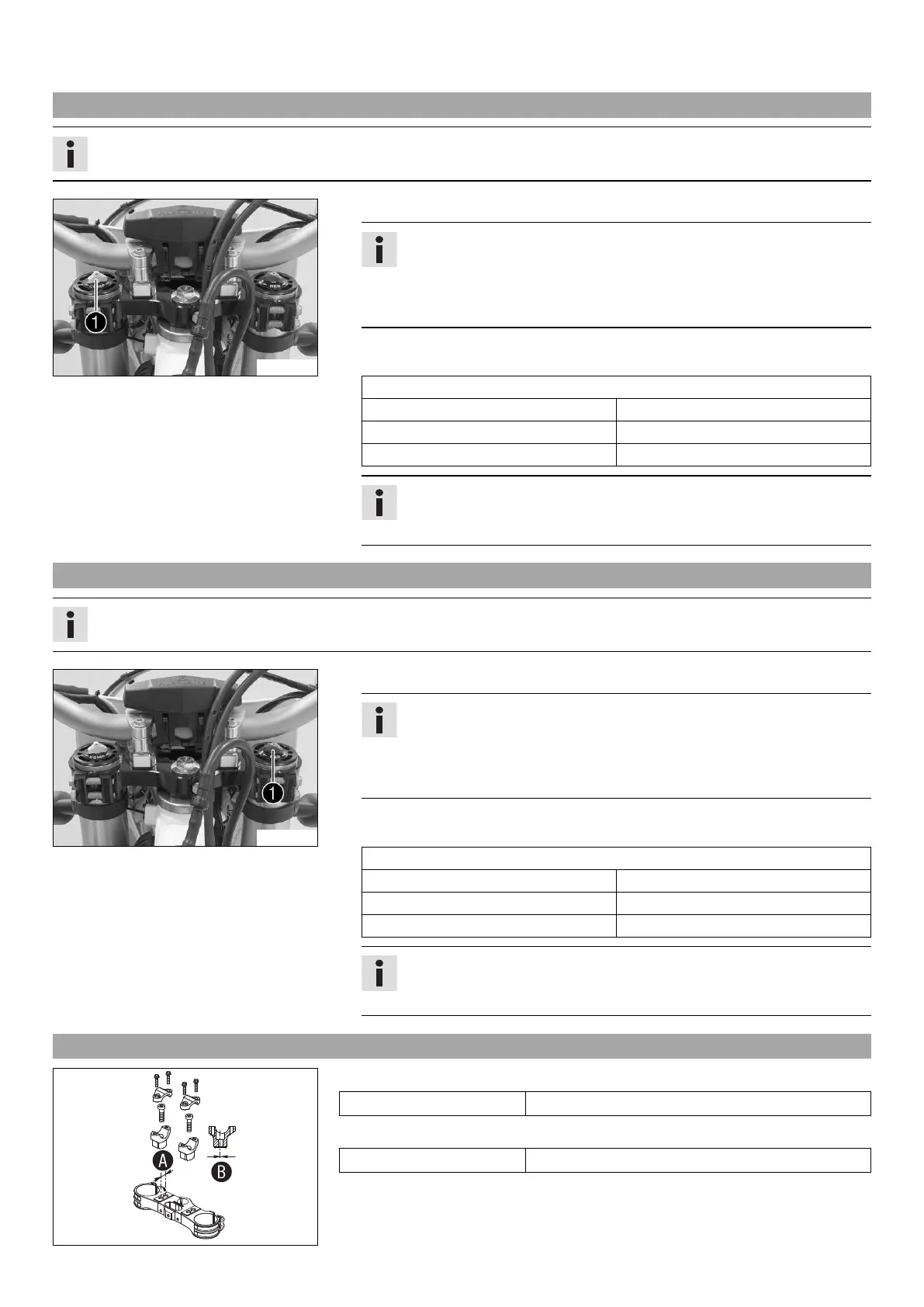

11.12 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
H00212-10
–
Turn the white adjusting screw
all the way clockwise.
Info
The adjusting screw
is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white
adjusting screw). The rebound damping is located in the right fork leg REB
(red adjusting screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
11.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
H00212-11
–
Turn the red adjusting screw
all the way clockwise.
Info
The adjusting screw
is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
11.14 Handlebar position
101859-10
On the upper triple clamp, there are two holes at a distance of
to each other.
Hole distance
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance of
from the center.
Hole distance
3.5 mm (0.138 in)
The handlebar supports can be mounted in four different positions.
