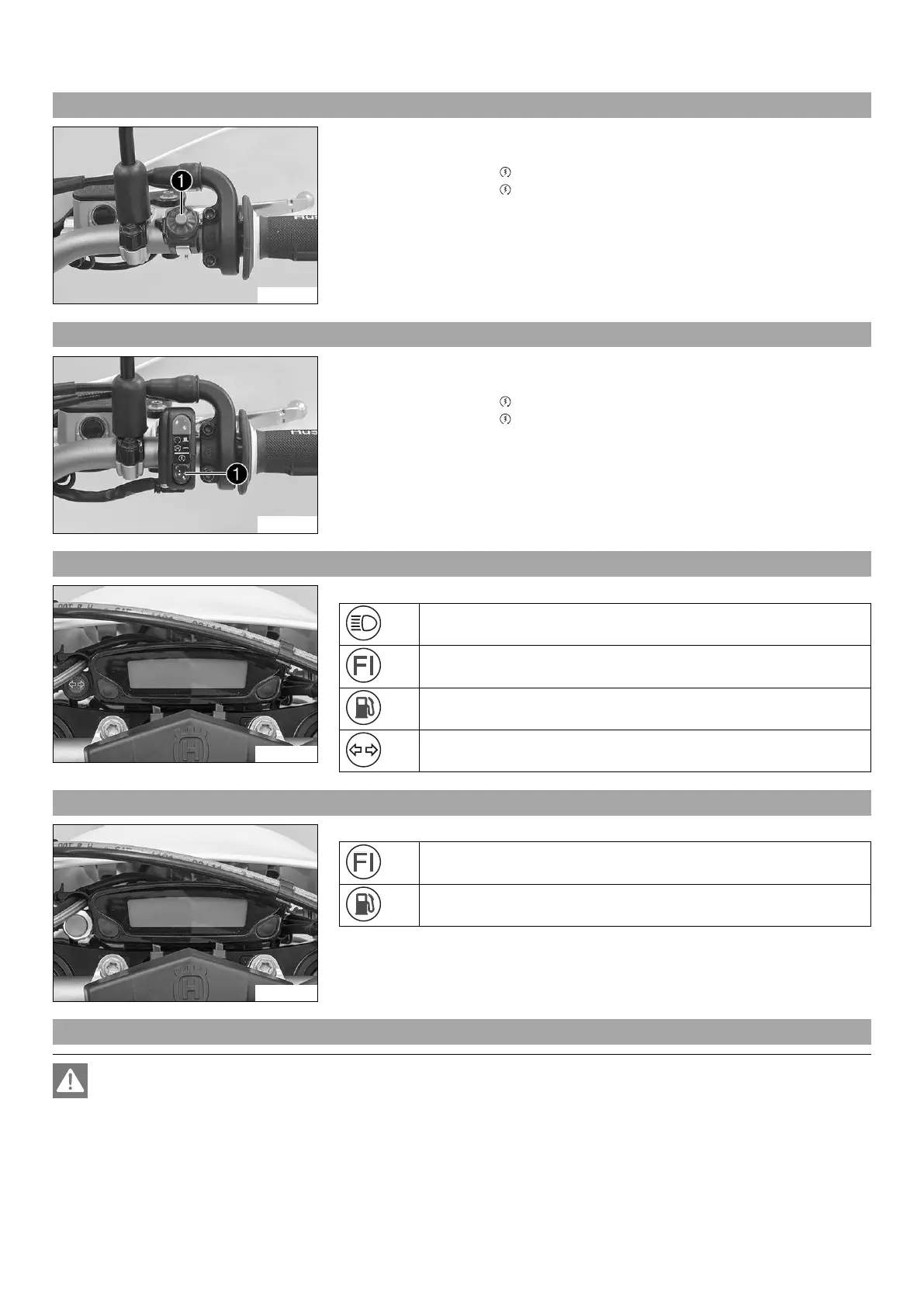

6 CONTROLS 16
6.11 Electric starter button (FE EU/US)
S00890-10
The electric starter button
is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
6.12 Electric starter button (FE AU)
S00891-11
The electric starter button
is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
6.13 Overview of indicator lamps (FE EU/AU)
M00355-11
Possible states
The high beam indicator light lights up blue – The high beam is
switched on.
FI warning lamp (MIL) lights up/flashes orange – The OBD has
detected an emission- or safety-critical fault.
The low fuel warning lamp lights up orange – The fuel level has
reached the reserve mark.
Turn signal indicator light flashes green – The turn signal is switched
on.
6.14 Overview of indicator lamps (FE US)
M00355-12
Possible states
FI warning lamp (MIL) lights up/flashes orange – The OBD has
detected an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has
reached the reserve mark.
6.15 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
