12 SERVICE WORK ON THE CHASSIS 49
– Check the headlight setting. ( p. 88)

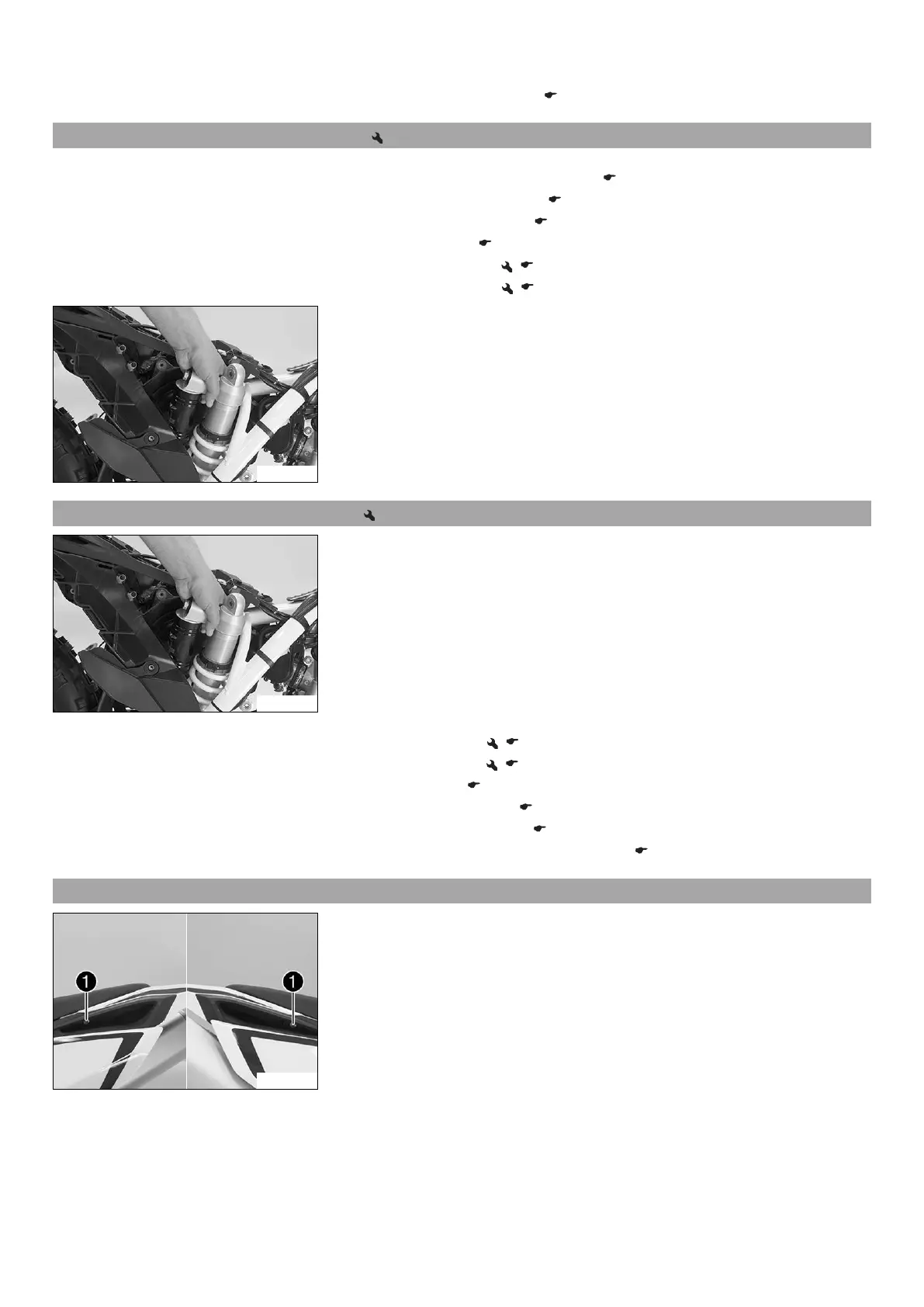

12.16 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
– Remove the right side cover. ( p. 58)
– Remove the main silencer. ( p. 55)
– Remove the seat. ( p. 49)
– Remove the fuel tank. ( p. 59)
– Remove the manifold. ( p. 52)
H00222-01
Main work
– Carefully take the shock absorber out of the vehicle toward the top.
12.17 Installing the shock absorber
H00222-01
Main work
– Carefully position the shock absorber into the vehicle from above.
Finishing work
– Install the manifold. ( p. 54)
– Install the fuel tank. ( p. 60)
– Mount the seat. ( p. 50)
– Install the main silencer. ( p. 57)
– Install the right side cover. ( p. 58)
– Remove the motorcycle from the lift stand. ( p. 42)
12.18 Removing the seat
H00182-10
–
Remove screws
.
