Hypertherm Powermax45 XP User Manual

Cut Charts and Marking Charts
9
126 809240 Operator Manual Powermax45 XP

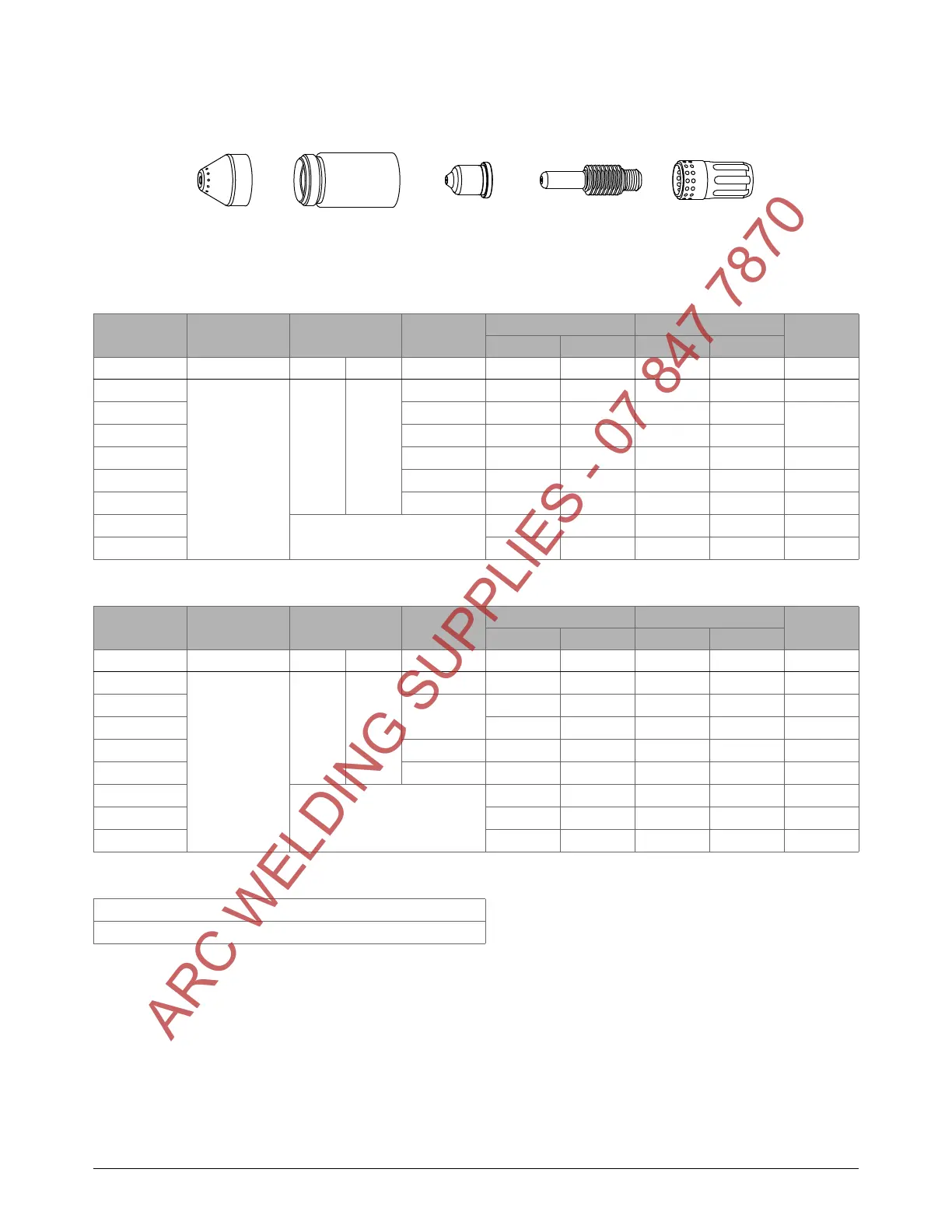

Aluminum – 45 A – Air – Shielded
Metric
Material
Thickness
Torch-to-Work
Distance
Initial Pierce Height
Pierce
Delay Time
Best Quality Settings Production Settings
Kerf Width
Cut Speed Voltage Cut Speed Voltage
mm mm mm % seconds mm/min volts mm/min volts mm
2
1.5
3.8 250
0.1 7890 121 9585 134 1.3
3 0.2 4850 130 7120 129
1.5
4 0.4 3670 133 5650 129
6 0.5 2060 139 3095 132 1.6
8 0.6 1330 139 1830 136 1.7
10 0.7 860 142 1015 140 1.9
12
Edge Start
620 144 745 142 2
16 360 152 340 148 2.5
English
Material
Thickness
Torch-to-Work
Distance
Initial Pierce Height
Pierce
Delay Time
Best Quality Settings Production Settings
Kerf Width
Cut Speed Voltage Cut Speed Voltage
inches inches inches % seconds in/min volts in/min volts inches
1/10
0.06
0.15 250
0.2 240 126 320 131 0.056
1/8
0.4
170 131 263 128 0.060
3/16 120 134 184 130 0.061
1/4 0.5 70 137 104 132 0.063
3/8 0.7 36 141 42 139 0.073
1/2
Edge Start
21 145 26 143 0.082
5/8 15 152 14 148 0.100
3/4 8 158 9 153 0.117
Gas flow rate – slpm / scfh
151 / 320 Hot (cutflow)
184 / 390 Cold (postflow)
220817 220854
(220953 for
ohmic sensing)
220941 220857220842
