Gouge with the Hand Torch and Machine Torch
4
72 809240 Operator Manual Powermax45 XP
Maximum Control gouging
 Use the Maximum Control gouging consumables.

Hypertherm also offers Maximum Removal gouging consumables. At
higher amperages on other Powermax systems, you can use the Maximum
Removal consumables for greater metal removal rate and deeper gouge
profiles. However, at 45 A with this system and torch, the Maximum
Removal consumables do not offer an advantage over the Maximum
Control consumables in terms of metal removal rate. You can expect each
set of consumables to produce similar results on this system.
 Set the output current between 26 A and 45 A.
 Gouging at lower amperages (10 – 25 A) can limit the torch’s arc stretch capability. In
some instances it may also cause the arc to extinguish or trigger a “torch stuck open”
(TSO) fault. See page 148.

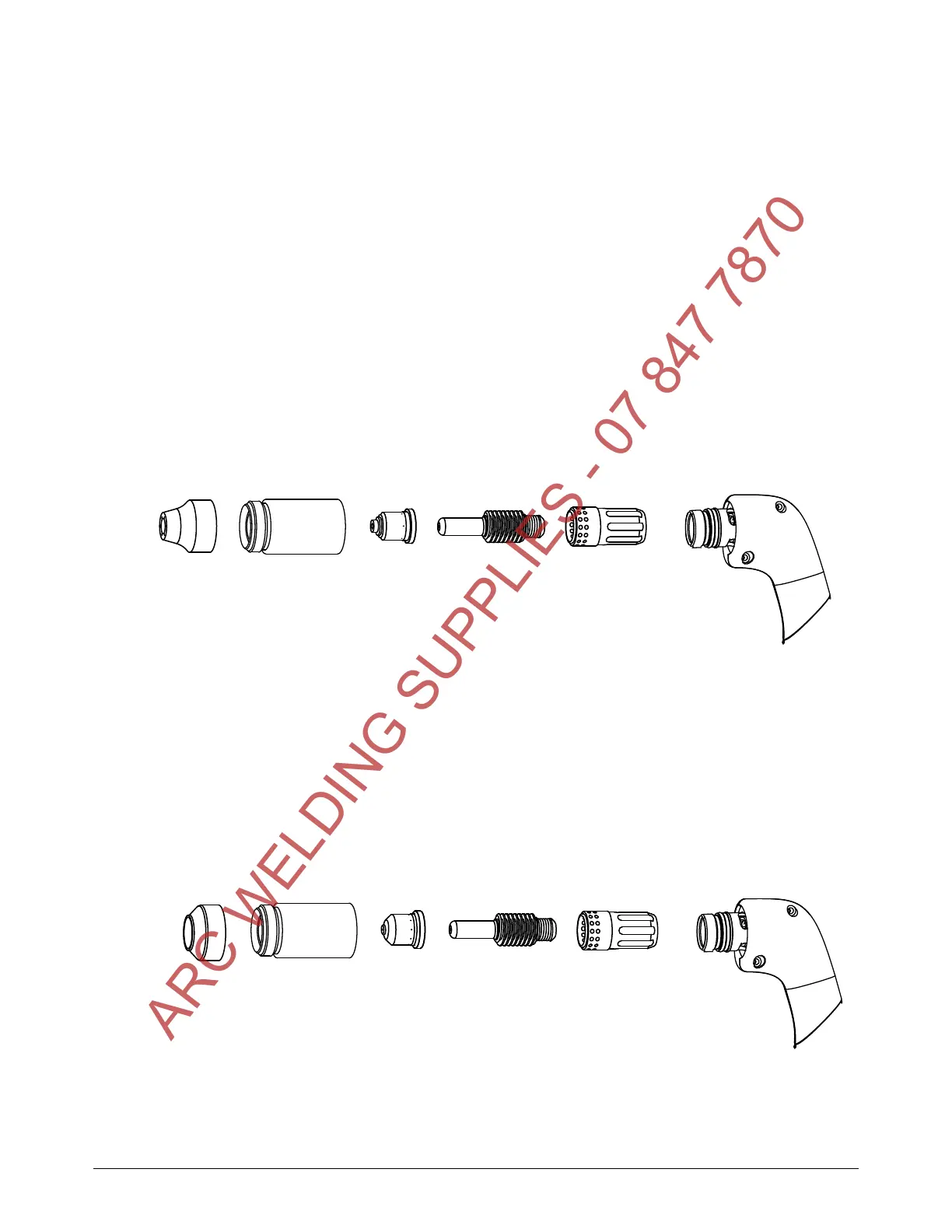

Maximum Control gouging consumables (26 – 45 A)
Precision gouging
 Use the Precision gouging consumables.
 Set the output current between 10 A and 25 A.
 Gouging at higher amperages (26 – 45 A) can shorten the life of the nozzle.
Precision gouging consumables (10 – 25 A)
420419
Nozzle
420480
Shield
220854
Retaining cap
220857
Swirl ring
220842
Electrode
220854
Retaining cap
420415
Nozzle
220857
Swirl ring
220842
Electrode
420414
Deflector
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
