Hypertherm Powermax45 XP User Manual

Replacement Parts and Accessories
12
Powermax45 XP Operator Manual 809240 169

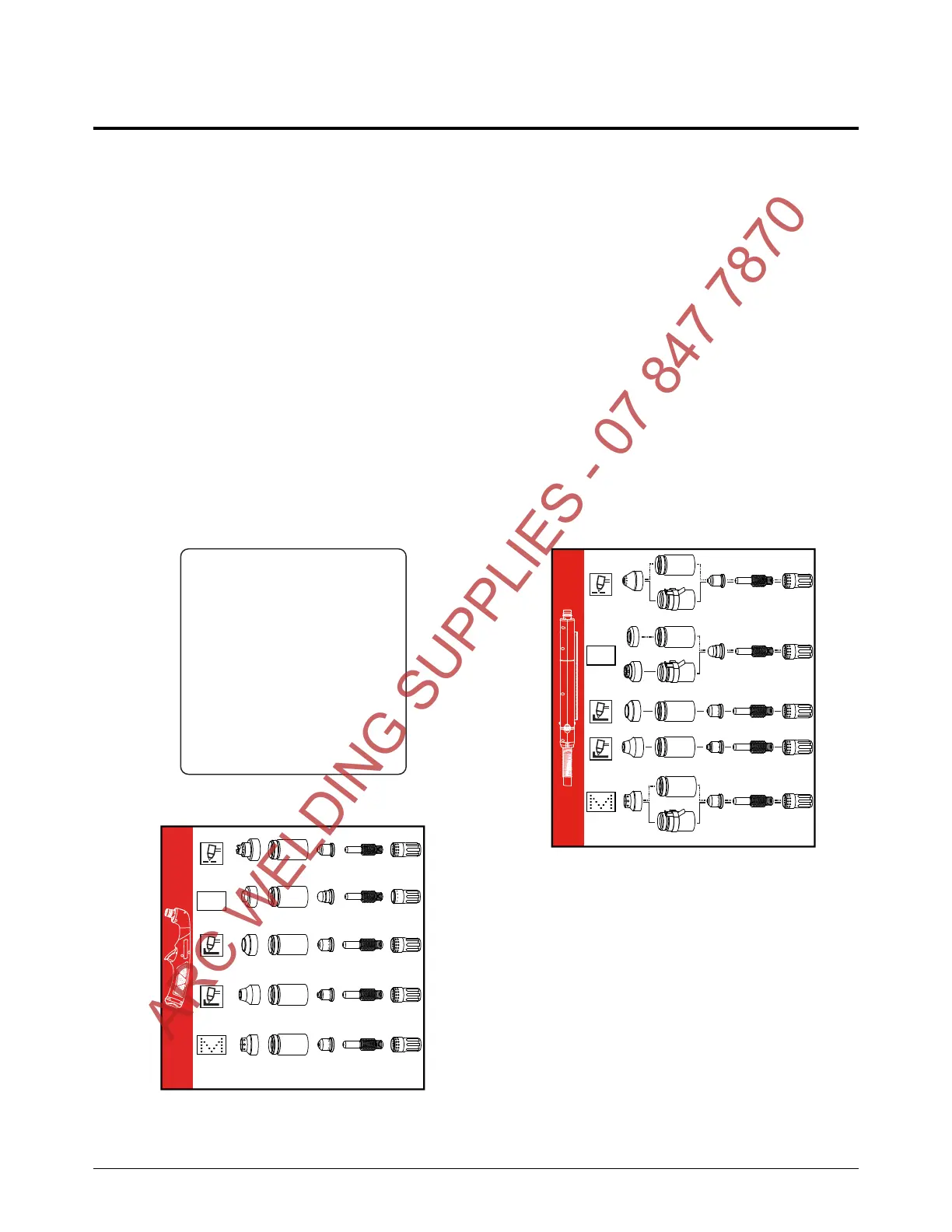

Powermax45 XP Labels
The label kits include:
 Warning labels
 Decals for side panels
 Consumable labels
Consumable labels and fault codes label
The consumable labels and the fault codes label are removable stickers. The fault codes label is
found inside the front cover of the Operator Manual. The consumable labels are included in the
literature package that comes with the system. Place the labels on the side of the power supply or
near your work area for ease of reference.
Kit number Description
428655 Kit: Powermax45 XP labels for 1-phase models
428656 Kit: Powermax45 XP labels for 3-phase models
220854
220857220817
220953
220941 220842
220953
220953
420414 220854
220854420480
420415
420419
220857220842
220857220842
420542
220854
420415 220857220842
220854
220857
220955
220930 220842
220948
FineCut
®
26-45 A
10-25 A
10-25 A
See Operator Manual for details
Fault Codes
0-11-0 Invalid mode input from remote controller
0-11-1 Invalid current input from remote controller
0-11-2 Invalid pressure input from remote controller
0-12-1 Low output gas pressure: alert
0-12-2 High output gas pressure: alert
0-12-3 Output gas pressure unstable: alert
0-13-0 AC input unstable: alert
0-51-0 Start/trigger signal ON at power up
0-60-0 AC input voltage error – phase loss
0-60-1 AC input voltage error – voltage too low
0-60-2 AC input voltage error – voltage too high
0-61-0 AC input unstable: shutdown
Fault codes label
Consumable label – hand torch
420414 220854
220854420480
420415
420419
220857220842
220857220842
420542 220854 420415 220857220842
220854
220854 220857
220947
220818
220931 220930
220941
220842
220842
FineCut
®
26-45 A
10-25 A
10-25 A
Consumable label – machine torch
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
