v While the device is still in its static-protective package, touch it to an unpainted
metal surface on the outside of the server for at least 2 seconds. This drains
static electricity from the package and from your body.
v Remove the device from its package and install it directly into the server without
setting down the device. If it is necessary to set down the device, put it back into
its static-protective package. Do not place the device on the server cover or on a
metal surface.
v Take additional care when handling devices during cold weather. Heating reduces
indoor humidity and increases static electricity.
Returning a device or component
If you are instructed to return a device or component, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to you.
Internal cable routing and connectors

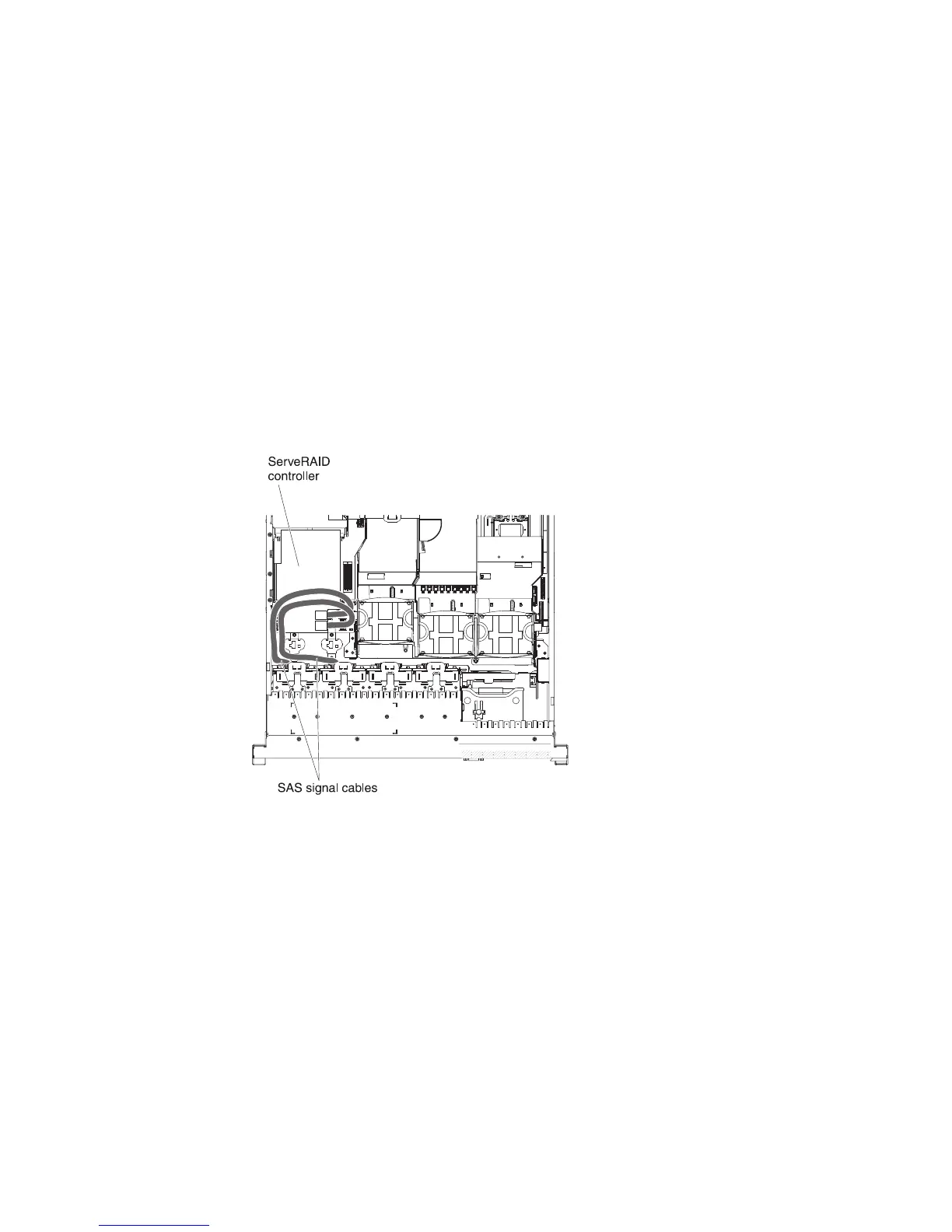

The following illustration shows the internal routing and connectors for the two SAS
signal cables.
The following illustration shows the internal routing and connectors for the
SAS/SATA signal and power cables.
172 IBM System x3650 M3 Types 4255, 7945, and 7949: Problem Determination and Service Guide
