System board

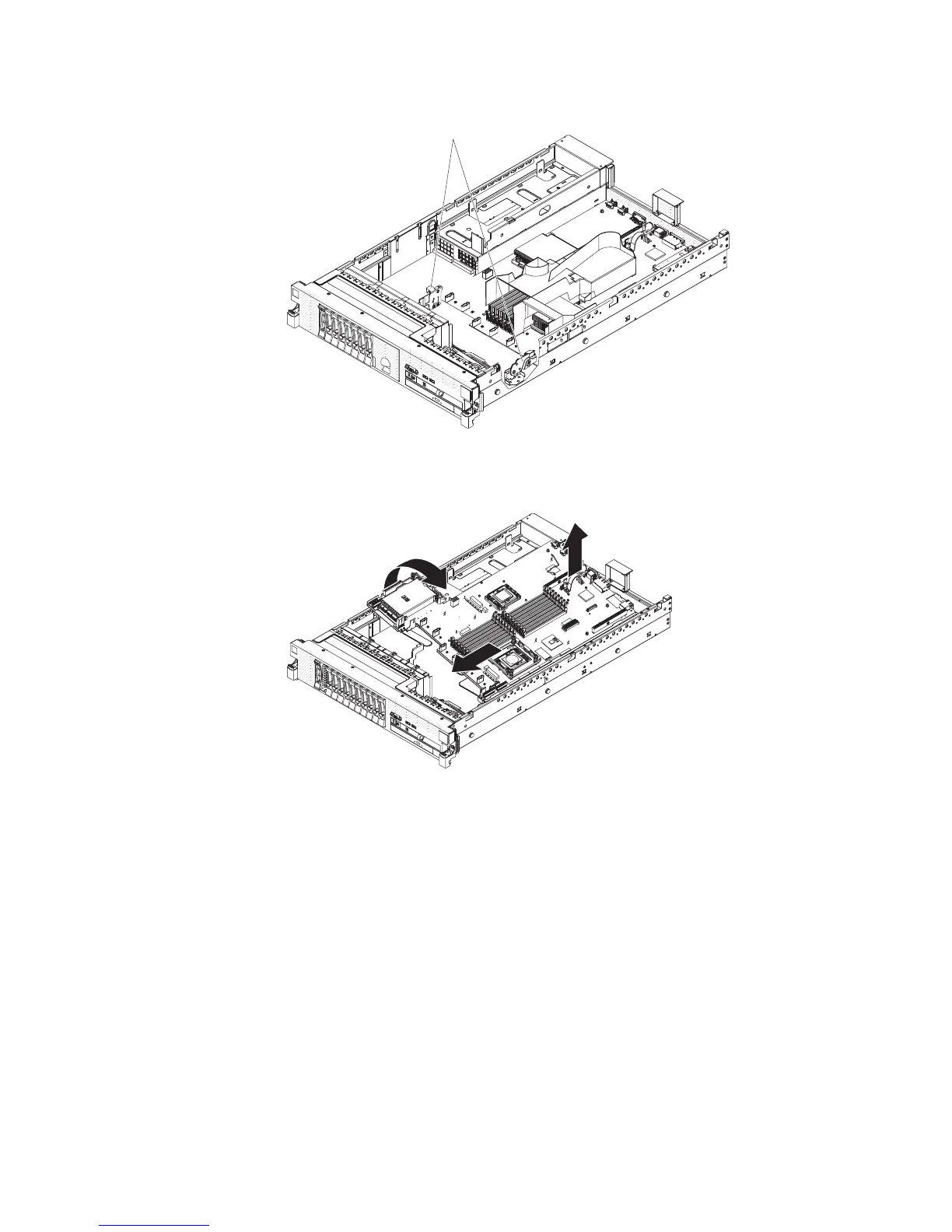

release latches
14. Slide the system board forward and tilt it away from the power supplies. Using
the two lift handles on the system board, pull the system board out of the
server.
Attention: When you pull the system board out of the server, be careful not
to damage any surrounding components and not to bend the pin inside the
microprocessor socket.
15. If you are instructed to return the system board, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
16. Remove the socket covers from the microprocessor sockets on the new
system board and place them on the microprocessor sockets of the system
board you are removing.
Attention: Make sure to place the socket covers for the microprocessor
sockets on the system board before you return the old system board.
Installing the system board
Notes:
1. When you reassemble the components in the server, be sure to route all cables
carefully so that they are not exposed to excessive pressure (see “Internal cable
routing and connectors” on page 172).
248 IBM System x3650 M3 Types 4255, 7945, and 7949: Problem Determination and Service Guide
