IBM System x3650 M3 4255 Service Guide

v Tape-enabled server model

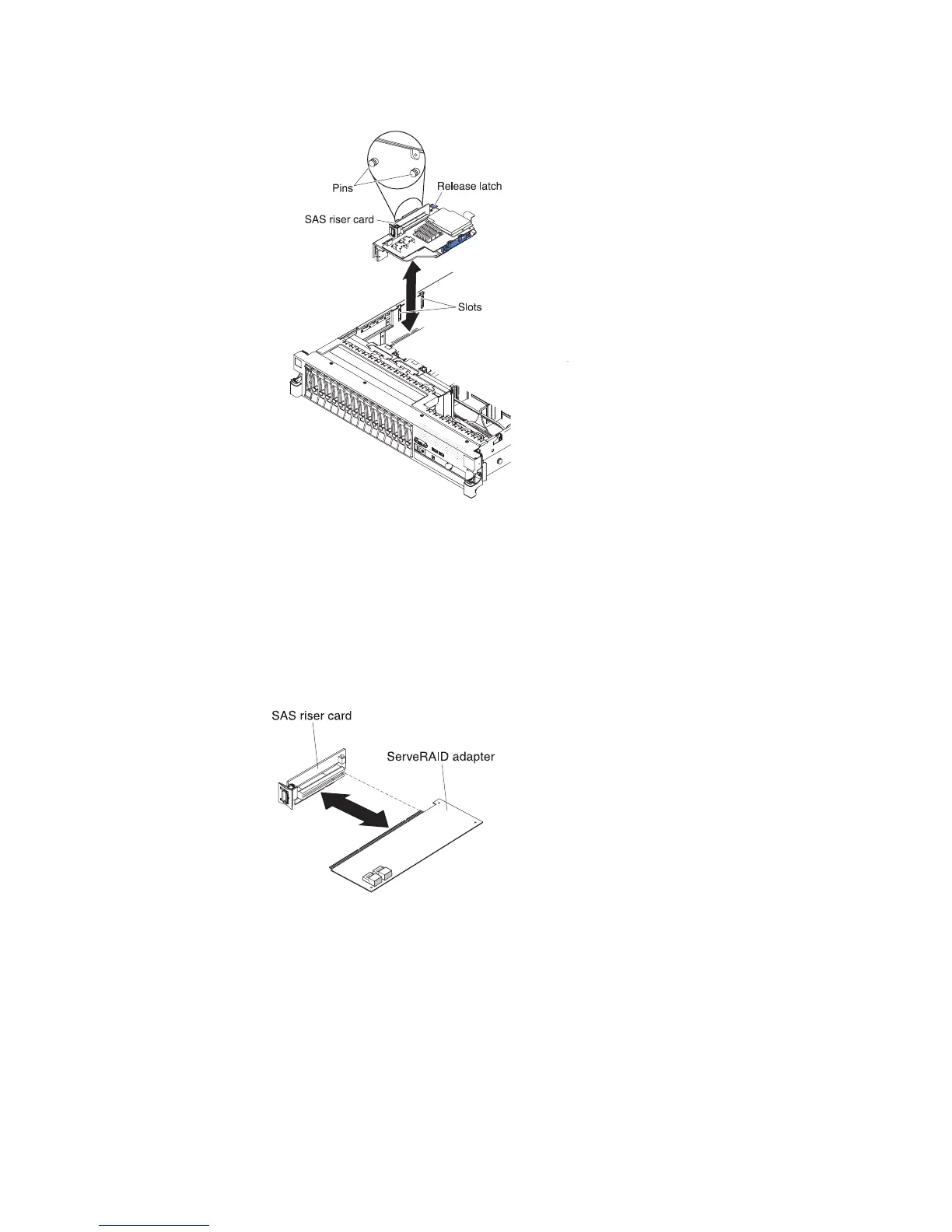

1. Align the pins on the backside of the riser with the slots on the side of the
chassis.
2. Align the SAS riser card of the SAS controller assembly with the SAS
riser-card connector on the system board.
3. Press the SAS controller assembly into place; make sure that the SAS riser
card is firmly seated and that the release latch and retention latch holds the
assembly securely.
Removing a ServeRAID SAS controller from the SAS riser card
Note: For brevity, in this documentation the ServeRAID SAS controller is often
referred to simply as the SAS controller.
A ServeRAID SAS controller is installed in a dedicated slot on the SAS riser card.
Important: If you have installed a 8-disk-drive optional expansion device in a
16-drive-capable server, the SAS controller is installed in a PCI riser-card assembly
and is installed and removed the same way as any other PCI adapter. Do not use
the instructions in this topic; use the instructions in “Removing a PCI adapter from a
PCI riser-card assembly” on page 190.
Chapter 5. Removing and replacing server components 201
