To remove a USB hypervisor memory key from a SAS riser card, complete the
following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 169.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Slide the server out of the rack.
4. Remove the cover (see “Removing the cover” on page 177).
5. Locate the SAS riser-card assembly, which is near the left-front corner of the
server.

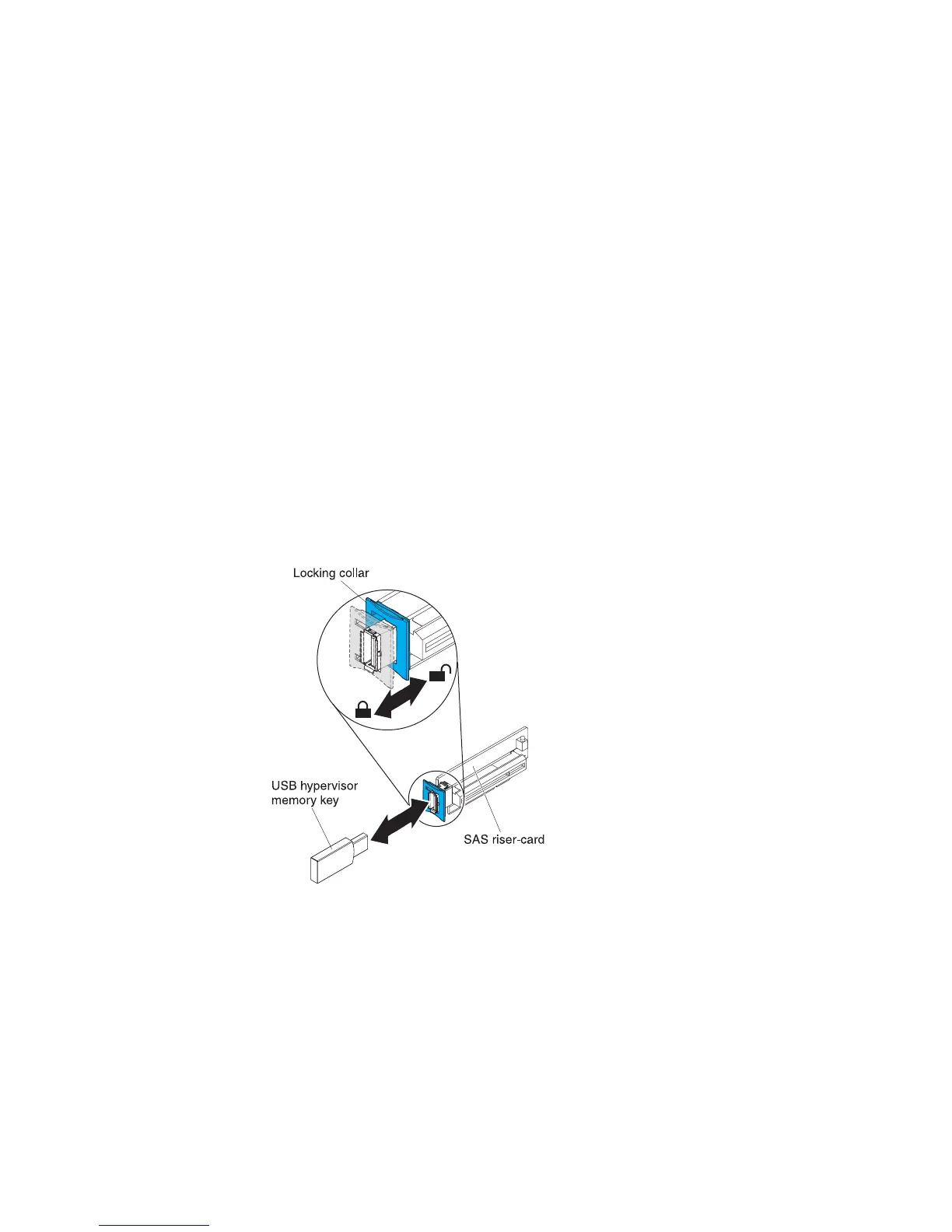

6. Push the blue locking collar on the USB hypervisor connector back toward the
SAS riser card to unlock it from the connector.
7. Pull the hypervisor memory key out of the USB hypervisor connector.
8. If you are instructed to return the hypervisor memory key, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Note: You must configure the server not to look for the hypervisor USB drive. See
“Configuring the server” on page 253 for information about disabling hypervisor
support.
Installing a USB hypervisor memory key
To install a USB hypervisor memory key in the SAS riser card, complete the
following steps:
1. Locate the SAS riser-card assembly, which is near the left-front corner of the
server.
2. Push the blue locking collar on the USB hypervisor connector on the SAS riser
card toward the SAS riser card (the unlocked position).
3. Insert the hypervisor memory key into the dedicated USB connector.
4. Slide the blue locking collar on the USB hypervisor connector forward, toward
the hypervisor memory key as far as it will go, to secure the hypervisor memory
key in position.
5. Install the server cover (see “Installing the cover” on page 178).
6. Slide the server into the rack.
Chapter 5. Removing and replacing server components 187
