5. Grasp the riser-card assembly at the front tab and rear edge and lift it to
remove it from the server. Place the riser-card assembly on a flat,
static-protective surface.
Installing a PCI riser-card assembly
The server provides two PCI riser-card slots on the system board. A PCI riser
assembly with a bracket is installed in slot 2. The following information indicates the
riser-card slots:
v Standard models of the server come with one PCI Express riser-card assembly
installed. If you want to replace them with PCI-X riser-card assemblies, you must
order the PCI-X riser-card assembly option, which includes the bracket.
v A PCI Express riser-card assembly has a black connector and supports PCI
Express adapters, and a PCI-X riser-card assembly has a white (light in color)
connector and supports PCI-X adapters.
v PCI riser slot 1 (the farthest slot from the power supplies). This slot supports only
low-profile adapters.
v PCI riser slot 2 (the closest slot to the power supplies). You must install a PCI
riser-card assembly in slot 2 even if you do not install an adapter.
v Microprocessor 2, aux power, and PCI riser-card assembly 2 share the same
power channel that is limited to 230 W.

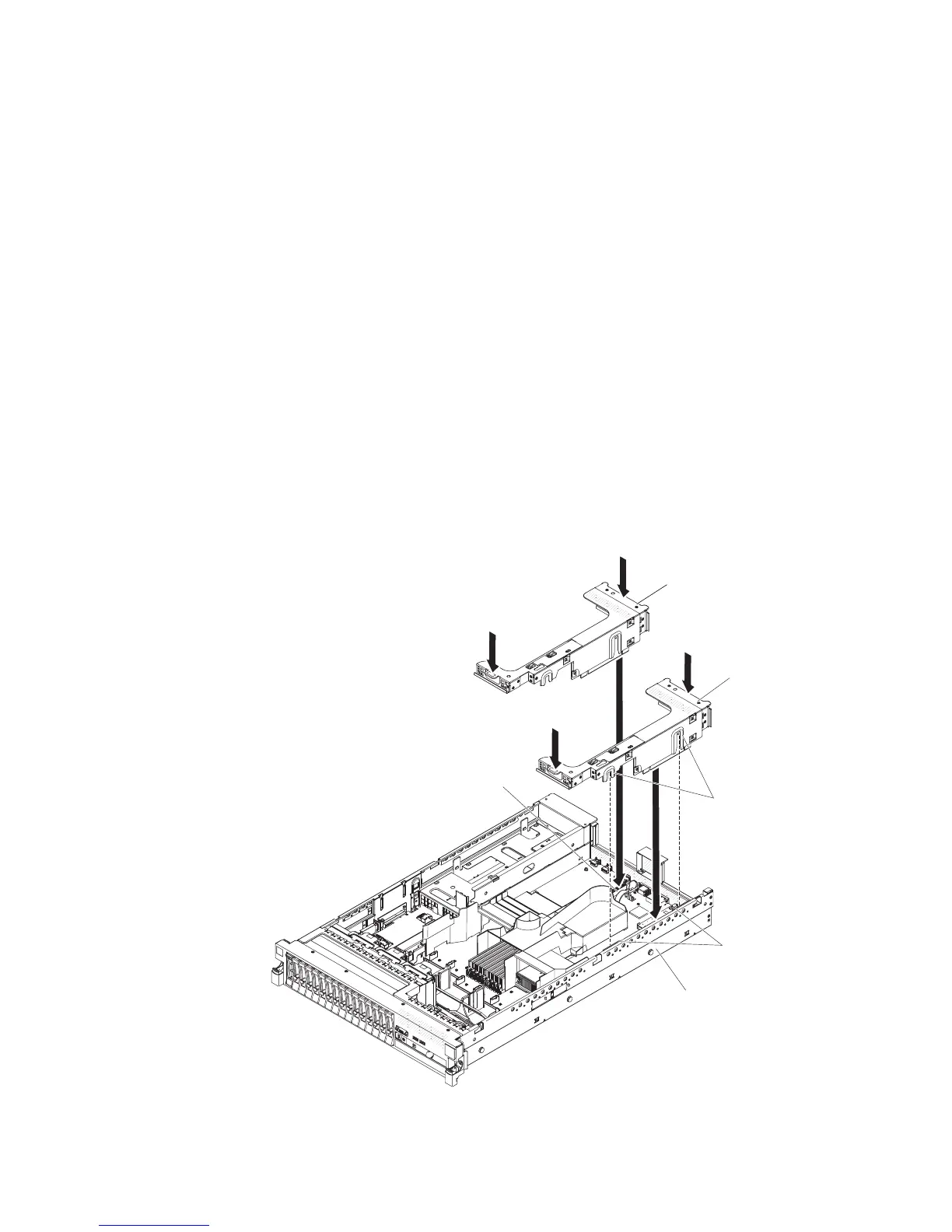

To install a riser-card assembly, complete the following steps.
PCI riser-card
assembly 2
PCI riser-card
assembly 1
PCI riser-card
assembly 2
PCI riser-card
assembly 1
Alignment
brackets
Alignment
slots
PCI riser
connector 1
PCI riser
connector 2
Chapter 5. Removing and replacing server components 189
