Icom IC-M802 Instruction Manual

• Available channel groups and channels
*
1
[GRP] changes in 20 channels steps. *
2
SITOR use— no group separation.
I
QUICK REFERENCE
2001 NEW

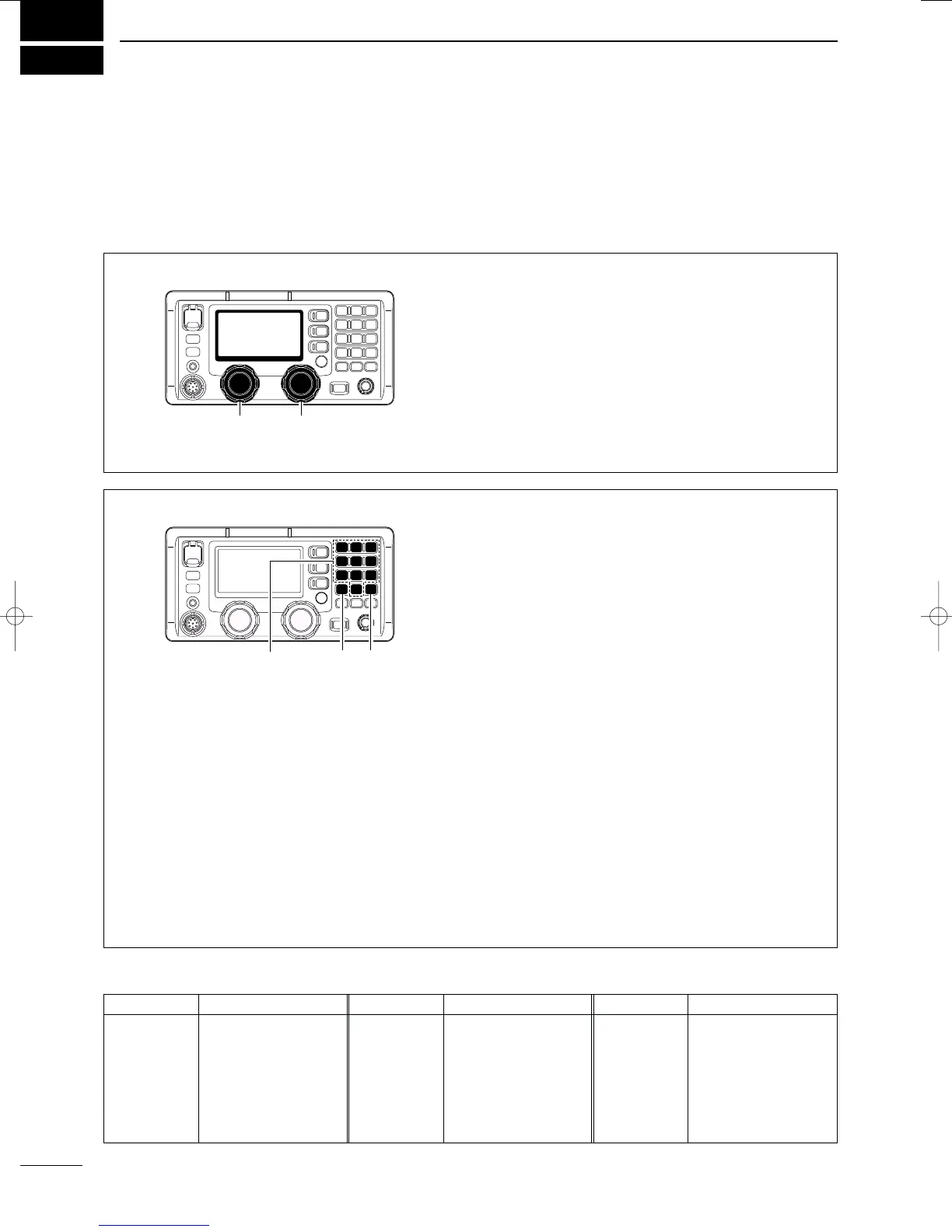

■ How to set a Channel/Group
The IC-M802 has up to 160 user-programmable, 242
ITU SSB duplex, 72 ITU SSB simplex and 662 ITU
FSK duplex channels.
DD
Using the group and channel selectors
q Rotate [GRP] to select the desired group.
• Available groups are shown in the list below.
•During user-programmable channel group use, the
channels change in 20-channel steps. See details on
p. 8.
Example; When starting the user-programmable Ch. 1.
1⇔21⇔41…141⇔401⇔4-1⇔601……25-1…1
w Rotate [CH] to select the desired channel.
• Available channels are shown in the list below.
•Pushing [Y]/[Z] on the microphone also selects a
channel.
[CH][GRP]
Channel No. Description Channel No. Description Channel No. Description
1 to 160 User Ch.*
1
1201 to 1241 12 MHz ITU duplex Ch. 22-1 to 22-9 22 MHz ITU simplex Ch.
401 to 427 4 MHz ITU duplex Ch. 12-1 to 12-9 12 MHz ITU simplex Ch. 2501 to 2510 25 MHz ITU duplex Ch.
4-1 to 4-9 4 MHz ITU simplex Ch. 1601 to 1656 16 MHz ITU duplex Ch. 25-1 to 25-9 25 MHz ITU simplex Ch.
601 to 608 6 MHz ITU duplex Ch. 16-1 to 16-9 16 MHz ITU simplex Ch. C1-1 to C1-21 C1 channels
6-1 to 6-9 6 MHz ITU simplex Ch. 1801 to 1815 18 MHz ITU duplex Ch. C2-1 to C2-31 C2 channels
801 to 832 8 MHz ITU duplex Ch. 18-1 to 18-9 18 MHz ITU simplex Ch. 4001 to 25040 ITU FSK duplex Ch.*
2
8-1 to 8-9 8 MHz ITU simplex Ch. 2201 to 2253 22 MHz ITU duplex Ch.
DD
Using the keypad
• When selecting an user-programmable channel
➥ Push the appropriate numeral keys to set the 1,
2 or 3-digit channel number, then push [ENT]
•Pushing [CE] clears input digits and retrieves the
channel.
Example; When selecting Ch. 1.
Push [1 NB ] then push [ENT].
Example; When selecting Ch. 35.
Push [3 SCAN ], [5 AGC
×
] then push [ENT].
Example; When selecting Ch. 128.
Push [1 NB ], [2 SQL ], [8 Mid] then push [ENT].
• When selecting an ITU duplex channel
➥ Push the appropriate numeral keys to set the 3,
4 or 5-digit channel number, then push [ENT]
•Pushing [CE] clears input digits and retrieves the
channel.
Example; When selecting Ch. 401.
Push [4 SP
×
], [0 DIM ], [1 NB ] then push [ENT].
Example; When selecting Ch. 2505.
Push [2 SQL ], [5 AGC
×
], [0 DIM ], [5 AGC
×
] then push
[ENT].
• When selecting an ITU simplex channel
➥ Push the appropriate numeral keys to set the 5
or 6-digit channel number, then push [ENT]
• Push [0 DIM ] 3 times to enter “– (dash).”
•Pushing [CE] clears input digits and retrieves the
channel.
Example; When selecting Ch. 4-1.
Push [4
SP
×
], [0
DIM ], [0 DIM ], [0 DIM ], [1 NB ] then
push [ENT].
- After pushing [0
DIM ] 3 times, “–” appears.
Example; When selecting Ch. 25-2.
Push [2
SQL ], [5 AGC
×
], [0
DIM ], [0 DIM ], [0 DIM ],
[2 SQL ] then push [ENT].
- After pushing [0 DIM ] 3 times, “–” appears.
Numeral keys [ENT][CE]
IC-M802_USA.qxd 02.5.30 11:39 Page I
