CONNECTION AND INSTALLATION
2001 NEW
12
■ Supplied accessories
The following accessories are supplied with IC-M802.
q Microphone (HM-135) …………………………… 1
w External speaker (SP-24) ………………………… 1
e Mounting bracket kit for main unit …………… 1 set
r Mounting bracket kit for remote controller (MB-81)
…………………………………………………… 1 set
t Mounting bracket kit for speaker (MB-82) … 1 set
y DC power cable (OPC-1107A) …………………… 1
u Microphone hanger kit ………………………… 1 set
i Cable tie set …………………………………… 1 set
o Spare fuses (FGB 30 A)…………………………… 1
!0 Spare fuses (FGB 5 A) …………………………… 2
!1 Remote control cable (OPC-1106) ……………… 1
!2 Tuner connector kit …………………………… 1 set
!3 Accessory connector (8-pin DIN) …………… 1 set

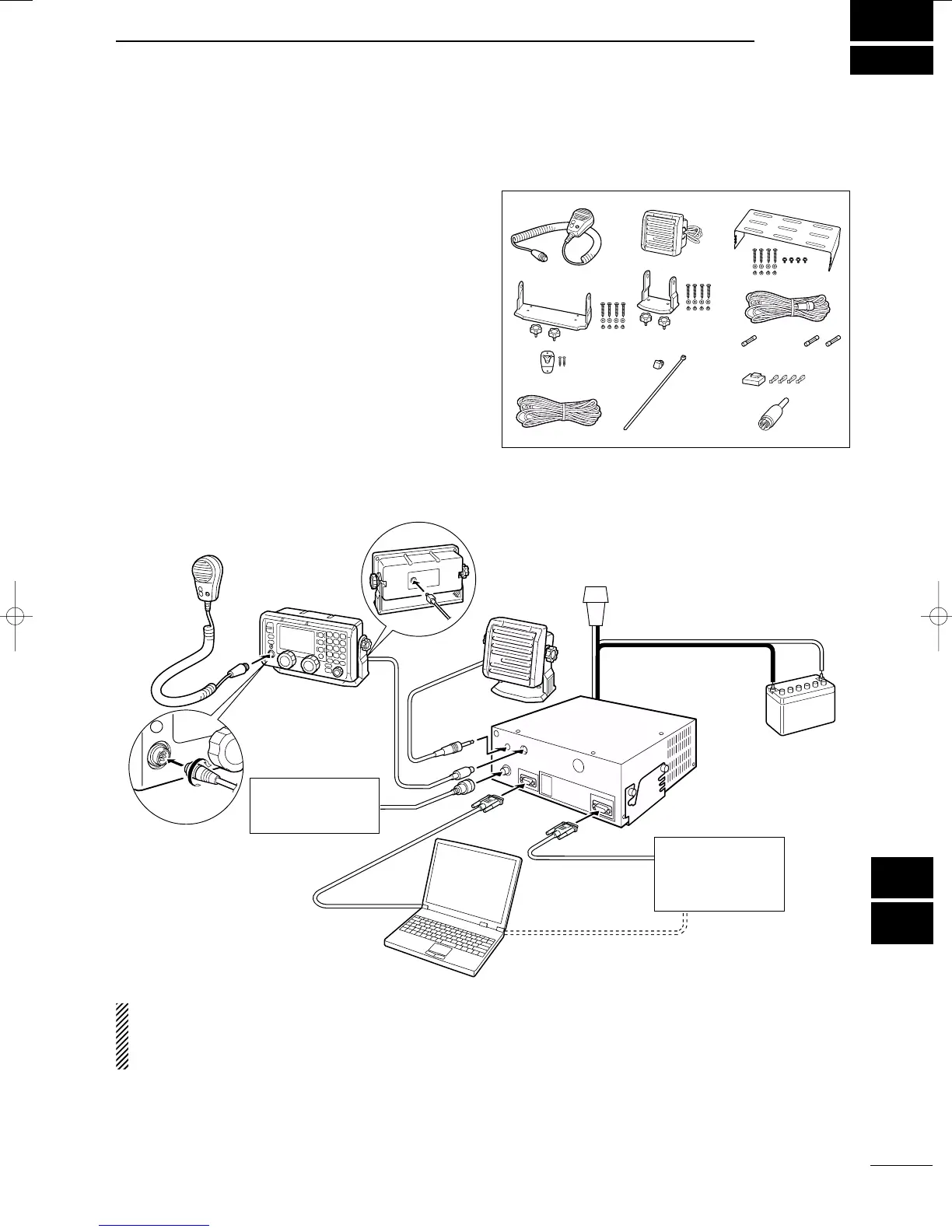

■ Front panel connections
q
r
w
t
e
y
o!0
u
!1
i
!2
!3
Position and
UTC time data
(NMEA0183)
E-mail modem,
NBDP (Narrow Band
Direct Printing), or
FAX systems
12 V battery
Personal
computer
(when e-mail modem is connected)
CAUTION: Any connected external unit, such as
PC, e-mail modem, etc., must be properly
grounded. We suggest using a wide copper strap.
(pgs. 55, 63–65)
➥ When a PC is connected, the PC being operated at
any given time has priority.
➥ When a PC is connected, the controller not being
operated is inhibited for a specified time after the PC
is operated. This time can be programmed by your
dealer. The default inhibit time is 5 sec.
➥ When a PC is connected, operating the PC auto-
matically updates settings on the controller.
