■ Ground connection
The transceiver and antenna tuner MUST have an
adequate RF ground connection. Otherwise, the over-
all efficiency of the transceiver and antenna tuner in-
stallation will be reduced. Electrolysis, electrical
shocks and interference from other equipment could
also occur.
For best results, use 50 or 75 mm (2 or 3 inches) wide
copper strap and make the connection as short as
possible. Ground the transceiver and antenna tuner
to one ground point, otherwise the voltage difference
(in RF level) between 2 ground points may cause
electrolysis.
R WARNING— When grounding to a metal hull
Use Zinc anodes to protect the hull from electroly-
sis.
Ask your technical dealer, installer or refer to a
technical book, etc., for RF grounding details.
CAUTION: NEVER connect the transceiver to a
“positive-grounded ship,” otherwise the transceiver
will not function.

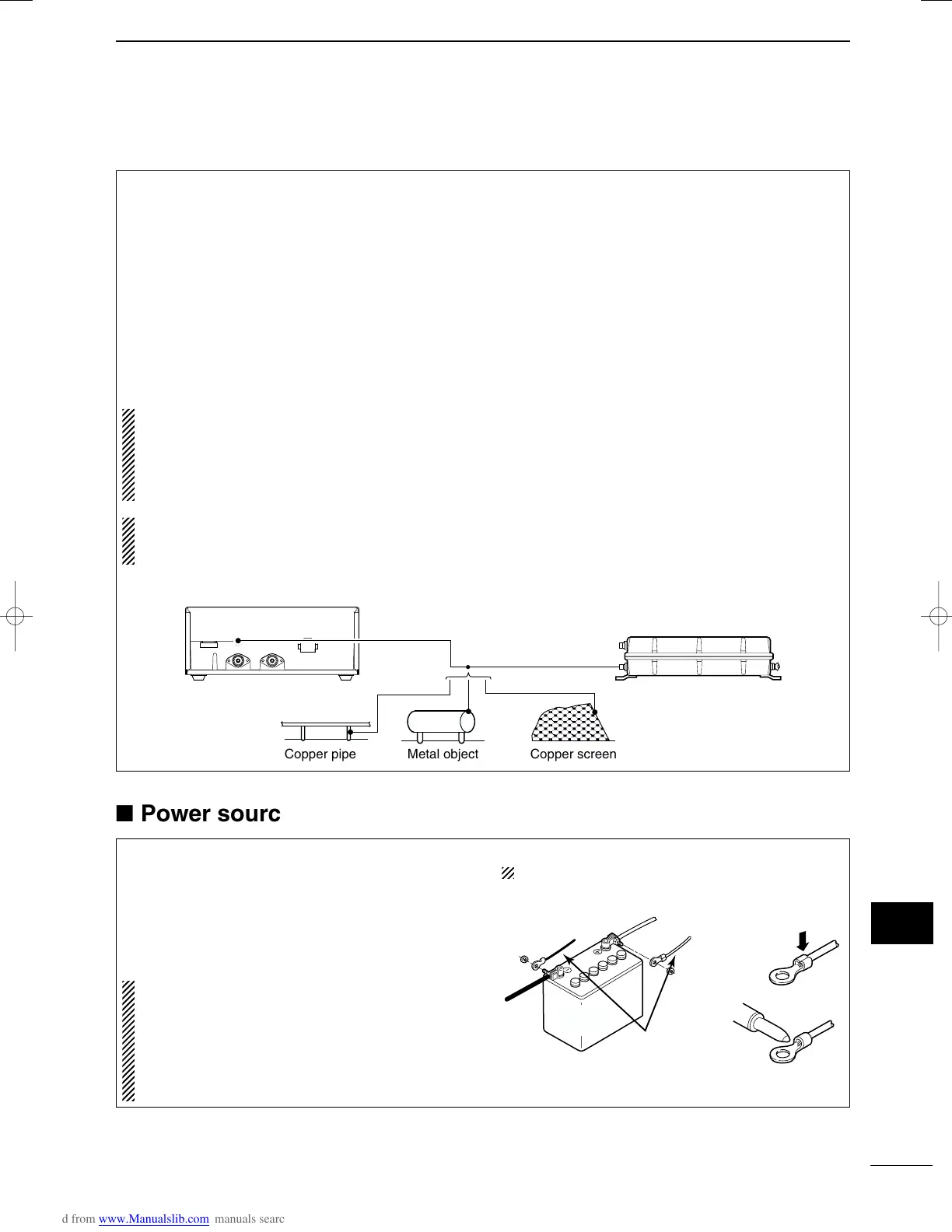

Ground system example
Best ground points
• External ground plate
• Copper screen
• Copper foil
Acceptable ground point
• Stainless steel stanchion
• Through mast
• Through hull
• Metal water tank
Undesirable ground points
• Engine block
• Ship’s DC battery ground
Un-usable ground points
(these connections may cause an explosion or electrical
shock)
• Gas or electrical pipe
• Fuel tank or oil-catch pan
See antenna and grounding consideration section
(pgs. 63–65) for more details.
;;;;;;
;;;;;;
;;;;;;
;;;;;;
yyyyyy
yyyyyy
yyyyyy
yyyyyy
Copper pipe Metal object Copper screen
■ Power source
The transceiver requires a regulated DC power of
13.6 V and at least 30 A. There are 2 ways to supply
power:
•Direct connection to a 12 V battery in your ship
through the supplied DC power cable.
•Use PS-60
DC POWER SUPPLY
to connect to an AC
outlet.
CATION: The supplied DC power cable MUST be
used to provide power to the transceiver. AVOID
exceeding the 3 m (10 ft.) length of the DC power
cable. When it is necessary to make a run of over
3 m, use #6 or similar weight cable instead of the
supplied DC power cable for a maximum of 6 m
(20 ft.).
DC power cable connection
NOTE: Use terminals for the cable connection.
12 V
battery
Supplied
DC power cable
+ red
_ black
Crimp
Solder
