A.12.10 Format Control Screen
The parameters are set in two screens; Format Control 1 and Format Control 2. By
using the Back and More buttons, you can switch between the Format Control screens.
A.12.10.1 Format Control 1

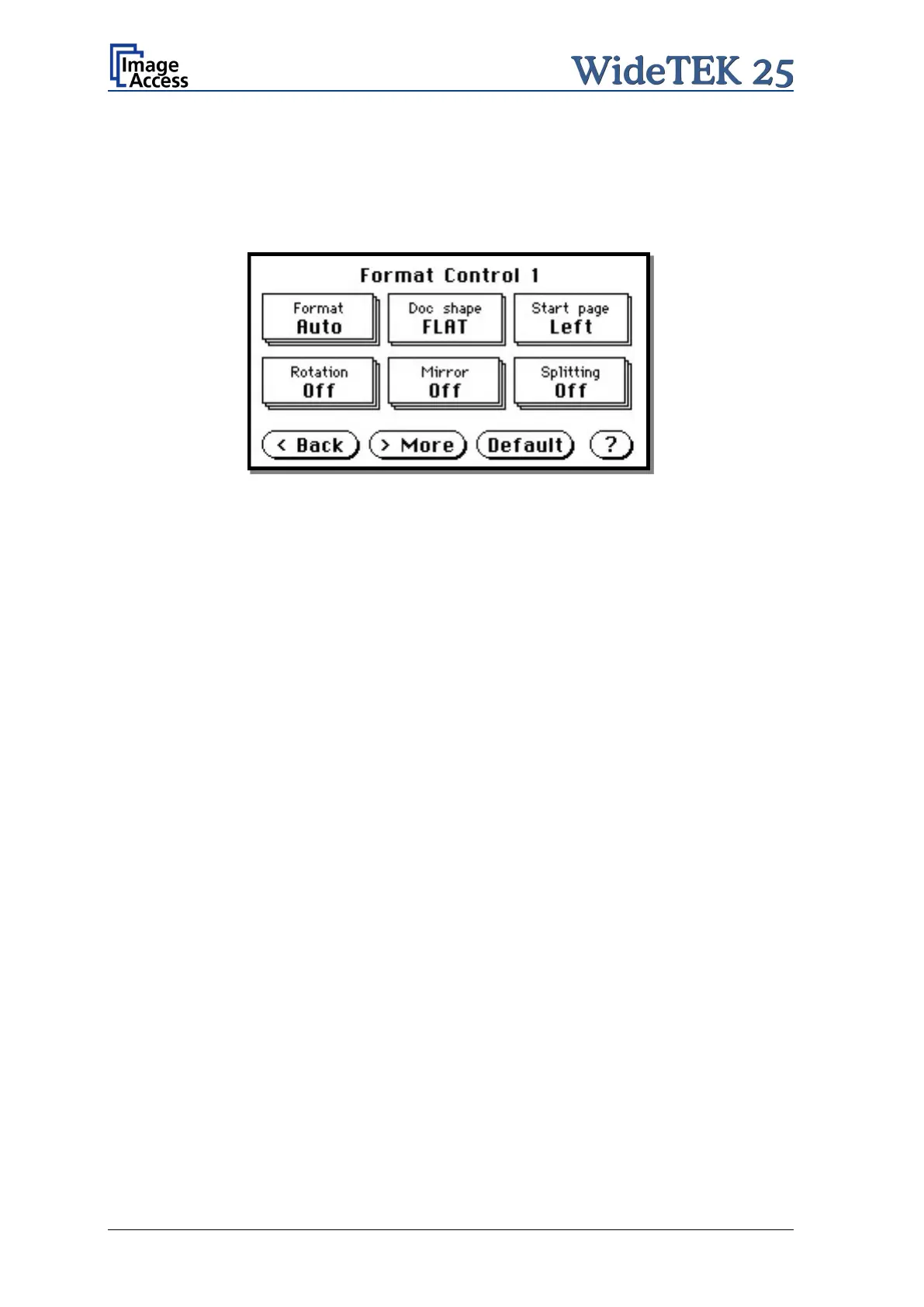

Picture 34: Format Control 1
A.12.10.1.1 Format
This control specifies the format of the document. In most cases the setting Auto should
be selected.
The format list includes the well-known DIN A formats as well as US ANSI formats, e.g.
Letter or US C. Some formats are specified with an additional L(andscape) or P(ortrait).
A.12.10.1.2 Doc shape
Defines the documents structure. Flat is currently the only available setting.
A.12.10.1.3 Start page
This defines the start page if Splitting is activated.
A.12.10.1.4 Rotation
The value set here defines the rotation of the image in a clockwise direction after
scanning.
A.12.10.1.5 Mirror
This control activates the horizontal mirroring of the image.
It can be useful if scanning a transparency or a blueprint from the back side.
A.12.10.1.6 Splitting
The following options are valid:
• Left: The image is taken from the left side of the specified area.
• Right: The image is taken from the right side.
• Auto: Divides the specified scan area symmetrically into two sides and sends the
images consecutively. The second image will be sent without scanning the
document again.
The start is defined in Start Page (see chapter A.12.10.1.3).
