12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
10 Order Number: G91928004US
— Table 2 lists problems related to the user interface and remote agent.
— See “Installation Checklist” on page 6.
— For more information, visit www.intel.com.
• Text in bold font indicates user interface elements such as a menu items, buttons,
check boxes, or column headings. For example:
— Click the Start button, point to Programs, point to Accessories, and then
click Command Prompt.
— Under Notification Options, select the Warning Alarms check box.
• Text in
Courier font indicates a file name, directory path, or command line text.
For example:
— To return to the root directory from anywhere in the file structure:
Type
cd /root and press ENTER.
— Enter the following command:
sh ./install.bin
• Key names and key strokes are indicated with UPPERCASE:
— Press CTRL+P.
— Press the UP ARROW key.
• Text in italics indicates terms, emphasis, variables, or document titles. For
example:
— For a complete listing of license agreements, refer to the Intel Software End
User License Agreement.
— What are shortcut keys?
— To enter the date type mm/dd/yyyy (where mm is the month, dd is the day,
and yyyy is the year).
• Topic titles between quotation marks identify related topics either within this
manual or in the online help throughout this document.
1.4 Laser Safety Information
This product may use Class 1 laser optical transceivers to communicate over the fiber
optic conductors. The U.S. Department of Health and Human Services (DHHS) does not
consider Class 1 lasers to be hazardous. The International Electrotechnical Commission
(IEC) 825 Laser Safety Standard requires labeling in English, German, Finnish, and
French stating that the product uses Class 1 lasers. Because it is impractical to label the
transceivers, the following label is provided in this manual.

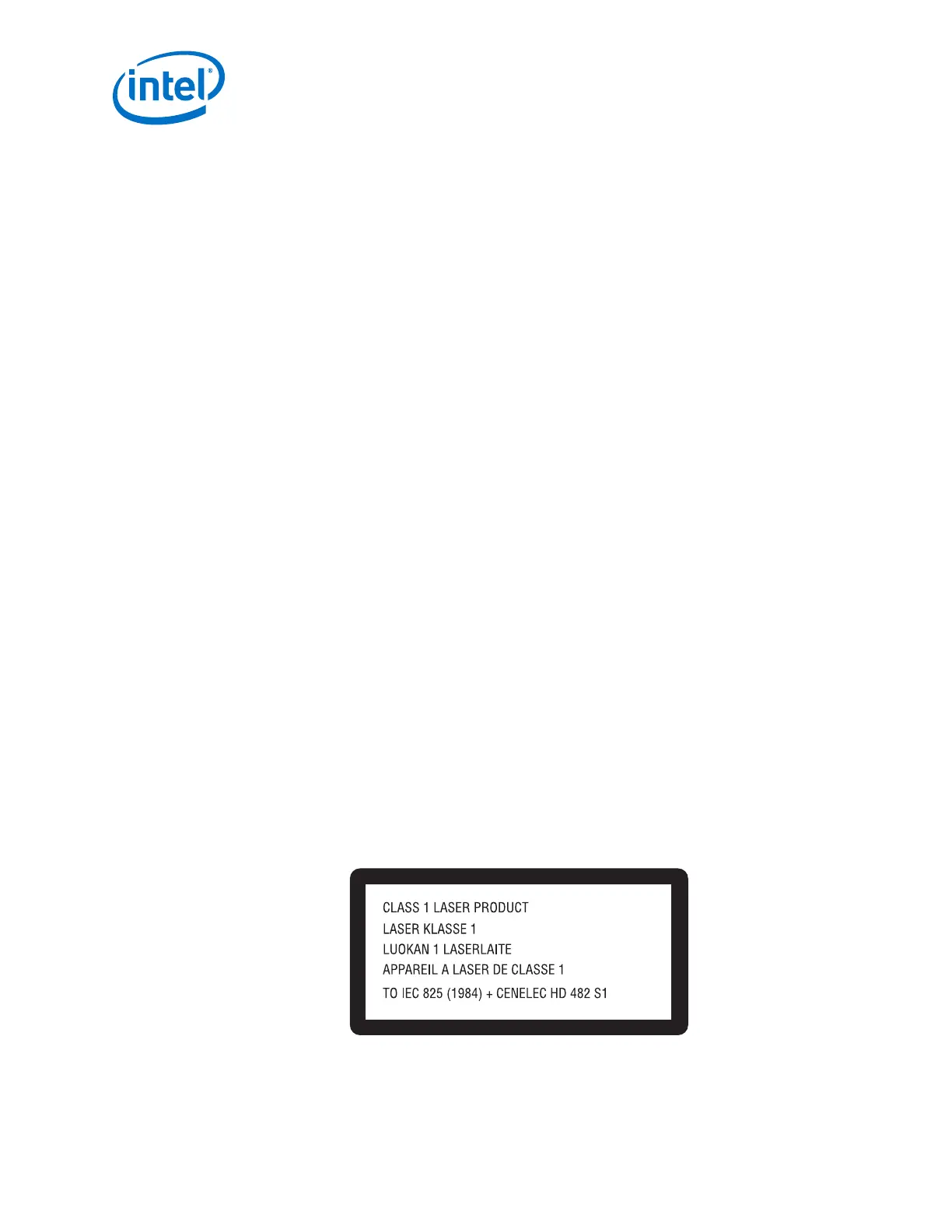

Figure 1. Laser Safety Information
