Intel True Scale Fabric Switches 12200 User Manual

True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 39
12000 Series Switches
For improved stability, orient the clip nuts as shown (i.e., orient the flanges
horizontally):
2. Attach four (4) mounting brackets to the support shelf as shown in Figure 33. Align
the brackets with "B" marks on a support shelf and fasten with six (6) M6 HEX
screws per bracket. Use a HEX socket wrench to tighten the screws. Torque the
screws to 120in-lb.
3. Attach the support bracket to the support shelf and fasten with seven (7) #10-32
flat head screws. Torque screws to 30in-lb.

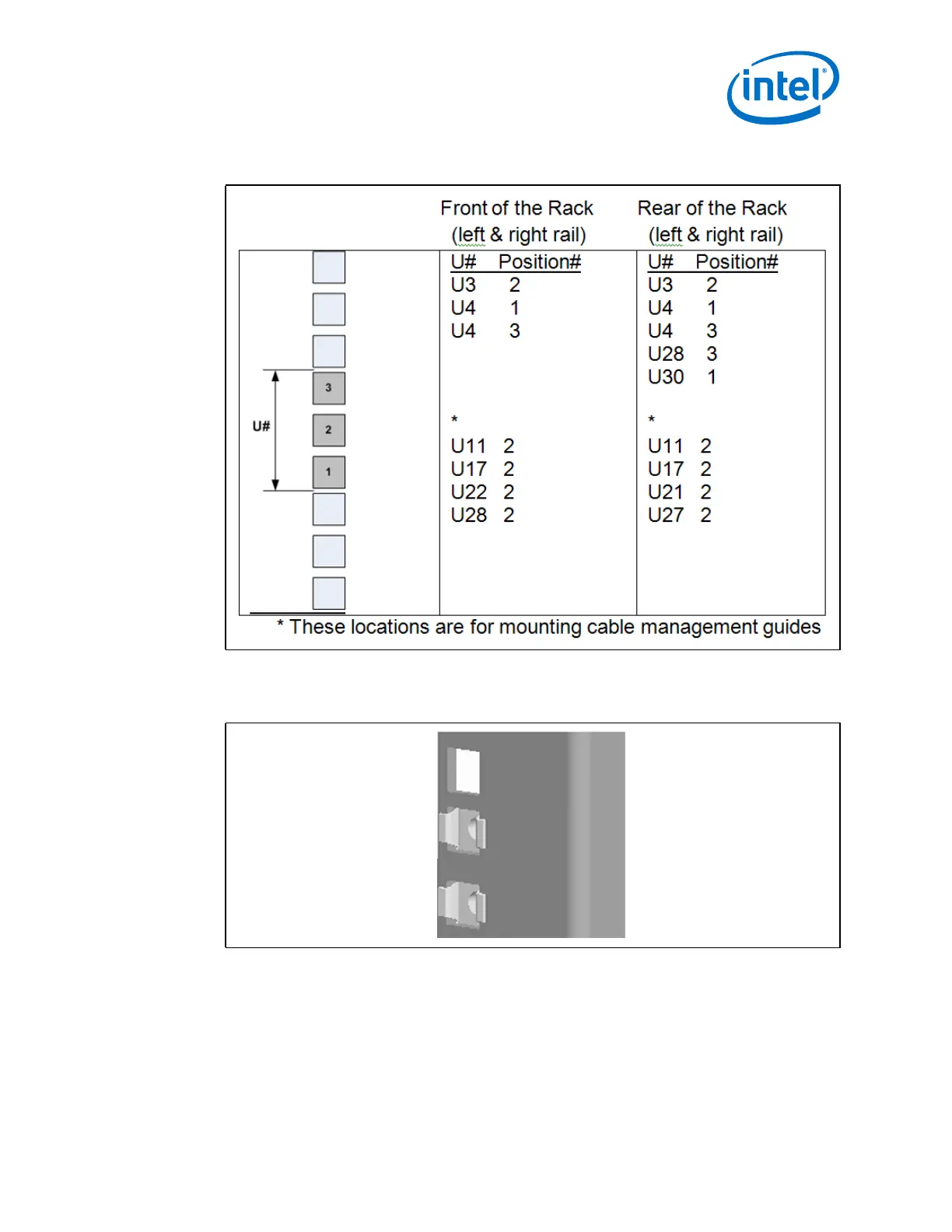

Figure 31. Clip Nut Installation
Figure 32. Clip Nut Orientation
