Intel True Scale Fabric Switches 12200 User Manual

True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 101
12000 Series Switches
2. Carefully pull the module out of the chassis.
E.3.3.2 Replacement Procedures
1. Slide the module straight into the open slot until it engages with the backplane
connector.
2. Push the arms up until they lock in place.
3. Make sure the module is operating and the Status LED is green.
E.3.4 Spine Module Replacement
FRU part numbers:
• Single Spine Module: 12800SPSG01
• Double Spine Module: 12800SPDB01
E.3.4.1 Removal Procedures
1. Pull the release arms out until the spine module disengages from the backplane
connector.

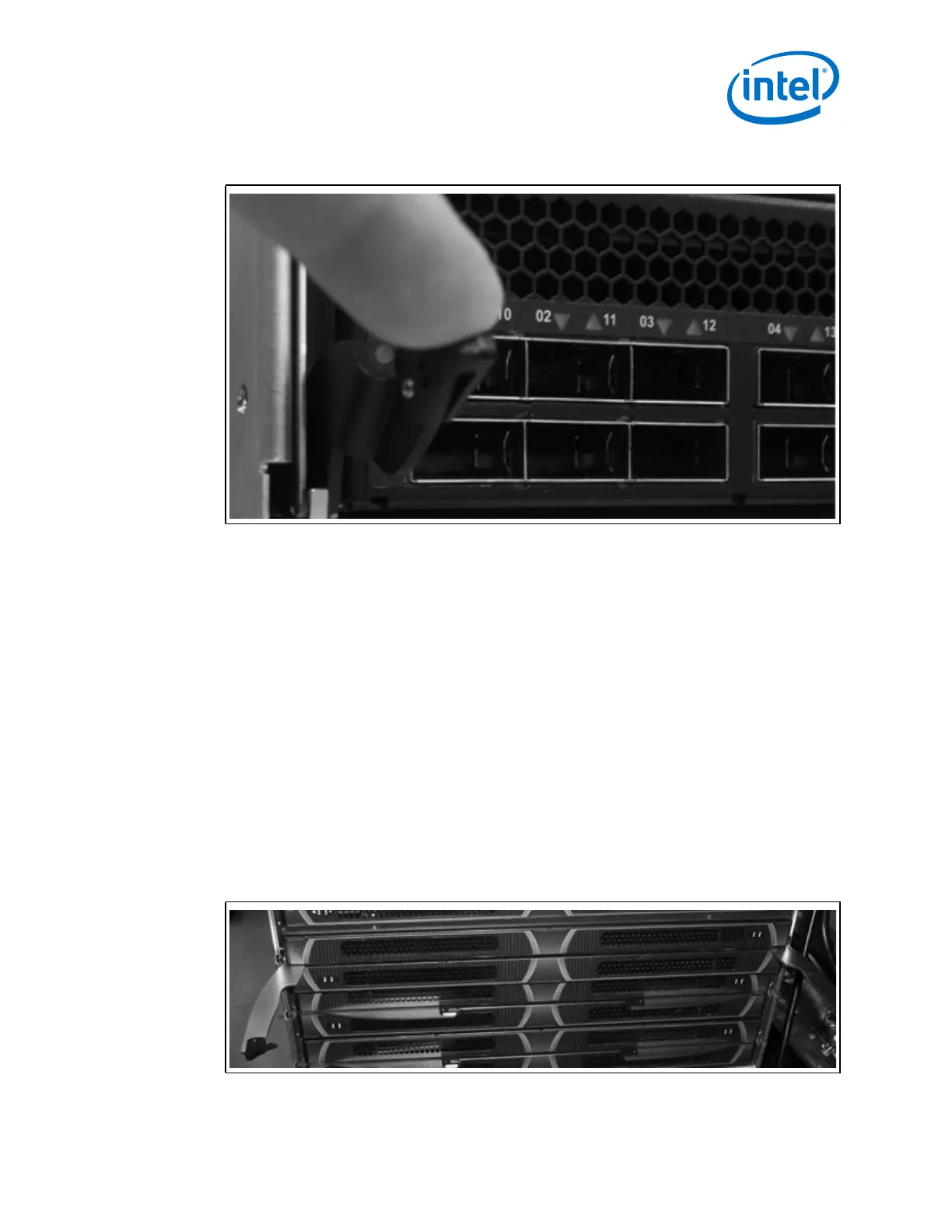

Figure 75. 12800 Leaf Removal
Figure 76. 12800 Spine Removal
