Intel True Scale Fabric Switches 12200 User Manual

12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
24 Order Number: G91928004US
• M6 Mounting Screws
• M6 Clip Nuts
2.5.2 Installation Tasks
1. If applicable, remove the doors of the rack.
2. Install the clip nuts Install M6 clip nuts in the following locations on EIA rails:
For improved stability, orient the clip nuts as shown (i.e., orient the flanges
horizontally):
Note: It is recommended that 12800-120 be installed into the rack at 5U or 6U location. This
locates the chassis approximately 12" from the floor and allows the chassis to be
moved onto the support rails by sliding off of the pallet.
3. Install support rails in the rack. Fasten with two (2) M6 screws per EIA rail to pre-
installed clip nuts and torque to 30 in-lb.

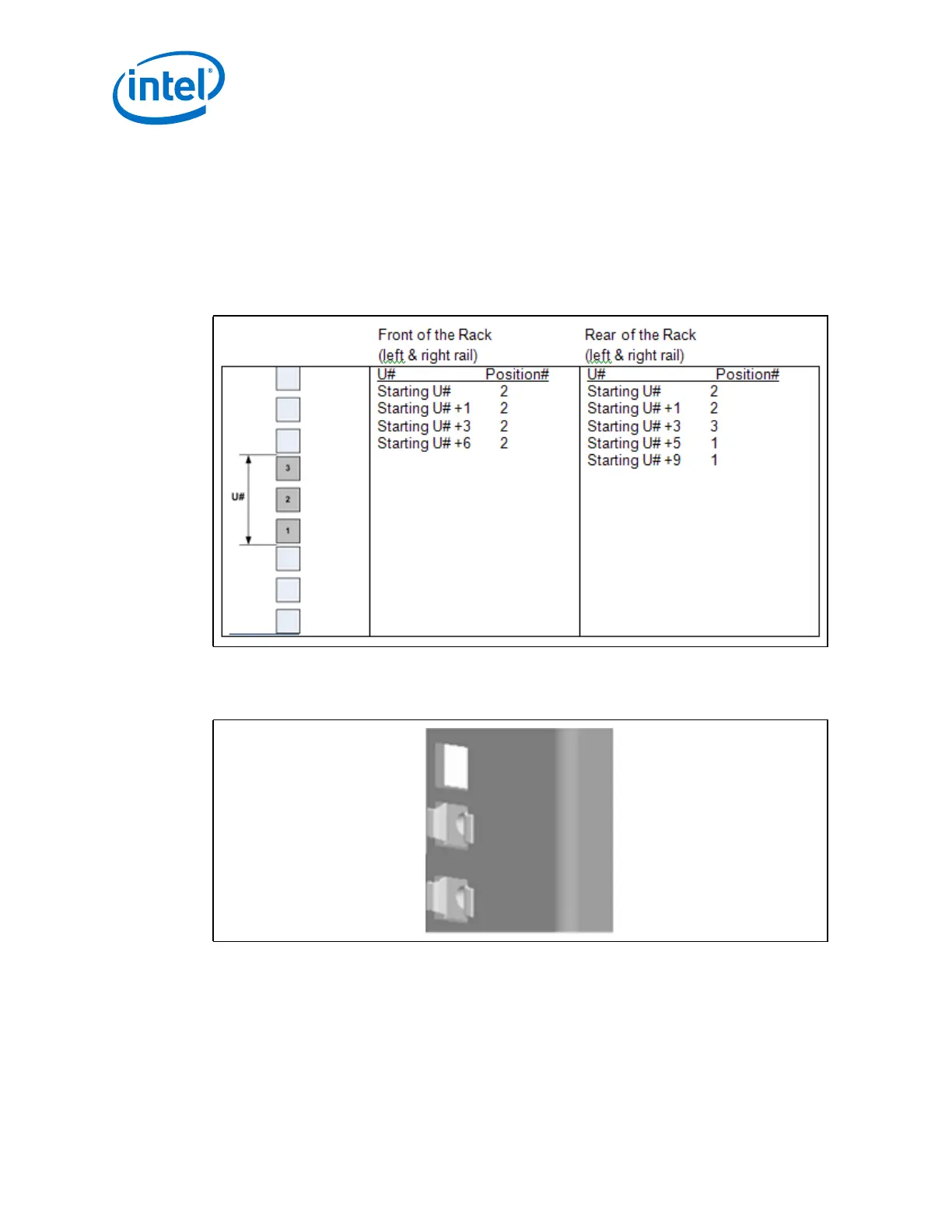

Figure 14. Clip Nut Installation Locations
Figure 15. Clip Nut Orientation
