2.3.3 12200 Two Post Rack Installation
2.3.3.1 Mounting Hardware Kit Contents:
• One pair of mounting L-brackets, left and right.
• #6-32 screws
• M6 cage nuts
• M6 screws
2.3.3.2 Installation
1. Attach the L-brackets with mounting ears towards the port side of the switch.
Fasten to the switch with three (3) #6-32 screws per L-bracket. Torque screws to
8in-lb.
2. Install four (4) cage nuts into the rack posts.
3. Install the switch in a rack and fasten to the cage nuts with four (4) M6 screws.
Torque screws to 8in-lb.

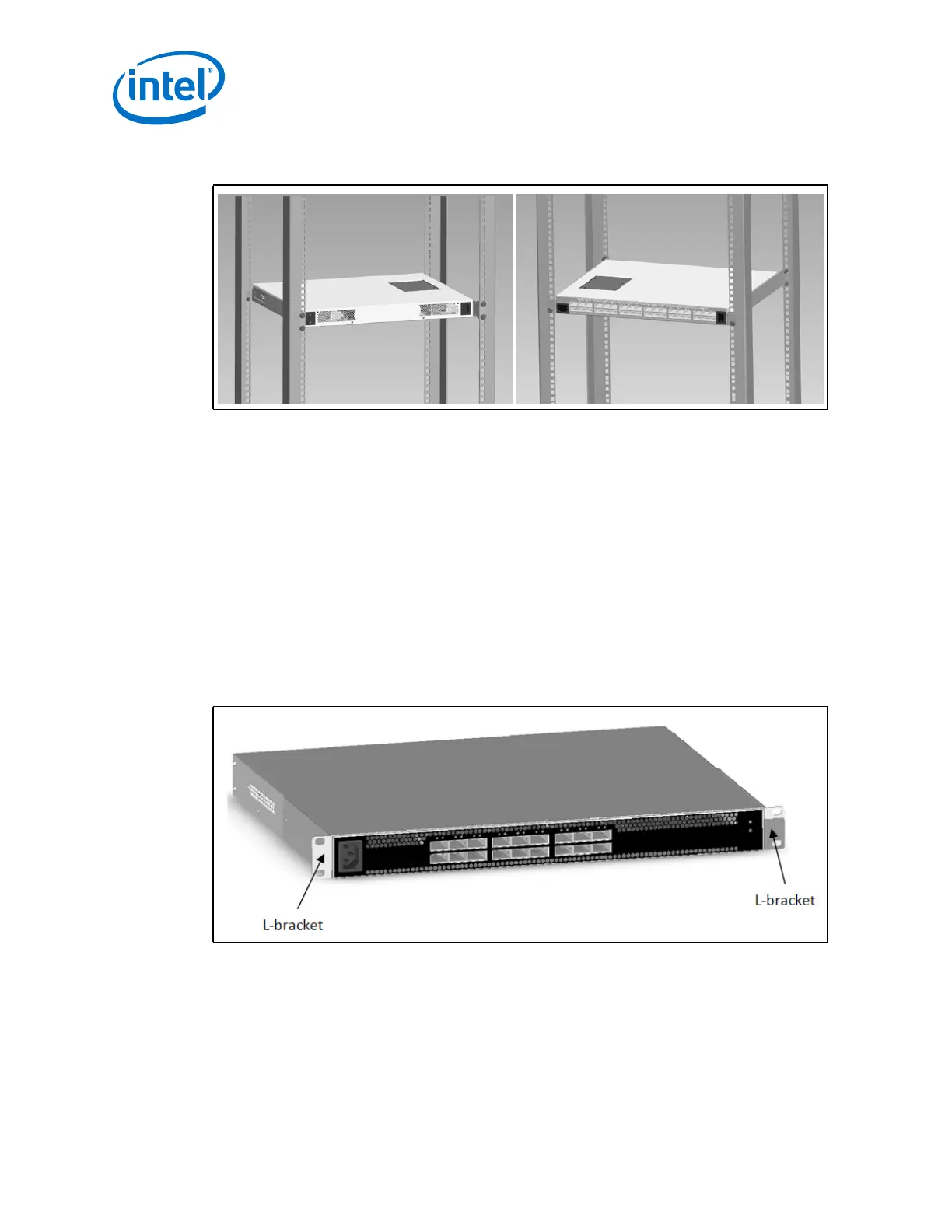

Figure 8. 12200 Four Post Shallow Rack Mounting
Figure 9. 12200 Two Post Installation
