Intel True Scale Fabric Switches 12200 User Manual

True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 97
12000 Series Switches
E.2.2.2 Replacement Procedures
Hold the unit by the handle and slide into the applicable slot until the finger tab clicks
into place.
E.3 Intel 12800 Series
E.3.1 Fan Replacement
FRU part numbers:
• Intake Fan: 12800FITK
• Exhaust Fan: 12800FEXH
E.3.1.1 Removal Procedures
1. While holding the handle, push the release latch to the right
2. Pull the fan by the handle until disengaged from the chassis.
3. Determine whether this is an intake or exhaust fan by checking the FRU label or
noting the location of the open notch.

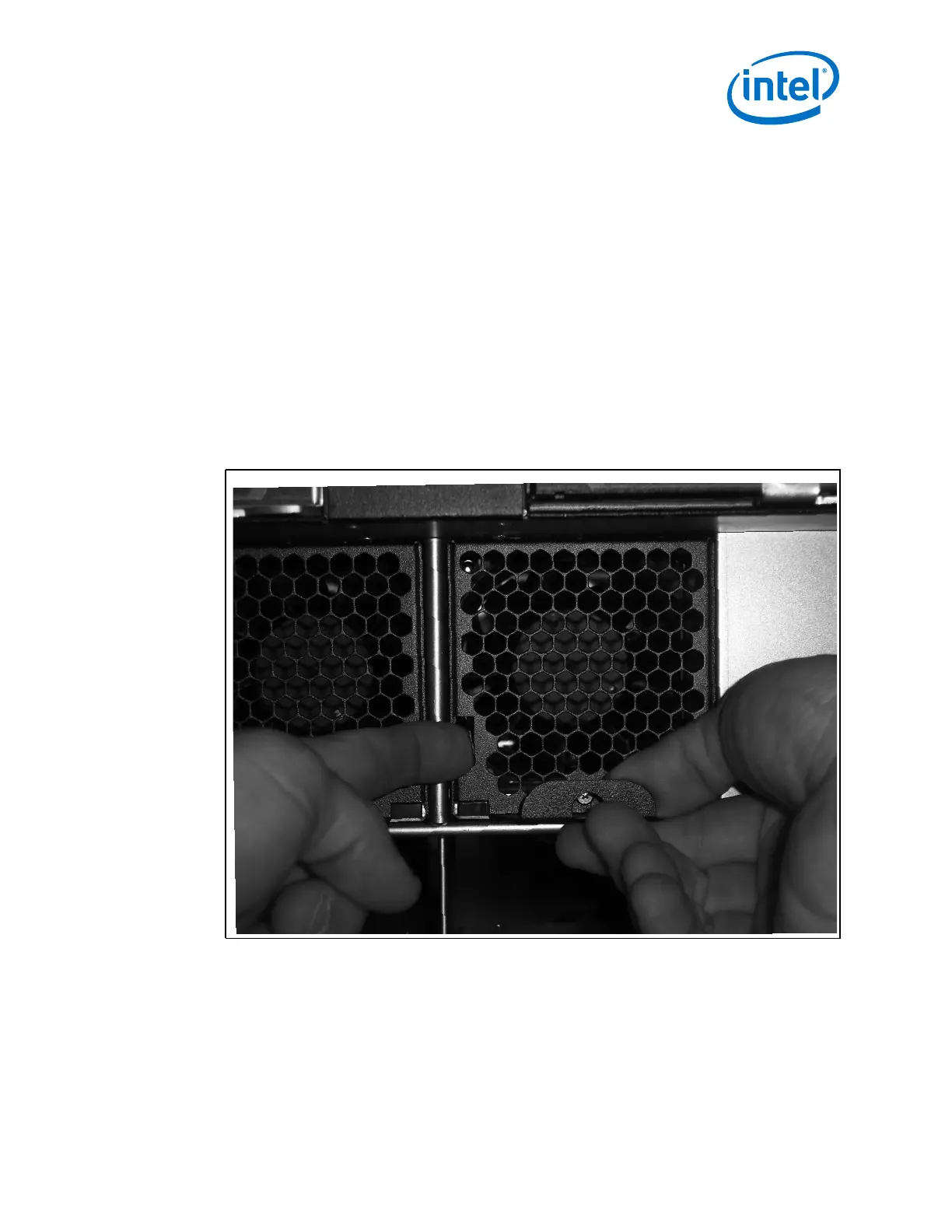

Figure 71. 12800 Fan Removal
