2.3.2 12200 Four Post Shallow-Depth Rack Installation
In a shallow-depth rack, the distance between the front and back mounting posts is
~16" (400mm). Mounting rails for the 12200 are adjustable to accommodate racks
with 14"–20" between mounting posts.
2.3.2.1 Mounting Hardware Kit Contents:
• One pair of C-brackets
• One pair of hat rails, left and right
• #6–32 screws
• M6 cage nuts
• M6 screws
2.3.2.2 Installation
1. Install the hat rails with mounting ears towards the port side of the switch. Fasten
with three (3) #6–32 screws per rail. Torque screws to 8in-lb.
2. Install six (6) cage nuts into the rack posts. Two cage nuts into posts on the front
side of the rack and four cage nuts into posts in the rear of the rack. Note that the
front of the rack is where the switch is installed.
3. Install two C-brackets in the rear of the rack. Fasten to the rack posts with four (4)
M6 screws. Slide the switch from the front of the rack into the C-brackets and
fasten to the front posts with two (2) M6 screws. Torque to 30in-lb.

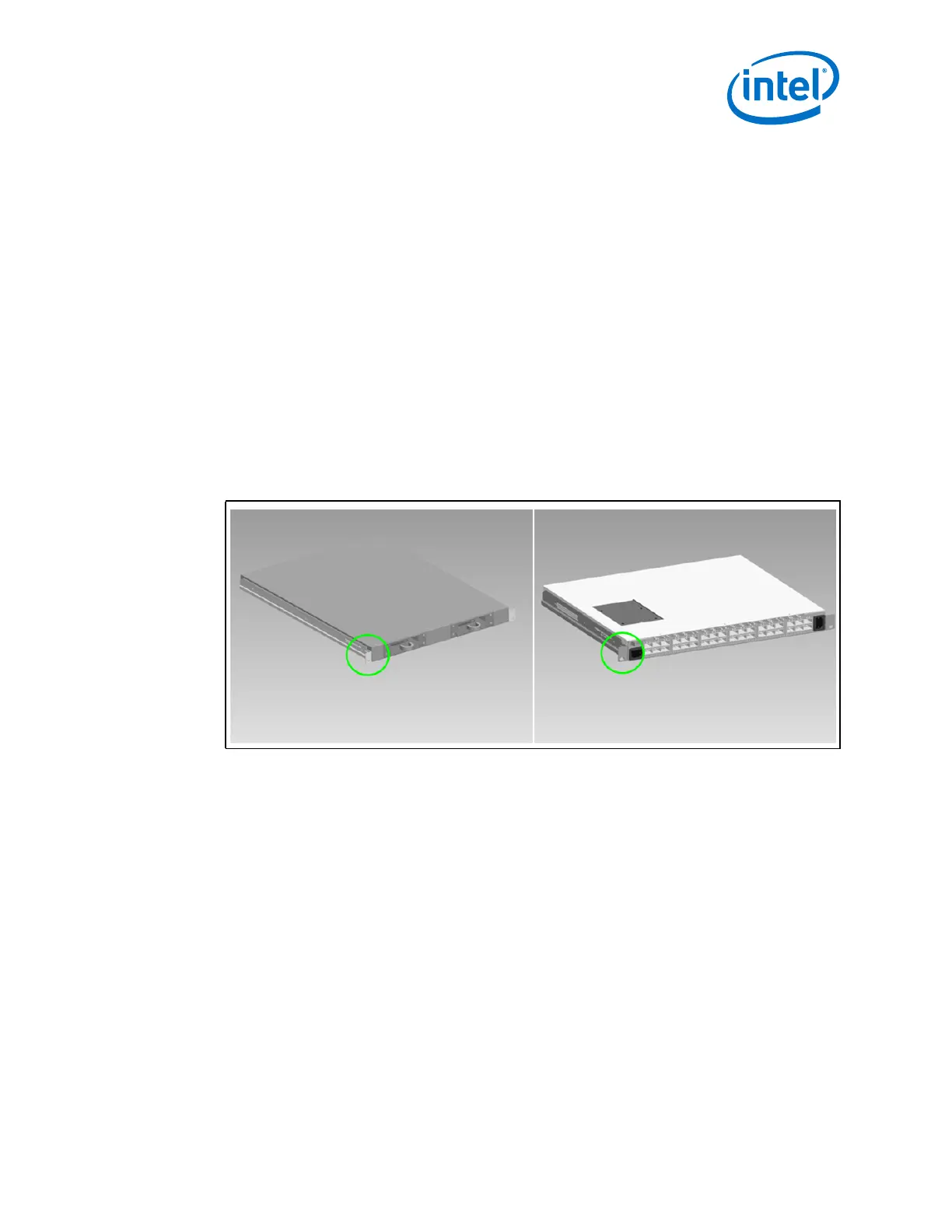

Figure 7. 12200 Hat Rails
