Intel True Scale Fabric Switches 12200 User Manual

True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 49
12000 Series Switches
5. The switch, power supply, and fan LEDs light up.
2.9 Bringing Up the System For the First Time
2.9.1 12800-Series Management Module Protective Label Guidelines
A management module installed in a 12800 system may have a protective label
installed, as shown in Figure 44. This label protects the mechanical release latch (MRL)
switch inside the management module from shock and vibration during shipping.

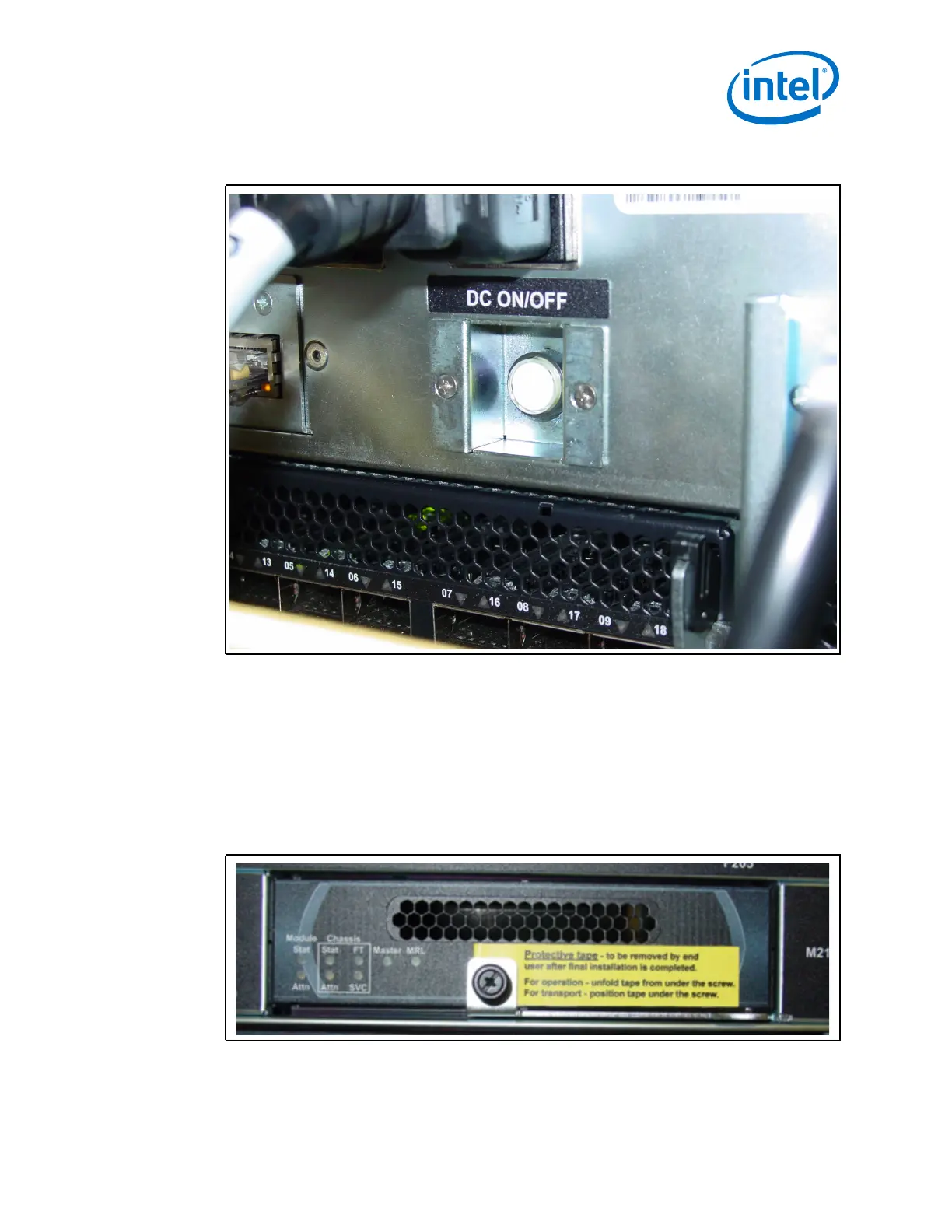

Figure 43. DC ON/OFF Switch
Figure 44. MRL Protective Label 1

Intel True Scale Fabric Switches 12200 Specifications

General

Brand	Intel
Model	True Scale Fabric Switches 12200
Category	Switch
Language	English
