Intel True Scale Fabric Switches 12200 User Manual

12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
42 Order Number: G91928004US
7. Position the chassis on front on the rack. Use pallet jack to move the chassis.
Orient the chassis on a pallet in front of the rack as shown. Chassis rear should be
facing front of the rack. For installations in racks arranged in rows, distance
between adjacent rows of racks (width on a cold isle) should be greater than 36" to
be able to move the chassis on a pallet through a cold isle.

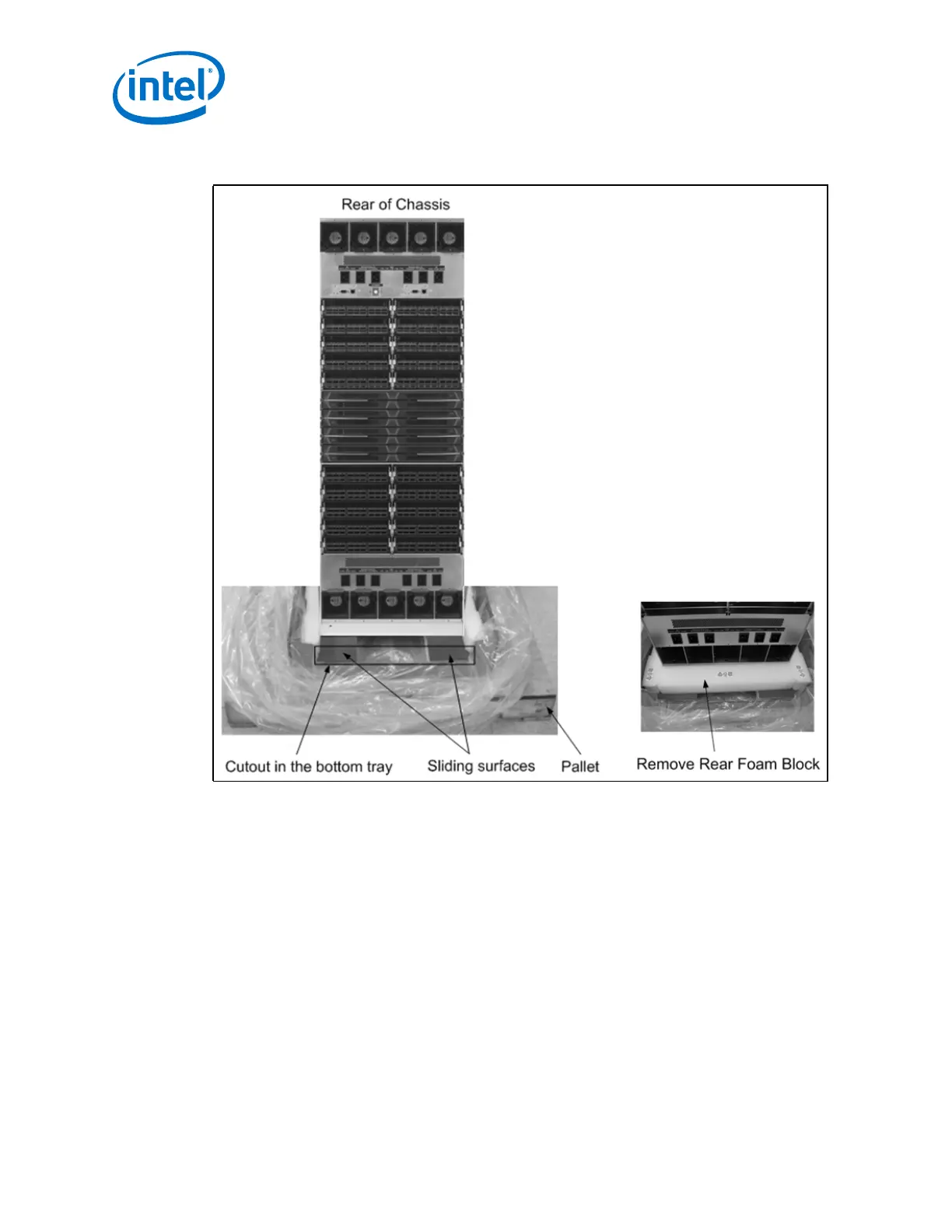

Figure 35. Loading from the Pallet
