E.3.1.2 Replacement Procedures
1. Slide the fan tray straight into the open slot until it engages with the backplane
connector.
2. Make sure the fan is operating and the Status LED is green.
E.3.2 Power Supply Replacement
FRU part number:
• 12800PS01
Note: These power supplies are to be used exclusively with the Intel
®
12800 series QDR IB
switches and are not intended to be sold separately.
E.3.2.1 Removal Procedures
1. Push the release latch to release the arm.

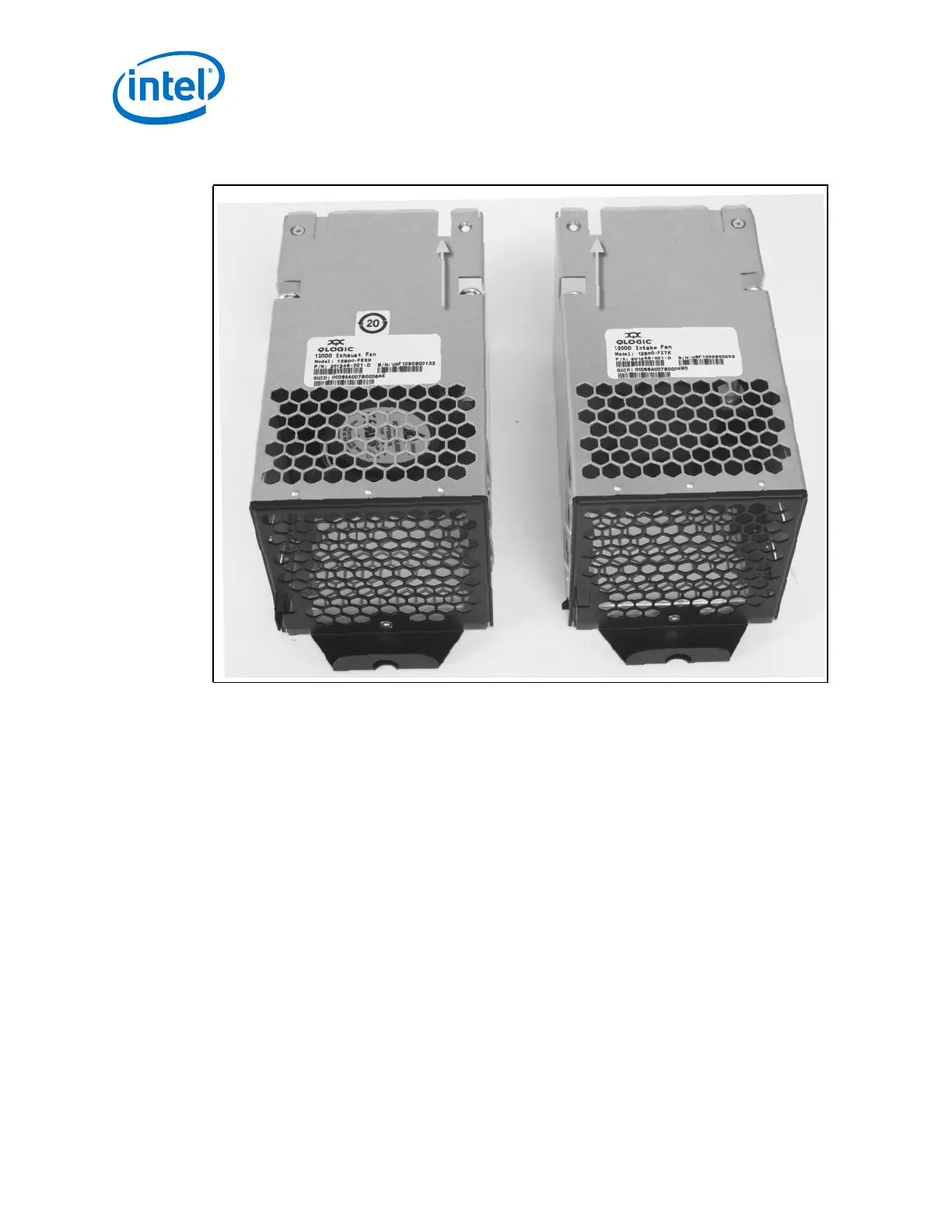

Figure 72. 12800 Intake and Exhaust Fans
