12000 Series Switches

True Scale Fabric Switches 12000 Series Hardware

Installation Guide July 2015

40 Order Number: G91928004US

4. Install the support shelf into the rack. Fasten the M6 screws to pre-installed clip

nuts and torque to 30 in-lb. There are three (3) screws per mounting bracket.

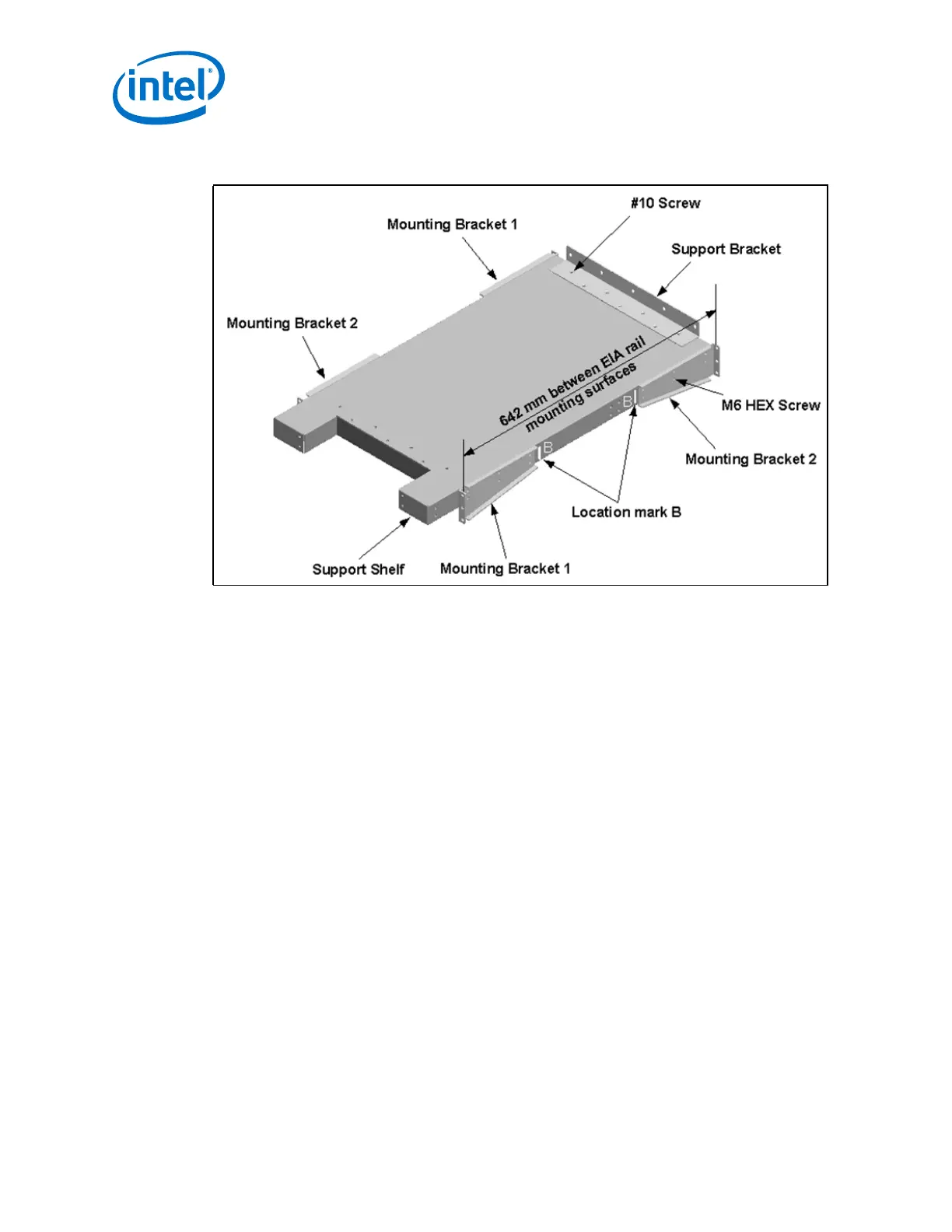

Figure 33. Support Shelf Assembly
