3. Install support rails in the rack. Fasten with two (2) M6 screws per EIA rail to pre-
installed clip nuts and torque to 30 in-lb.
4. Install four (4) rear mounting brackets to the chassis and fasten with #8–32
screws. There are four (4) screws per bracket. Torque to 30in-lb.

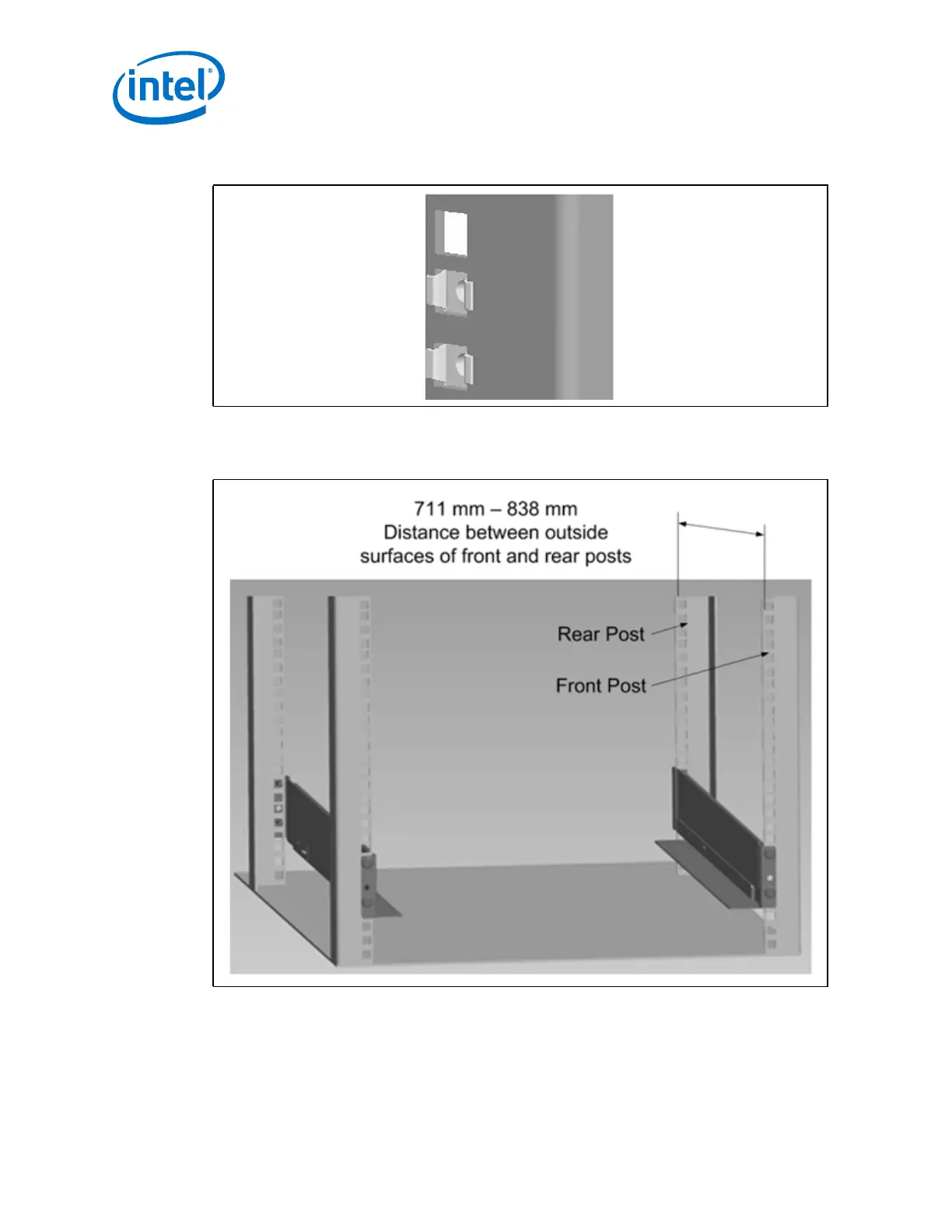

Figure 23. Clip Nut Orientation
Figure 24. Support Rail Installation
