12000 Series Switches

True Scale Fabric Switches 12000 Series Hardware

Installation Guide July 2015

22 Order Number: G91928004US

2. Install support rails in the rack. Fasten with two (2) M6 screws per EIA rail to pre-

installed clip nuts and torque to 30 in-lb.

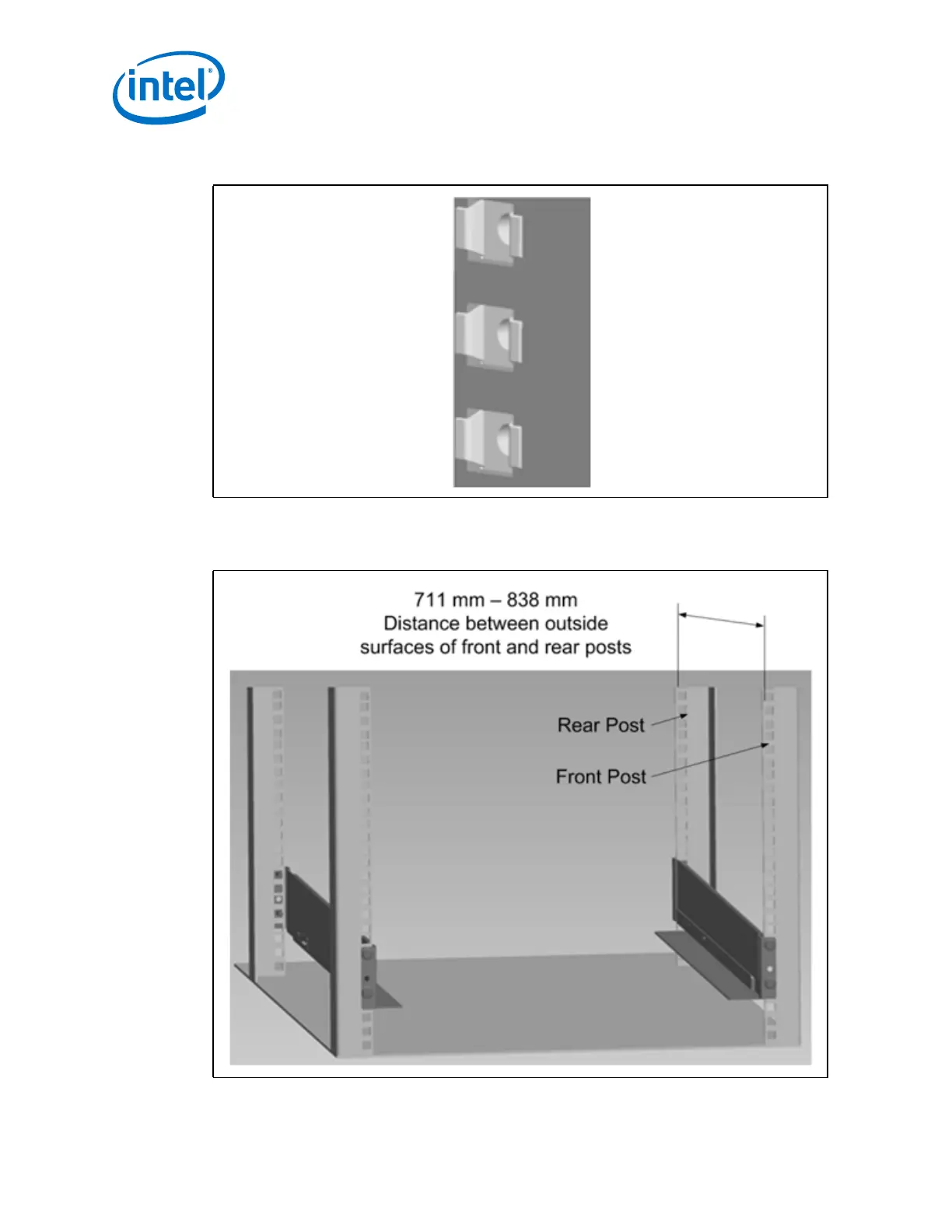

Figure 11. Clip Nut Orientation

Figure 12. Support Rail Installation
