Intel True Scale Fabric Switches 12200 User Manual

G91928 87
Appendix C Serial Port Pinouts
For those users making their own serial cables, follow the guidelines below.
Figure 65 represents the RJ-11 connector located on the Intel
®
12200 and 12300.
• The only serial port signals required are: Tx, Rx and Ground. All other serial
port signals are NOT used.

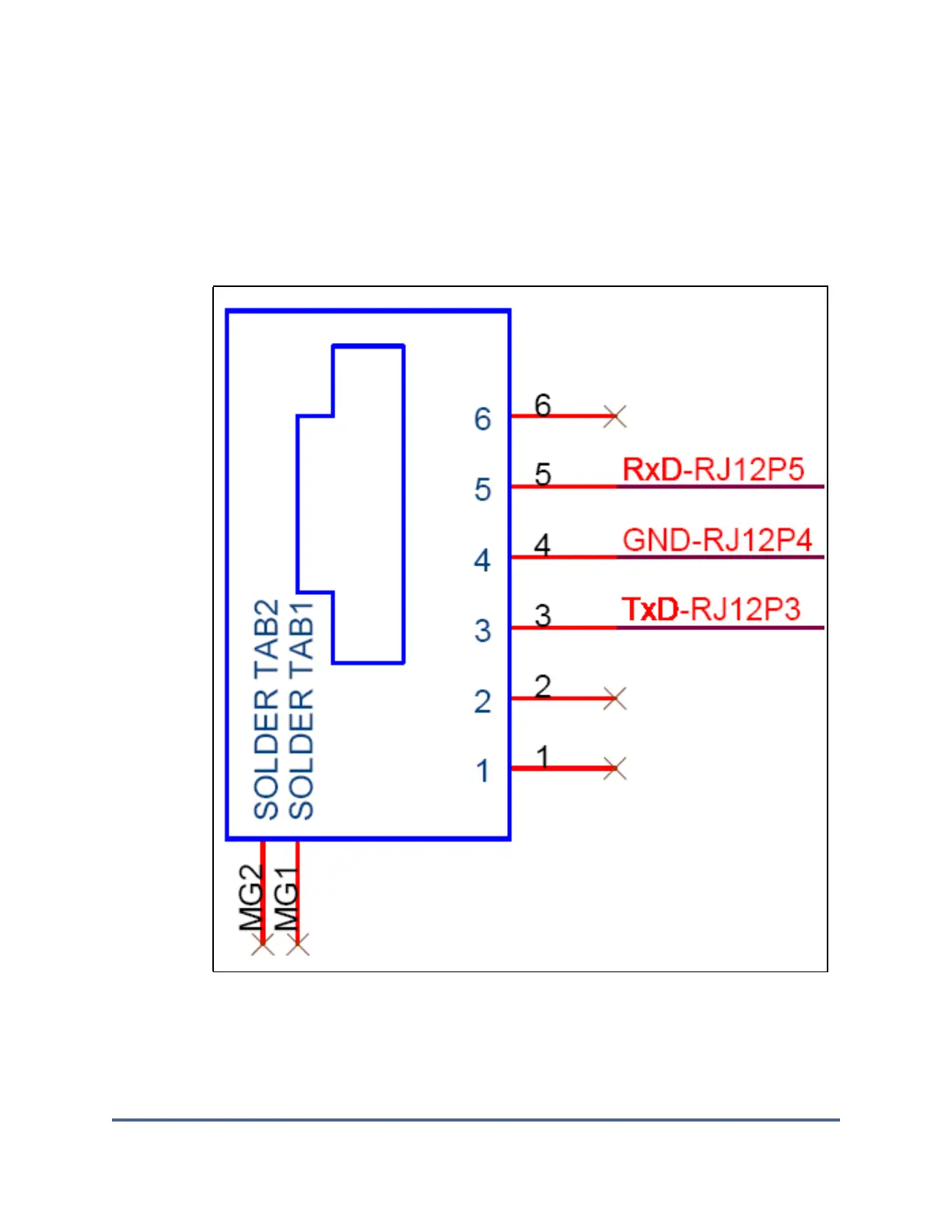

Figure 65. Serial Port Pinouts
