Intellian V100 - System Package

To Next Page

To Previous Page

v100 – Marine Satellite Communication System

System Package

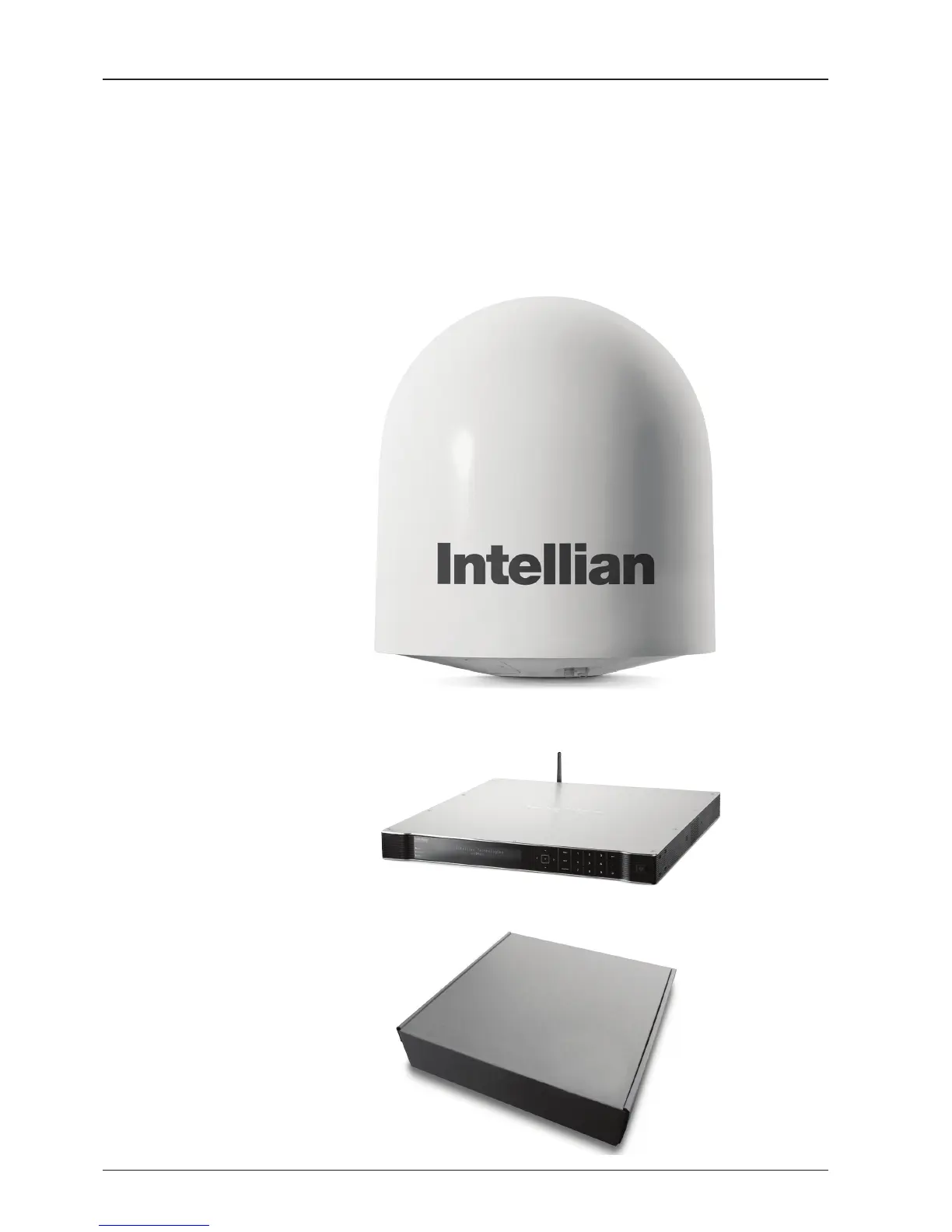

The package of Intellian v100 consists of antenna unit, lifting straps, ACU and

installation kit box.

Antenna unit

ACU

Installation kit box
