GD200A series VFD Installation guidelines
-17-
4.2.6 Tilt installation
W
a
r
m
a
i
r
C
o
o
l
a
i
r
W
a
r
m
a
i
r
W
a
r
m
a
i
r
C
o
o
l
a
i
r
C
o
o
l
a
i
r

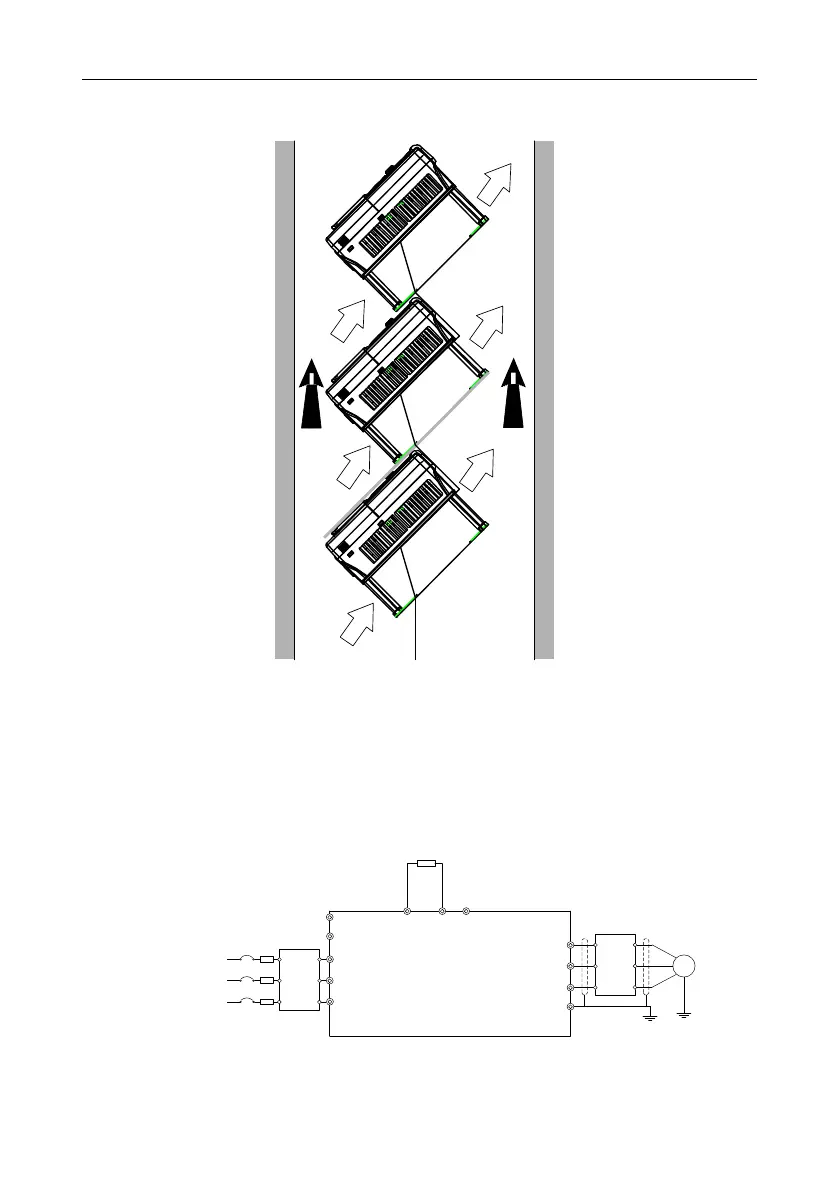

Figure 4-5 Tilt installation
Note: Ensure the separation of the wind input and output channels in tilt installation for avoiding
mutual impact.
4.3 Standard wiring
4.3.1 Wiring diagram of main circuit
Braking resistor
Output
reactor
Input
filter
015G/018P and lower
3PH power
50/60Hz
Fuse
Input
reactor
Input
filter
R
S
T
U
V
W
PE
M
(+)
(-)
PB
Figure 4-6 Main circuit wiring diagram for the 015G/018P and lower models
