GD200A series VFD Keypad operation procedure
-31-
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from
the third-level menu. The difference is: pressing DATA/ENT will save the set parameters into the
control panel, and then return to the second-level menu with shifting to the next function code
automatically; while pressing PRG/ESC will directly return to the second-level menu without saving
the parameters, and keep staying at the current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot
be modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation
records and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
The units place
is blinking
All digits are
blinking
Note: When setting the value, you can press and + modify the value.
SHIFT
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
DATA
ENT
DATA
ENT
DATA
ENT
The units place
is blinking
The units place is
blinking
The units place is blinking

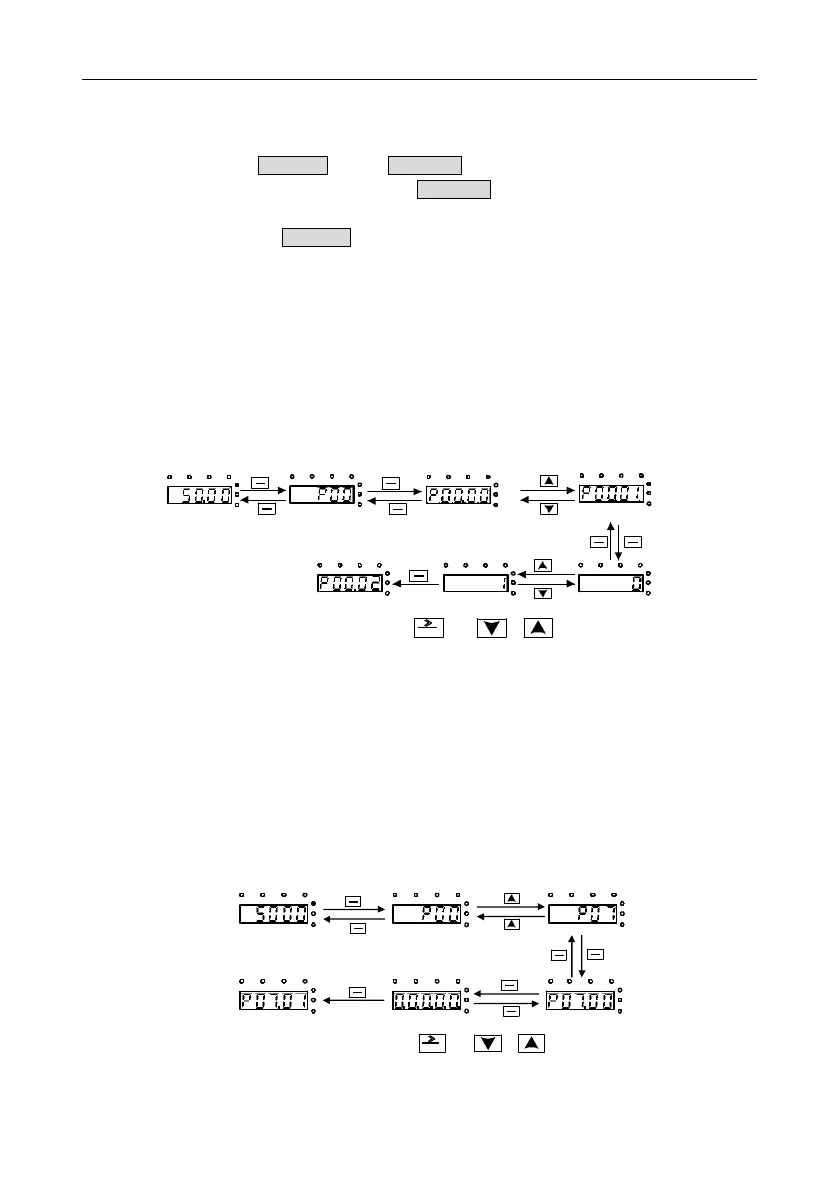

Figure 5-3 Sketch map of modifying parameters
5.4.2 How to set the password of the VFD
Goodrive200A series VFDs provides the user password protection function. When you set P07.00 to
a non-zero value, the value is the user password. After you exit the function code editing interface,
the password protection function is enabled within 1 minute. If password protection is enabled,
"0.0.0.0.0" is displayed when you press the PRG/ESC key again to enter the function code editing
interface. You need to enter the correct user password to enter the interface.
To disable the password protection function, you need only to set P07.00 to 0.
All digits are blinking
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
DATA
ENT
DATA
ENT
DATA
ENT
The units place is blinking
The units place is blinking
The units place is blinking The units place is blinkingThe units place is blinking
Note: When setting the value, you can press and + modify the value.
SHIFT
Figure 5-4 Sketch map of password setting
