(3) Setting the sewing recorder function
The operation and the display-related basic items of the sewing recorder function can be set on the <Sewing
recorder function setting screen> under the information mode.

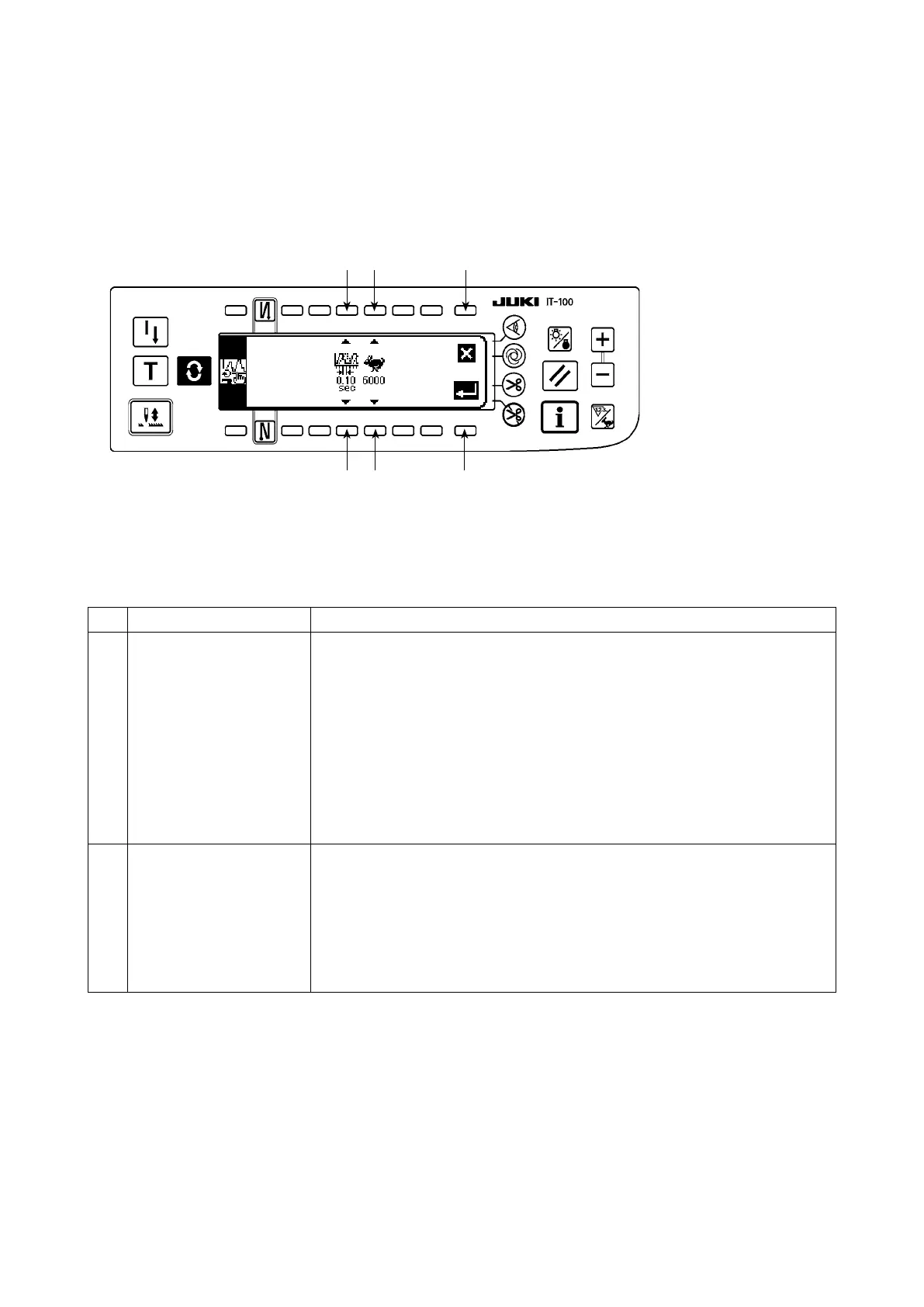

<Sewing recorder function setting screen>
Input data on items
1
and
2
referring to the table given below.
When Enter switch
3
is pressed, the input data is conrmed. When
Cancel switch
4
is pressed, the input
data is cancelled and the screen is restored to the previous screen.
No. Item to be set Description
1
Data sampling time Sets the time interval for measuring and recording the sewing speed of the sew-
ing machine.
Set value : 0.05, 0.10, 0.50, 1.00, 1.50, 2.00 (sec)
Initial value : 0.10 (sec)
* Data over the time interval specied by the set value "0.05: 25 minutes," "0.10:
50 minutes," "0.50: 250 minutes," "1.00: 500 minutes," "1.50: 750 minutes," or
"2.00: 1000 minutes" can be stored in memory of the sewing machine. When
the memory capacity is exceeded, the oldest piece of data is erased to store
the latest piece of data at all times.
* The accuracy of the graph plotted depends on the time interval set vale.
2
Upper limit value of ver-
ti cal axis of the chart
(sewing speed)
The upper limit of the graph displayed on the sewing recorder screen No. 2 is
set.
Set value : 6000, 9000 (sti/min)
Initial value : 6000 (sti/min)
* On the sewing recorder screen No. 2, the graph can be used under the auto
range mode or by setting an arbitrary range in increments of 1000 (sti/min) not
more than the upper limit.
* Refer to
"
@
. 2-2. Displays on the screen for the production support function"
for the operating pro-
cedure to be taken until this screen is displayed.
