– 76 –
2-2.
Memory switch setting
1
■

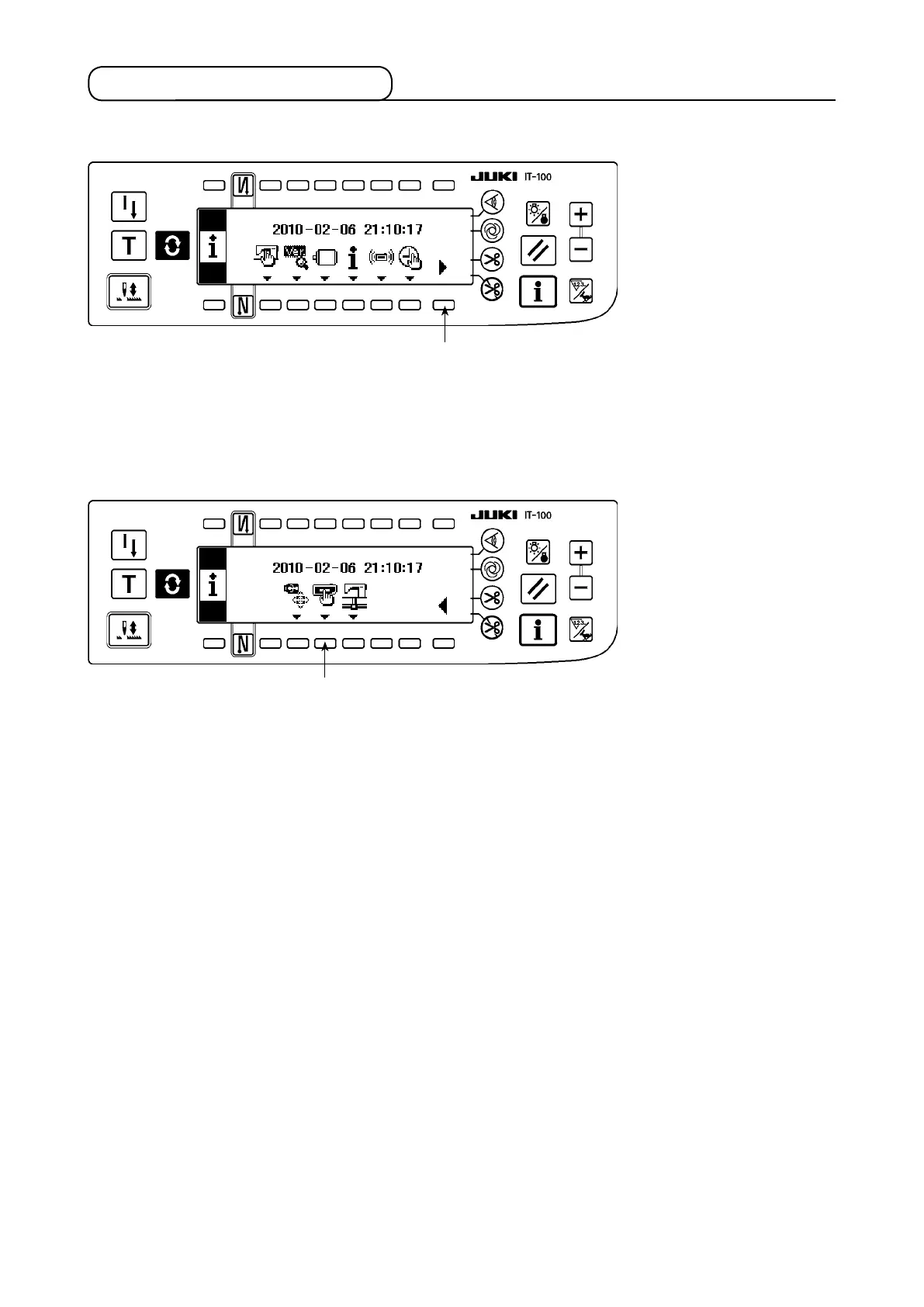

Information screen No. 1 (maintenance personnel level)
1)
T
urn the power ON.
2)
Keep switch
1
held pressed for a longer time until the information screen No. 2 is displayed.
■
Information screen No. 2 (maintenance personnel level)
3)
Press switch
2
to display the memory switch setting screen.
2
78
80
Table of Contents
Default Chapter
2
Default Chapter
2
Table of Contents
2
Ⅰ . Introduction
4
Ⅱ . Setting
5
Initial Setting
5
Machine Head Settings
5
Adjusting the Machine Head Angle (Direct-Drive Motor Type Sewing Machine Only)
6
Adjusting the Contrast of the Operation Panel Screen
7
Connecting the Count Manual Switch
7
USB Port
7
How to Set the Production Support Function
8
Overview of the Work Support Function
8
Displays on the Screen for the Production Support Function
9
Setting Procedure To Be Taken Before First Use
10
Enabling the Operation of the Production Support Function
10
Setting the Date and Time
12
Setting Other Setting Items
12
Setting Procedure to be Taken before Regular Operation
13
Setting the Date and Time
13
Setting the Enable/Disable of the Production Support Function
14
Setting the Sewing Recorder Function
15
Setting the Production Management Function
16
Setting Common Data for the Production Support Function
20
Ⅲ . Operation
22
Configuration of the Operation Panel
22
Sewing Screen
24
How to Operate a Sewing Pattern
27
Reverse Stitching Pattern
27
Overlapped Stitching Pattern
29
Programmed Stitching Pattern
30
Cycle Sewing Pattern
34
How to Operate the Common Functions
36
Bobbin Counter
36
Setting the Maximum Sewing Speed
37
Setting the Backlight
37
Re-Sewing Switch
38
Needle Up/Down Compensation Switch
38
On/Off Switch of the Material Edge Sensor
39
Automatic Thread Trimming Switch
39
One-Shot Automatic Stitching Switch
39
Thread Trimming Prohibition Switch
39
Simplified Function Setting
40
Key-Lock Function Setting
41
Function Setting
42
Function Setting List
44
Optional Input/Output Settings
48
Automatic Compensation of Neutral Point of the Pedal Sensor
49
Initialization of the Setting Data
50
How to Operate the Production Support Function
51
How to Change over the Screen under the Normal Sewing Mode
51
Operating the Work Management Screen
52
Work Management Screen
52
Sewing Product's Product Number Selection Screen
53
Operator ID Selection Screen
53
Optional ID Selection Screen
54
No. of Pcs. in Lot Input Screen
54
Communication Selection Screen
55
Operating the Pitch Time Monitor Screen
56
Pitch Time Monitor Screen No. 1
56
Pitch Time Graph Mode
58
Pitch Time Monitor Screen No. 2
60
Operating the Sewing Recorder
61
Sewing Recorder Screen No. 1
61
Sewing Recorder Screen No. 2
63
Uploading/Downloading the Sewing Recorder Data
64
Operating the Production Management Function
65
Production Management Screen No. 1
65
Production Management Screen No. 2
67
Ⅳ . Information
68
Operator Level
68
Sewing Management Information
68
Maintenance Management Function
68
Working Measurement Function
72
Setting the Date and Time
73
Maintenance Personnel Level
74
Sewing Common Data Screen
75
Memory Switch Setting
79
Network Setting
81
Ⅴ . External Interface
83
Ⅵ . Error
83
Error Display
83
Error Code List (Error Display in Panel)
84
