JUKI IT-100 User Manual

– 60 –

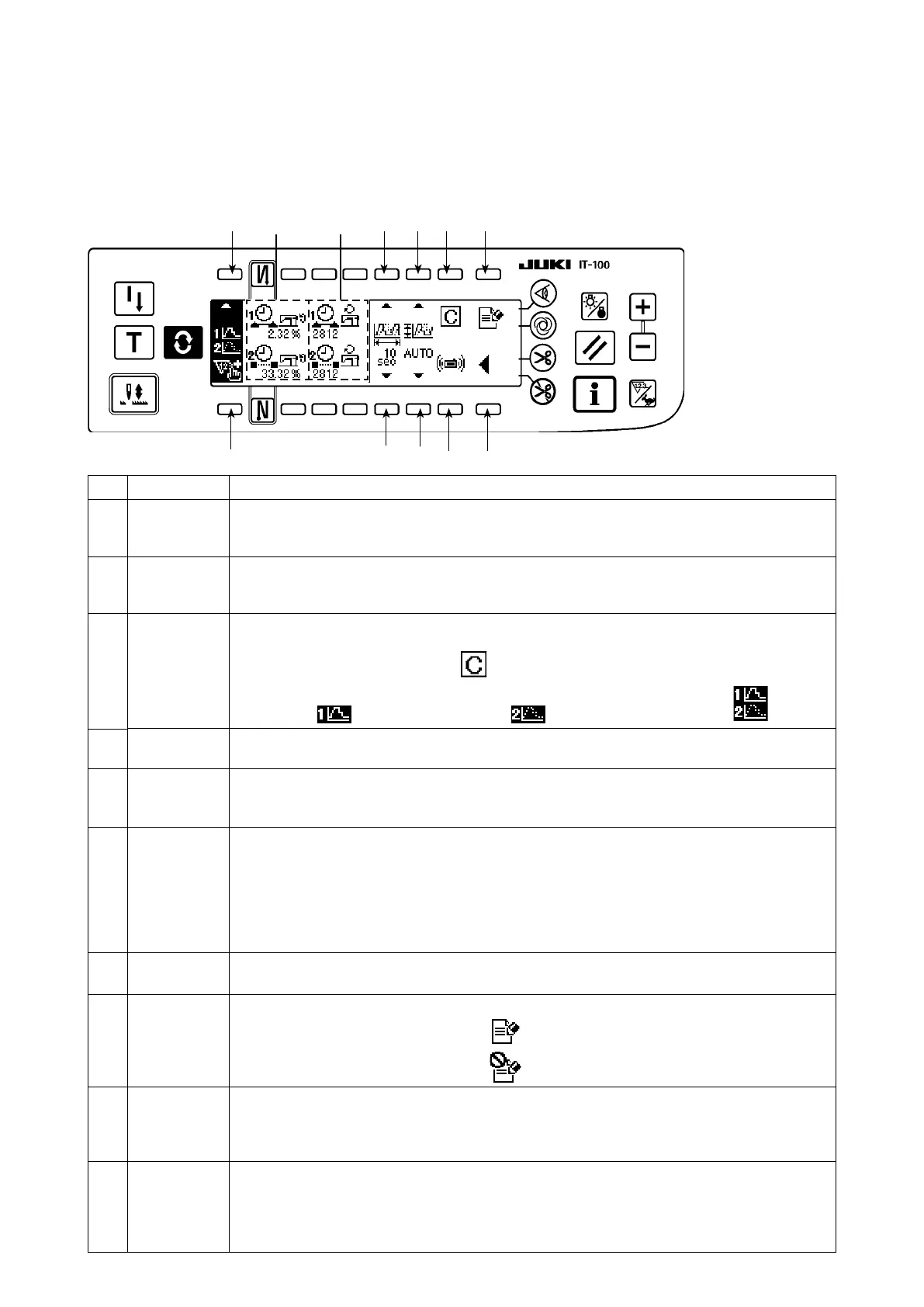

(2) Sewing recorder screen No. 2
2
3
1
3
8
5 6
4
B
A
4
7
<Sewing recorder screen No.2>
On the sewing recorder screen No. 2, the sewing machine operation rate and the average sewing speed in
the pitch time section displayed on the screen No. 1 is calculated and displayed. (Sections A and B in the g-
ure given below) In addition, the display method employed on the sewing recorder screen No. 1 is specied.
Switch/display Description
A Sewing machine
operation-rate
display
The rate of the time during which the sewing machine operates in the pitch time shown on the
sewing recorder screen No. 1 is displayed.
Upper display : Data No. 1 Lower display : Data No. 2
B Average sewing
speed display
The average sewing speed of the sewing machine in the sewing machine operating section with-
in the pitch time shown on the sewing recorder screen No. 1 is displayed.
Upper display : Data No. 1 Lower display : Data No. 2
1
Active data se-
lector switch
This switch is used to select the active data (data to be moved by means of switch
4
or
5
on
the screen No. 1, data to be additionally recorded by sewing operation and data that can be
erased by means of the clear switch on the screen No. 2).
Setting only data No. 1
to be active
Setting only data No. 2
to be active
Setting both
data to be active
2
Production volume
count-up switch
The production volume is counted up with one item added.
3
Graph's horizontal
axis range setting
switch
The range of the horizontal axis (time unit in one section) of the graph shown on the sewing re-
corder screen No. 1 is set.
Setting range : 10, 30, 60, 120, 180, 300, 600sec Initial setting : 10 sec
4
Graph's verti-
cal range set-
ting switch
The range of the vertical axis of the graph displayed on the pitch time monitor screen No. 1 is set.
Setting range : auto, 1000, 2000, 3000, 4000, 5000sti/min Initial setting : auto
In the case of “auto,” the range is automatically selected to display the sewing speed on the ver-
tical axis as large as possible at all times.
* It should be noted, however, that the maximum measurable sewing speed can be increased
to 9000 sti/min using
"
@
.2-4.(3) Setting the sewing recorder functions"
on the sewing
recorder function setting screen.
5
Clear switch Data which is set to be active is cleared.
6
Measurement
stop switch
Measurement and recording of sewing machine operation data are stopped.
When measurement is being carried out, is displayed.
When measurement is in the stop status, is displayed.
7
Data upload/
d o w n l o a d
switch
The sewing recorder data No. 1 and No. 2 can be uploaded on a medium or downloaded from it,
and can be deleted.
* Refer to the next item
"
#
. 5-4.(3) Uploading/downloading the sewing recorder data"
for
the procedure in detail.
8
Display chang e -
o v e r s w i t c h t o
display the sewing
re co r de r s c re en
No. 1
The sewing recorder screen No. 1 is displayed.
