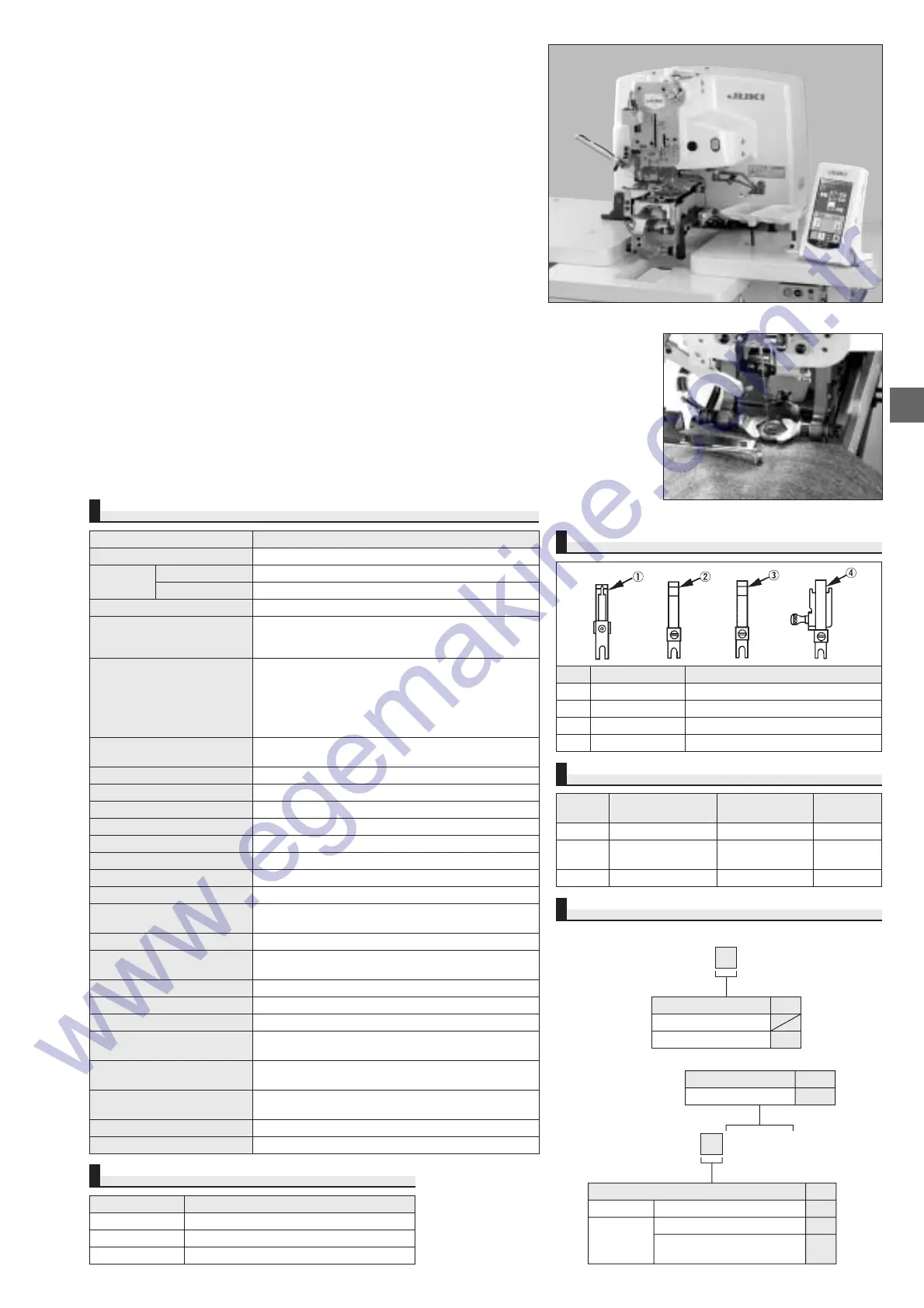

AMB-289 (September, 2004) 1/2
AMB-289
Flat button
● This single machine can also sew flat buttons, shank buttons, marble buttons
and stay buttons (counter buttons).
● The stay button (counter button) sewing capability is a vital addition to the
impressive application range of the AMB-289.
● The sewing speed has been enhanced to dramatically increase productivity.
● As compared with manual button sewing, the AMB-289 achieves productivity
as high as 5 times.
● The AMB-289 finishes four-holed buttons with a hand-stitched appearance
(V-shape stitching) by fixing the tucking position at a preset location.
This results in the sewing of a neat seam on the wrong side of the garment
and neck-wrap knots at a single location. Seam quality is further enhanced
as a result.
● The newly introduced active tension system further improves responsiveness
and allows delicate tension setting when the user changes fabrics.
● The machine incorporates a thread-fray prevention function that ensures the
tying of strong and reliable knots at the last stitch.
● The machine sews buttons on a double-breast suit, a garment that requires
the sewing of different types of buttons, in a continuous manner.
● As the machine requires no lubrication, oil spatters and all other lubrication-
related troubles are eliminated. Sewn garments have dramatically fewer oil
stains as a result.
＊Periodical greasing is required for some of the mechanical structures.
● The operation panel is a touch-sensitive type LCD. The clear graphical
displays make it much easier for the operator to set or modify sewing data.
Computer-controlled, High-speed, Single-thread Chainstitch,
Button-neck-wrapping Machine
AMB-289
SPECIFICATIONS
OPTIONS
BUTTON SET PINS (OPTIONS)
BUTTON CHUCK
WHEN YOU PLACE ORDERS
Model name
Stitch type
Sewing speed
Max. sewing speed
Normal sewing speed
Application
Button size
Display screen for setting basic
shape-setting
Needle
Thread
Thread take-up
Needle bar stroke
Needle throwing system
Feed system
Auto-lifter
Cloth feeding system
Thread trimming system
Thread tension adjustment
Number of cycle stitch patterns
Number of data that can be input
Operation panel
Button loader
Product count
Lubrication
Power requirement
and power consumption
Compressed air
and air consumption
Dimensions
Weight
AMB-289
Single-thread chainstitch
1,800rpm (neck-wrapping), 1,200rpm (button sewing)
1,500rpm (neck-wrapping), 1,000rpm （button sewing)
Sewing of various button types (buttons to be sewn by machine)
Sewing button without neck-wrapping : φ8〜φ38mm
Sewing button with neck-wrapping : φ8〜φ32mm
Counter button : φ8〜φ25mm
Distance between buttonholes:
1.5〜6.0mm (in increments of 0.1mm)
Height of neck-wrap:
0, 1.5〜10.0mm (in increments of 0.1mm)
Number of cross-over stitches:
2〜64 (in increments of 2)
ORGAN SM×332EXTLG-NY (standard needle),
(at the time of delivery #14) #12〜#18
SPUN #60〜#30, Cotton thread #60〜#30
Needle thread take-up
60.0mm
Stepping motor
Stepping motor
Stepping motor
Pneumatic
Pneumatic
Active tension
(Newly developed electronic thread tension control system)
Max. 99 patterns
The number of registered patterns:
20 (30 patterns for one cycle)
Color LCD touch panel: IP-200D
Provided as standard
Provided as standard (up/down system)
No lubrication
＊Periodic greasing is required.
Single-phase 200〜240V, 3-phase 200〜240V/400VA
0.5MPa(5kgf/F), 11dJ/min
600mm(W)×600mm(D)×400mm(H)
Machine head: 65kg, Control box: 13kg
Part No.
40020932
40020931
40020930
Description
Button chuck (small)
Button chuck (medium)
(standard)
Button chuck (large)
Outside diameter of
button that can be used
φ8〜φ16mm
φ14〜φ25mm
φ25〜φ38mm
Remarks
Accessories
Installed on
machine head
Accessories
Part No. Description
40021446 Marking light asm.
40021447 Counter button B asm. (gauge set)
40024087 Movable safety plate asm.
No. Part No. Description
1 17974056 For marble button
2 17974254 For shank button (φ1.5〜φ2.0mm)
3 17974452 For shank button (φ2.0mm or more)
4 40023428 For metallic button
AMB289
[Machine head]
MC640 IP200D
[Control box]
Option Code
Not provided
With movable safety plate A
Operation panel Code
IP-200D for AMB-289 IP200D
Power supply Code
3-phase 200〜240V E
Single-phase
200〜240V K
EU (CE) 200〜240V
(not provided with power switch)
N
