DU-580 (September, 2003) 1/1
39.2
9.8
31.3
D
12.4
D
38.4
9.8
31
40
D

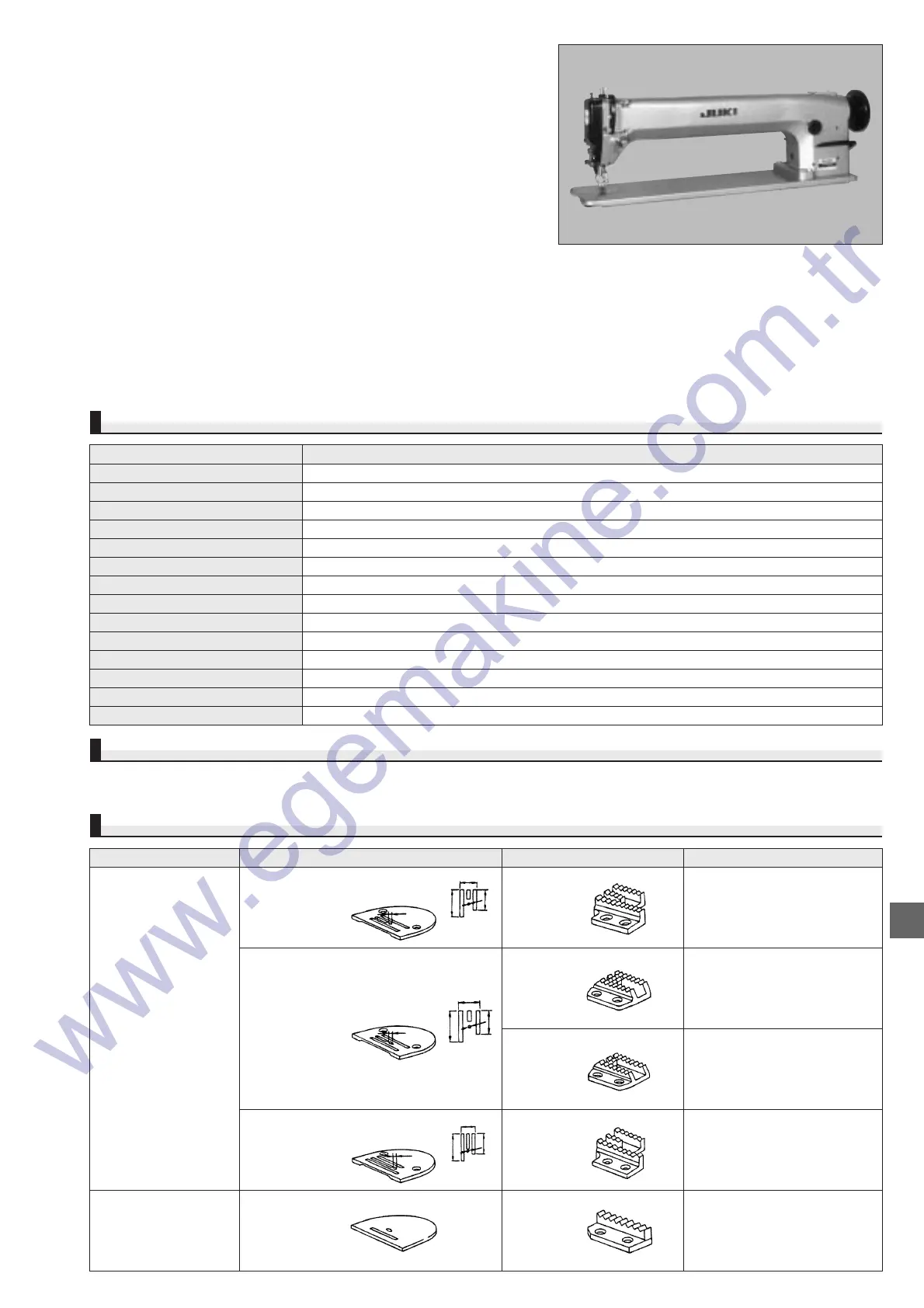

DU-580
SPECIFICATIONS
WHEN YOU PLACE ORDERS
EXCHANGEABLE GAUGE PARTS
● Free space under the arm is as wide as 500mm. Thanks to this wide
free space under the arm, the machine is widely applicable to heavy
materials and long-sized materials.
● The efficiency of feed is doubled, thereby improving the ability of the
feed mechanism to feed the material straight.
● The hinged walking foot and the feed dog feed the material placed
between them, synchronizing with each other.
● The stitch length can be adjusted within the range of 0 to 9mm by using
the dial. Thanks to this feature, this machine is widely applicable to
the sewing of tents, which need to be sewn with coarse stitches, or long-
sized materials including car seats, and materials sewn with a thick
thread. Reverse feed stitches of the same length as the normal feed
stitches can be sewn only by depressing the lever.
● Since the machine is equipped with a double-capacity hook, the frequency
of bobbin replacement is reduced, thereby leading to higher efficiency.
DU-580
1-needle, Top & Bottom-feed, Long-arm, Lockstitch Machine
Model name
Max. sewing speed
Max. stitch length
Needle bar stroke
Lift of the presser foot
Thread take-up
Alternating vertical movement
Hook
Needle (at the time of delivery)
Thread
Lubrication
Lubricating oil
Distance from needle to machine arm
Bed size
Weight of the machine head
Description
Standard
Single-lined feed dog
for sewing gloves and shoes
Throat plate
D1109-560-E00 (D=2.6)
D1109-560-E0A (D=4.2)
D1109-560-E0B (D=3.0)
B1109-201-H0B (D=3.5)
B1109-555-H0B (D=2.6)
B1105-141-000 (D=2.0)
B1105-141-H00 (D=2.6)
114-05800
Feed dog
D1613-560-E00
B1609-201-000A
B1609-201-000B
B1613-141-H00A
114-05701
Notes
Stitch length: max. 8mm
Stitch length: max. 8mm
Stitch length: max. 10mm
Stitch length: max. 9mm
Exclusive parts
Roller presser foot asm for DDL:
B1524-560-RB0
Narrow type walking foot for DU:
B1526-141-HAB
B1526-141-H0T
DU-580
DU-580
1,500rpm
9mm (normal/reverse feed)
35mm
By hand: 7mm, By knee: 15mm
Link type
2〜5mm
Horizontal-axis full-rotary double-capacity hook
DB×1 (DP×17) (#21) #14〜#23, For JE: 1738 (Nm130)
#40〜#8, B33〜B92, Nm=90/3〜30/3
By an oiler (hook: automatic)
JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
500mm
715mm×178mm
49kg
