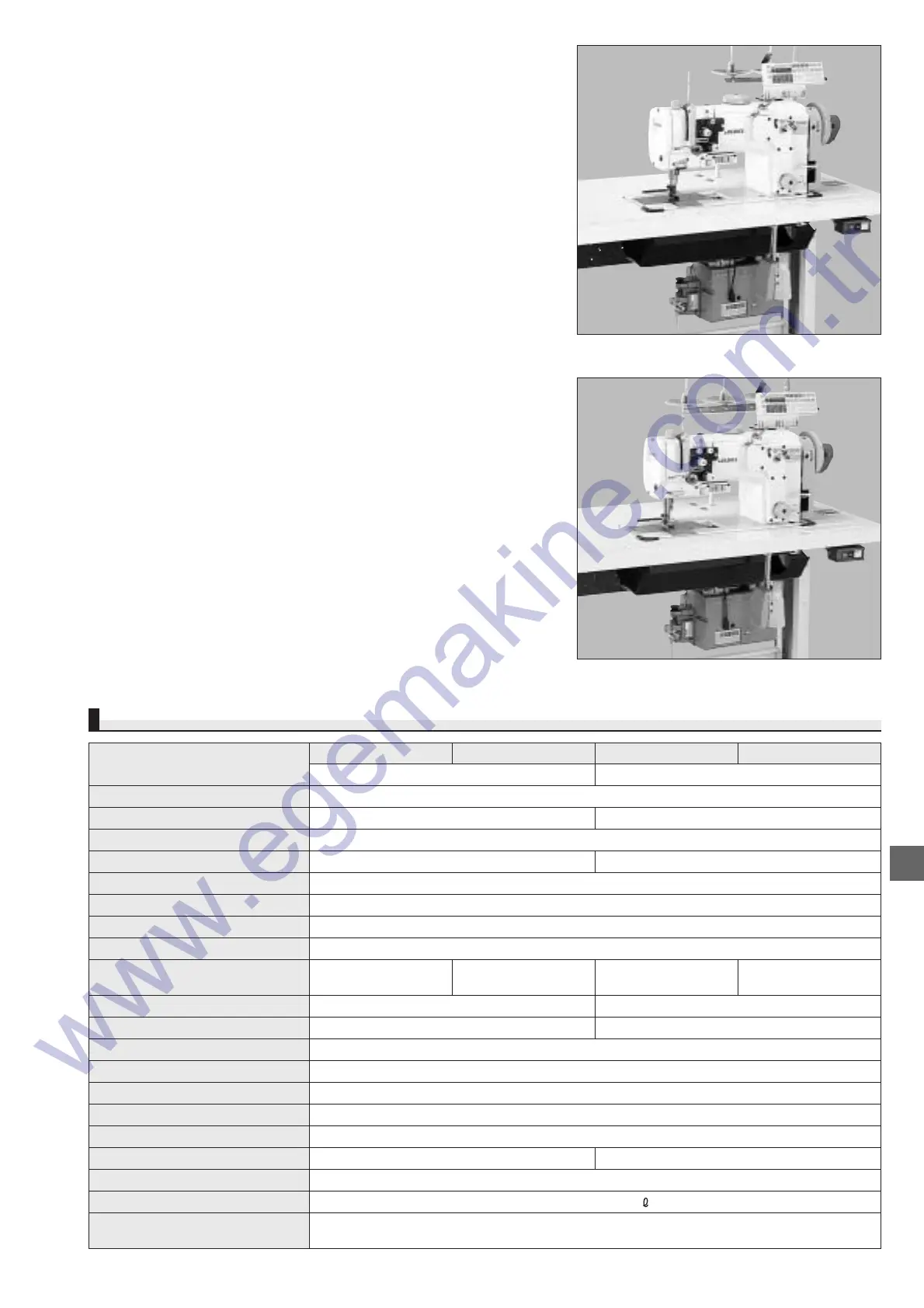

LU-2210N-7, 2210W-7, 2260N-7, 2260W-7 (September, 2003) 1/4
LU-2210N-7-0B/XC-E500
LU-2260N-7-0B/XC-E500
High-speed, 1-needle, Unison-feed, Lockstitch Machine
with Large Hook and Automatic Thread Trimmer
LU-2210N-7
(1.6 fold-capacity hook)
LU-2210W-7
(double-capacity hook)
High-speed, 2-needle, Unison-feed, Lockstitch Machine
with Large Hooks and Automatic Thread Trimmer
LU-2260N-7
(1.6 fold-capacity hook)
LU-2260W-7
(double-capacity hook)
● Thanks to its remarkable feed efficiency and improved feed cam unit,
the machine smoothly feeds materials at high speeds while preventing
stitch gathering. The machine is also equipped with a new box-type
feed locus that enables the production of beautifully finished seams free
from material flopping.
● The rigid movement of the knife-driving shaft and ideal shape of the cam
enable the thread trimmer to trim thread as thick as #5. Further-more,
no adjustment is necessary after changing the thread count.
● The vertical strokes of the presser foot and walking foot (their alternating
vertical movement) can be easily changed using a large dial mounted on
the top surface of the machine head. In addition, the sewing speed is
automatically adjusted with the set value. With this feature, ideal
sewing conditions are maintained at all times.
● The LU-2210N-7 and -2260N-7 are equipped with a vertical-axis 1.6 fold-
capacity hook, and the LU-2210W-7 and -2260W-7 with a vertical-axis
double-capacity hook. These hooks promote highly efficient operation
by reducing the frequency of bobbin thread replacement.
Model name
Max. sewing speed
Max. stitch length
Needle bar stroke
Needle gauge (mm)
Lift of the presser foot
Auto lifter
Thread take-up
Alternating vertical movement
Hook
Needle (at the time of delivery)
Thread
Safety mechanism
Lubrication
Lubricating oil
Distance from needle to machine arm
Bed size
Weight of the machine head
Automatic reverse feed function
Compressed air and air consumption
Power requirement
LU-2210N-7 LU-2210W-7 LU-2260N-7 LU-2260W-7
1-needle 2-needle
3,500rpm
9mm (normal/reverse feed) 6mm (normal/reverse feed)
33.8mm
― 6, 8, 10 (standard), 12, 20
＊
By hand: 9mm, By knee: 16mm (max)
Provided as standard (pneumatic auto-lifter: AK79)
Link type
1〜6.5mm
Vertical-axis
1.6 fold-capacity hook
Vertical-axis
double-capacity hook
Vertical-axis
1.6 fold-capacity hook
Vertical-axis
double-capacity hook
134×35 (Nm140) Nm100〜Nm180
#30〜#4, B46〜B138, Nm=60/3〜20/3
134×35 (Nm140) Nm100〜Nm160
#20〜#5, B64〜B138, Nm=40/3〜20/3
SPECIFICATIONS
Provided as standard
Automatic
JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
264mm
517mm×178mm
55kg 58kg
Provided as standard
0.5MPa (5kgf/cm
2
), 0.3N /min
Single-phase 100〜120V, 220〜240V
3-phase 200〜220V, 220〜240V
＊Configured for needle gauge widths from 4mm to 36mm (LU-2260N-7) and 4mm to 30mm (LU-2260W-7).
Note that gauges not given above are also available on special order.
