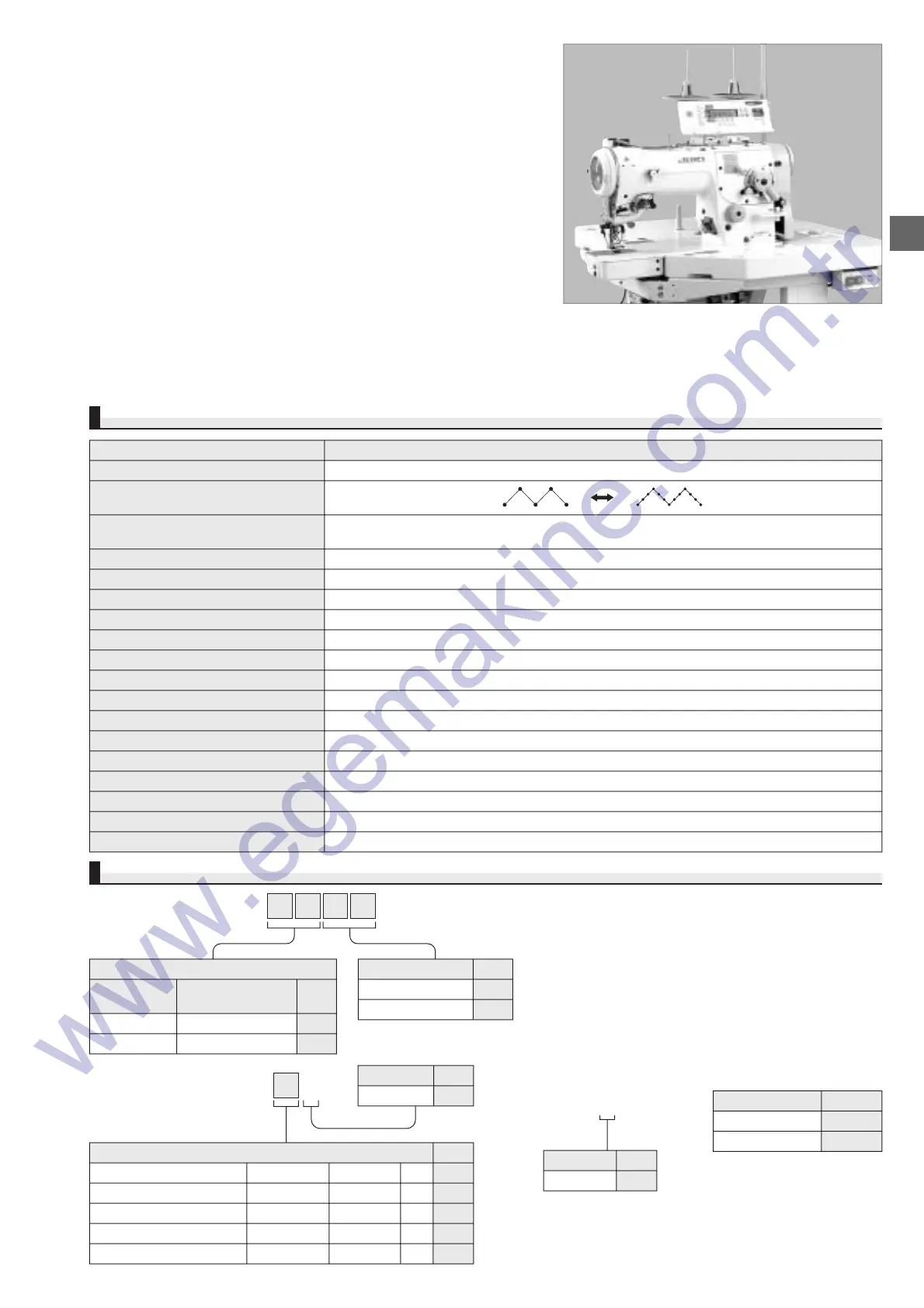

LZ-2284C-7 (September, 2003) 1/1
● The cylinder-bed more than adequately facilitates the handling of
tubular sewing products in circular sewing processes, thereby
contributing to increased productivity and upgraded seam quality.
This zigzag stitching machine is best suited to the attaching or counter
stitching of elastic tape. The machine demonstrates features of the
LZ-2284N-7 that offer outstanding productivity and a higher facility
operation ratio, which is supported by a maximum sewing speed of
5,000rpm and a one-touch utility changeover between standard and
3-step zigzag stitching patterns.
● In elastic tape attaching or counter stitching processes for girdles,
shorts or swimwear, the machine promises easy handling of the
material. The material is placed over the cylinder-bed and can be
sewn at once without stopping the sewing machine during sewing.
This dramatically increases productivity.
SPECIFICATIONS
High-speed, Cylinder-bed, 1-needle, Lockstitch, Zigzag Stitching Machine
with Automatic Thread Trimmer
(with standard/3-step zigzag stitching pattern changeover function)
LZ-2284C-7
WHEN YOU PLACE ORDERS
LZ2284C7
LZ-2284C-7-WB/CP-160B
Auto-lifter Code
Not provided ZZ
AK83 (pedal-driven) AK
Wiper and automatic reverse feed function
Wiper
Automatic reverse
feed function
Code
Not provided Provided 0B
Provided Provided WB
Model name LZ-2284C-7
Stitch system Standard/3-step zigzag
Stitch pattern
Max. sewing speed
5,000rpm
Standard zigzag stitching: zigzag width of 5mm or less 3-step zigzag: zigzag width set to 8mm or less
Max. zigzag width Standard zigzag: 8mm/3-step zigzag: 10mm
Max. feeding amount Standard zigzag: 2.5mm/3-step zigzag: 2.0mm
Lift of the presser foot By hand: 5.5mm/By knee: 10mm
Hook DP hook (with titanium-treated inner hook)
Thread take-up Rotary type
Needle (at the time of delivery) SCHMETZ 134SUK, 438(#75)#65〜#90 ORGAN DP×5 #9〜#14
Needle position changing mechanism Provided as standard
Reverse feed stitching mechanism Provided as standard
Bobbin thread winder Built-in the machine head
Needle throw pattern cam Grooved cam
Peripheral dimension of the cylinder section
322mm
Lubrication Automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Power requirement/Power consumption Single-, 3-phase/650VA
Total weight 86.5kg
Control box Code
Standard S
SC910 S
M91S
● PSC box ● Motor for SC ● Operation panel
Operation panel Code
IP-100B IP100B
CP-160B CP160B
Pulley belt Code
Standard S
PSC box Code
For JUS (LA)
＊
Single-phase 100〜120V PFL S
For JUS
＊
, General Export 3-phase 200〜240V PFL D
For General Export Single-phase 200〜240V PFL K
For CE Single-phase 200〜240V PFL N
For China Single-phase 200〜240V PFL U
＊JUS: North America and Central and South America.
To Next Page
