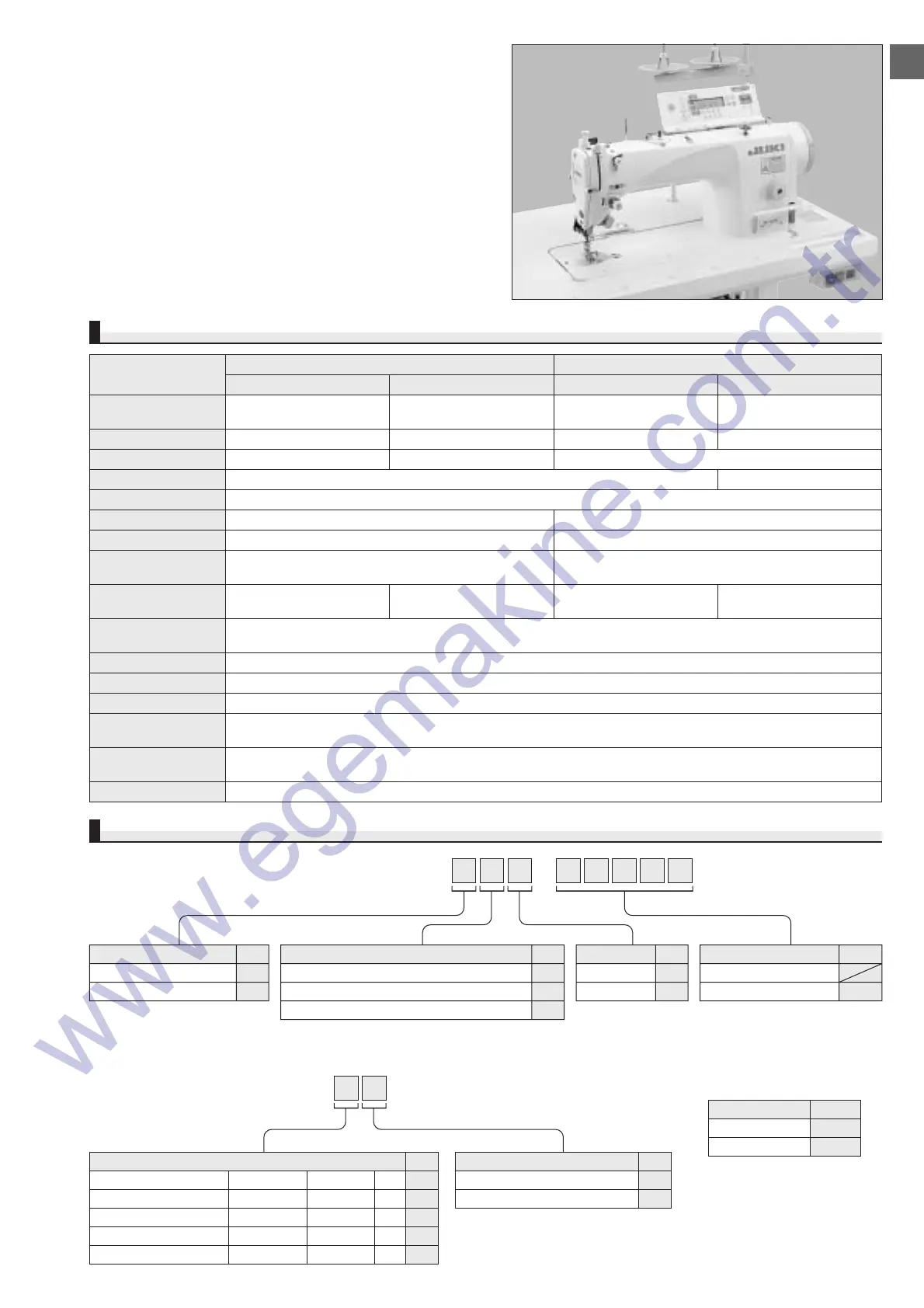

DDL-9000 (September, 2003) 1/2
DDL-9000DS-WB/CP-160D
● With its newly developed large machine head, the DDL-9000
dramatically upgrades seam quality and increases efficiency.
● The DDL-9000 incorporates a direct-drive system (DD system)
that offers quick start-up, upgraded stop accuracy, excellent
responsiveness, and a stronger needle thrust for faster,
better penetration into the material.
● Designed without an oil pan, the machine offers improved
maintainability with easy removal of dust and lint.
DDL-9000
Direct-drive, High-speed, 1-needle, Lockstitch Machine
with Automatic Thread Trimmer
SPECIFICATIONS
WHEN YOU PLACE ORDERS
● PSC box ● Operation panel
SC910
DDL9000 B
Machine head type Code
Dry head D
Minute-quantity lubrication
S
Operation panel Code
IP-100B IP100B
CP-160D CP160D
PSC box Code
For JUS(LA)
＊
Single-phase 100〜120V PFL S
For JUS
＊
, General Export 3-phase 200〜240V PFL D
For General Export Single-phase 200〜240V PFL K
For EU (CE) Single-phase 200〜240V PFL N
For China Single-phase 200〜240V PFL U
Application Code
For light- to medium-weight materials S
For heavy-weight materials H
＊
For extra light-weight materials and foundation
F
＊
Control box Code
Standard S
Provided with built-in I/O board A
＊For the sewing specification "H," only the minute-quantity lubrication type (S type) machine head is available.
For the sewing specification "F," only the dry head type (D type) machine head is available.
Wiper Code
Not provided 0
Provided W
Device and attachment Code
Not provided
Auto-lifter (pedal-driven) AK118
● Control box provided with built in I/O board (Code A) should be selected for the machine
head equipped with the remaining bobbin thread detector (AE-8).
＊JUS: North America and Central and South America.
Model name
Dry head type Minute-quantity lubrication type
DDL-9000DS DDL-9000DF DDL-9000SS DDL-9000SH
Application
For light- to
For extra light-weight materials
For light- to For heavy-weight materials
medium-weight materials
and foundation
medium-weight materials
Max. sewing speed 4,000rpm 3,500rpm 5,000rpm 4,500rpm
Max. stitch length 5mm 4mm 5mm
Needle bar stroke 30.7mm 35mm
Lift of the presser foot By hand : 5.5mm, By knee : 15mm, auto : 10mm
Lubrication No lubrication Minute-quantity lubrication to needle bar and hook
Lubricating oil ― JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Hook
Exclusive no-lubricating hook
(plastic hook with special-purpose race surface) Automatic lubricating hook
Needle DB×1 (#14) #9〜#18 DB×1 (#9) #8〜#11 DB×1 (#14) #9〜#18 DB×1 (#21) #19〜#23
(at the time of delivery)
For JE:134 (Nm75) Nm65〜Nm110 For JE:134 (Nm65) Nm65〜Nm75 For JE:134 (Nm75) Nm65〜Nm110
For JE:134 (Nm130) Nm120〜Nm160
Distance from
needle to machine arm
300mm
Size of bed 517mm×178mm
Bobbin thread winder Built-in the machine head
Machine head drive Compact AC servomotor that is directly connected to the main shaft (direct-drive system)
Automatic
reverse feed function
Provided as standard
Power requirement
Power consumption
Single-phase 100〜120V, 200〜240V, 3-phase 200〜240V/650VA
Total weight 84.5Kg
