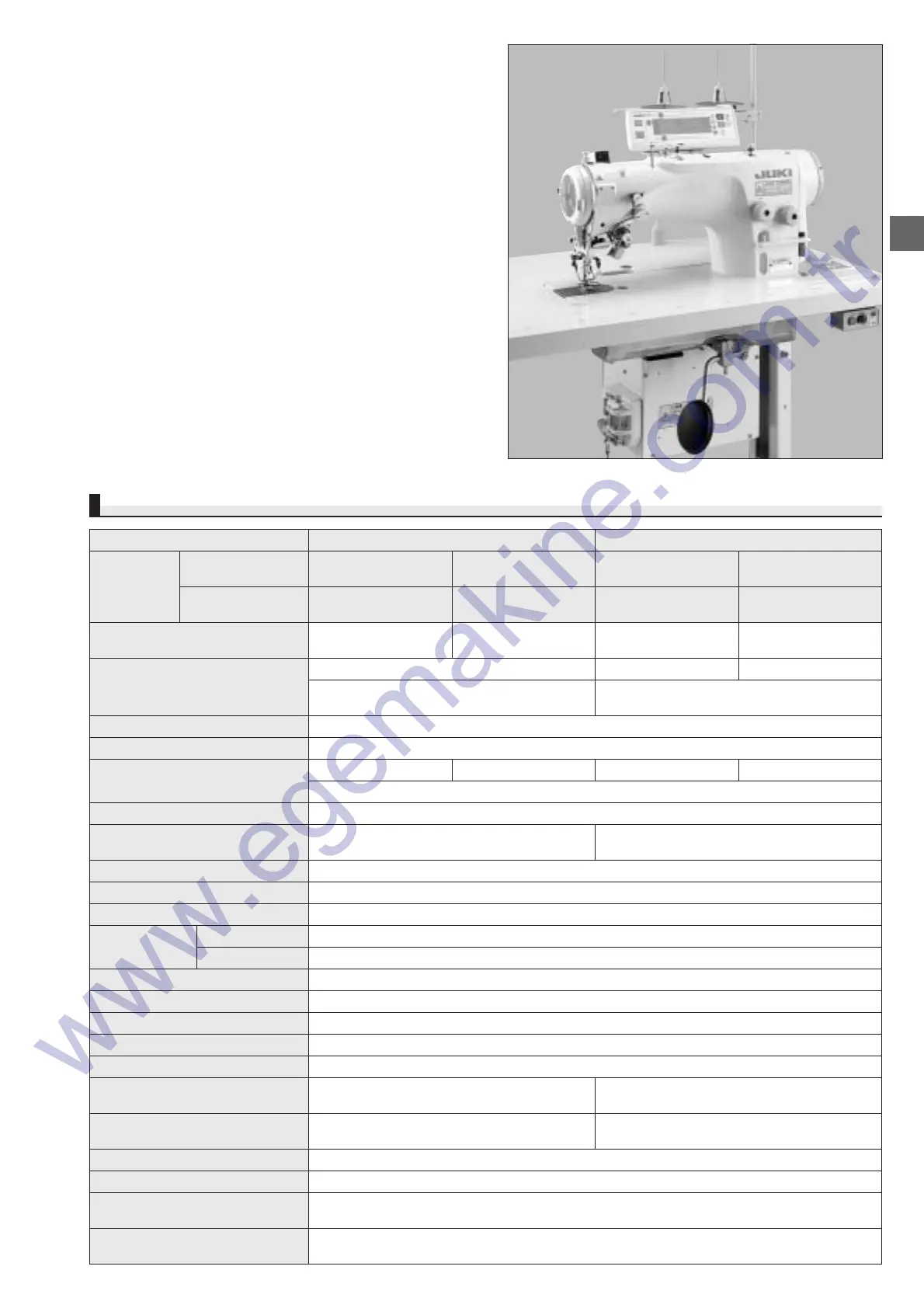

LZ-2290A Series (September, 2003) 1/4
● It comes in two different models, one with standard
specifications and the other with an anti-material slip capability.
For both models, there are two subclass models, i.e., the
"minute-quantity lubrication type" and the "dry-head type",
which eliminates oil stains on sewing products. You may
select the best-suited model from the diversified subclasses
according to your applications. The machine is also provided
with a newly-developed operation panel, the IP-100.
With this operation panel, you can easily establish settings for
stitch shapes and stitches, as well as conduct setup changing,
thereby achieving further increased availability.
● The machine is provided as standard with fourteen different
basic zigzag stitching patterns grouped into eight different
types. You can choose the zigzag stitching pattern you want
directly on the operation panel (IP-100) of the machine body.
The zigzag width, needle throw position and number of blind
stitches can also be easily adjusted on the operation panel.
SPECIFICATIONS
Computer-controlled, Direct-drive, High-speed, 1-needle,
Lockstitch, Zigzag Stitching Machine
LZ-2290A Series
LZ-2290A-SS-7-WB
Machine head type Dry-head type Minute-quantity lubrication type
Model name
Without automatic
thread trimmer
LZ-2290A-DS LZ-2290A-DU LZ-2290A-SS LZ-2290A-SU
With automatic
thread trimmer
LZ-2290A-DS-7 LZ-2290A-DU-7 LZ-2290A-SS-7 LZ-2290A-SU-7
Type Standard
Anti-material-slip
Standard
Anti-material-slip
capability type capability type
Max. sewing speed
4,000rpm 5,000rpm 4,500rpm
(for standard zigzag stitching, the zigzag width (for standard zigzag stitching, the zigzag width
has to be set to 5mm or less.) has to be set to 4mm or less.)
Max. zigzag width 10mm (in increments of 0.1mm)
Needle throw mechanism Computer-controlled
Max. feeding amount
5.0mm 2.5mm 5.0mm 2.5mm
Stepless fine adjustment
Lift of the presser foot By hand: 5.5mm/By knee: 10mm
Hook
Exclusive no-lubricating hook
(plastic hook with special-purpose race surface)
DP hook (with titanium-treated inner hook)
Thread take-up Rotary type
Needle (at the time of delivery) SCHMETZ438(#75), ORGAN DP×5(#10)
Number of patterns for standard stitching
8 types/14 patterns
Internal memory Max. 20 patterns
Extended memory Max. 999 patterns
Max. number of stitches 500 stitches/pattern
Continuous stitching pattern Max. 10 patterns, 20 step, 500 stitches/step
Input function of the main unit Provided as standard (operation panel)
Bobbin thread winder Built-in machine head
Machine head drive Compact AC servomotor (direct-drive system)
Lubrication No lubrication
Minute-quantity lubrication to needlebar and
hook (no oil pan system)
Lubricating oil −
JUKI New Defrix Oil No.1
(equivalent to ISO VG7)
Distance from needle to machine arm 300mm
Bed size 517mm×178mm
Power requirement/
Power consumption
Single-phase 100〜120V, 200〜240V, 3-phase 200〜240V/Power rating 600VA
Total weight
98kg (for the model without automatic thread trimmer)
100kg (for the model with automatic thread trimmer)
Custom pattern
memory capacity
To Next Page
