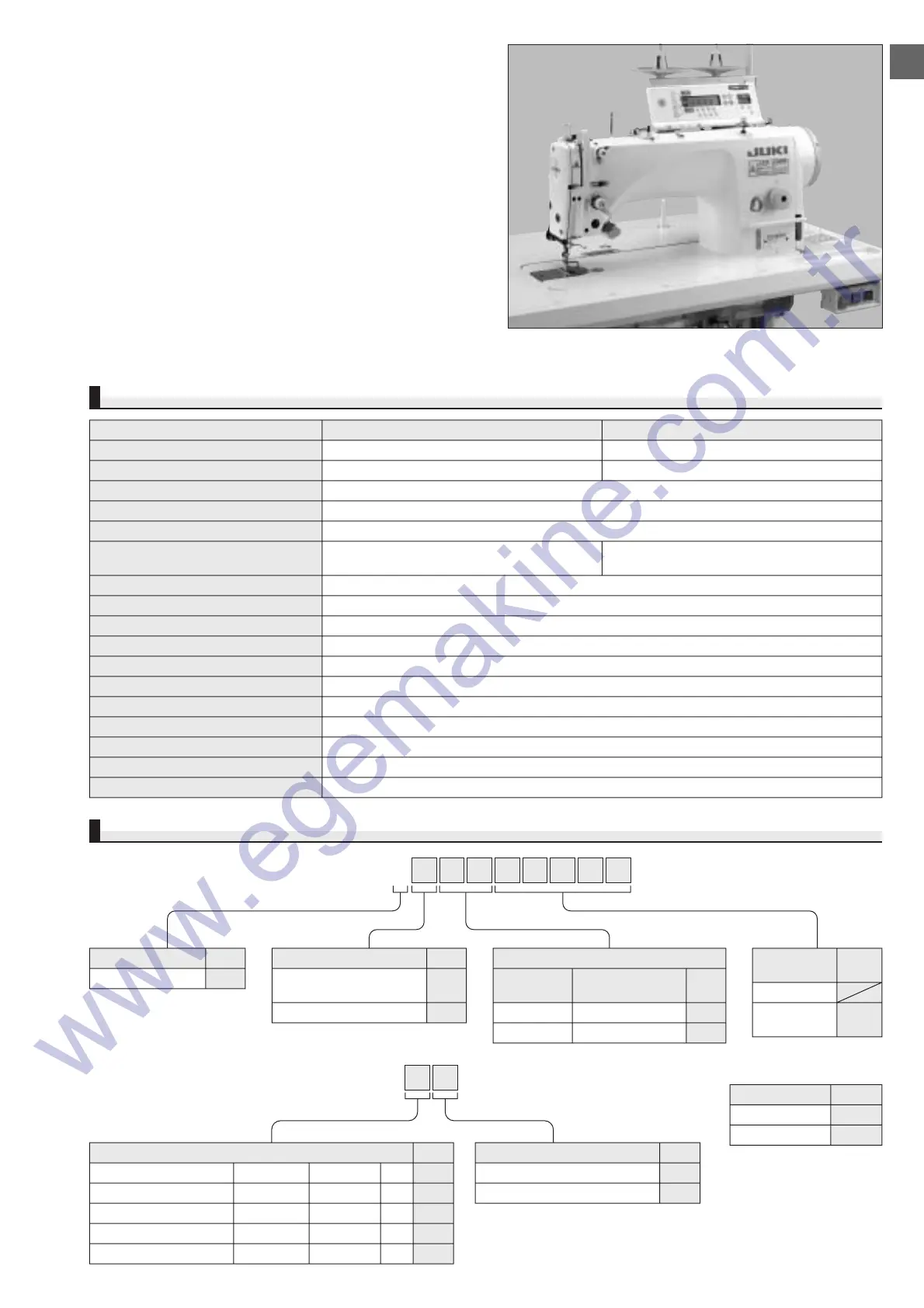

DLN-9010 (September, 2003) 1/2
● Thanks to the needle-feed mechanism which offers excellent
efficiency of feed, the machine ensures accurate stitch pitches
(stitch length) as well as preventing slippage of the upper cloth.
The bottom feed's locus has been improved to match the
needle feed motion, thus the machine produces beautiful
seams without stitch gathering, even when it is used for sewing
slippery and difficult-to-feed material or for handling a difficult
process.
● The needle feed mechanism is a so-called "dry type", which
does not require oiling. With this mechanism, a highly reliable
machine structure, free from oil leakage troubles, has been
achieved. The frame, which requires only a minute quantity of
lubricating oil, is structured to eliminate oil leakage.
SPECIFICATIONS
Direct-drive, High-speed, Needle-feed, Lockstitch Machine
with Automatic Thread Trimmer
DLN-9010
WHEN YOU PLACE ORDERS
DLN9010S
Machine head type Code
Standard S
Application Code
For light- to
medium-weight materials
S
For heavy-weight materials H
Wiper and automatic reverse feed function
Wiper
Automatic reverse
feed function
Code
Not provided Provided 0B
Provided Provided WB
Device and
attachment
Code
Not provided
Auto-lifter
(pedal-driven)
AK118
DLN-9010SS-WB/CP-160D
Model name DLN-9010SS DLN-9010SH
Application For light- to medium-weight materials For heavy weight materials
Max. sewing speed 5,000rpm 4,000rpm
Max. stitch length 4.5mm
＊
Needle bar stroke 33mm
Lift of the presser foot By hand: 5.5mm, By knee: 15mm(max.), Auto: 10mm
Needle (at the time of delivery)
DB×1 (#11) #9〜#18 DB×1 (#21) #20〜#23
For JE:134 (Nm90) Nm65〜Nm110 For JE:134 (Nm130) Nm120〜Nm160
Hook Automatic-lubricating full-rotary hook
Lubrication Minute-quantity lubrication to needle bar and hook
Lubricating oil JUKI New Defrix Oil NO.1 (equivalent to ISO VG7)
Distance from needle to machine arm 300mm
Size of bed 517mm×178mm
Bobbin thread winder Built-in the machine head
Micro-lifter screw Provided as standard
Machine head drive Compact AC servomotor that is directly connected to the main shaft (direct-drive system)
Automatic reverse feed function Provided as standard (built-in solenoid type)
Power requirement/Power consumption Single-phase 100〜120V, 200〜240V, 3-phase 200〜240V／650VA
Total weight 87kg
SC910
● PSC box ● Operation panel
Operation panel Code
IP-100B IP100B
CP-160D CP160D
Control box Code
Standard S
Provided with built-in I/O board A
● Control box provided with built in I/O board
(Code A) should be selected for the machine
head equipped with the remaining bobbin
thread detector (AE-8).
PSC box Code
For JUS (LA)
＊
Single-phase 100〜120V PFL S
For JUS
＊
,
General Export 3-phase 200〜240V PFL D
For General Export Single-phase 200〜240V PFL K
For EU (CE) Single-phase 200〜240V PFL N
For China Single-phase 200〜240V PFL U
＊JUS: North America and Central and South America.
＊The maximum sewing speed is 4,000 rpm or less in cases where the maximum stitch length is 3.5 mm or more.
