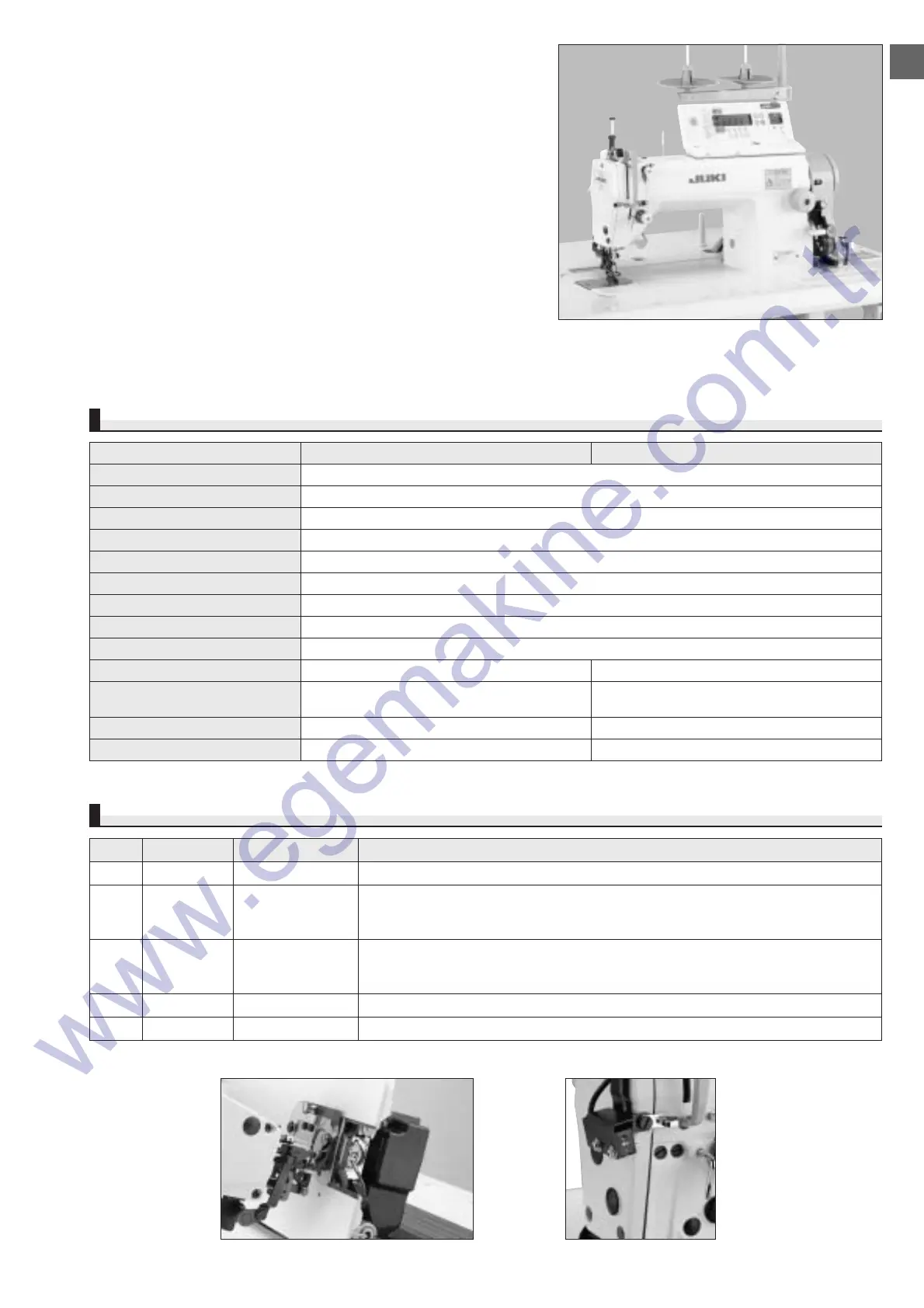

DLU-5490N, 5490N-7 (September, 2003) 1/2
DLU-5490N DLU-5490N-7
Remaining bobbin thread detector (AE-4) Material edge sensor (ED-2)
● The walking foot provides stable feed at all times, assuring high quality.
It also eliminates the need for proficiency.
● The top-feed motion ideally synchronized with the bottom-feed motion
to uniformly feed the upper and lower cloths, assuring attractive stitches
and uniform gathering stitches. This leads to a higher value of finished
products.
● The maximum top-feed amount is 8mm. The top-feed amount has
been increased to assure stable gathering stitches.
DLU-5490N
DLU-5490N-7
(with automatic thread trimmer)
1-needle, Bottom and Variable Top-feed Lockstitch Machine
Model
AK85
AE-4
＊
ED-2
PF-6
―
Part No.
―
GAE-040000A0
―
―
112-43763
Description
Auto-lifter
Remaining bobbin
thread detector
Material edge sensor
Partial shirring device
Micro-lifter (asm.)
Feature
―
When the amount of remaining bobbin thread reaches the setting, the buzzer will sound to warn
the operator not to press on the front part of the foot pedal. With this function, the operator
doesn’t have to look away from the sewing work to check the bobbin thread.
When the sensor detects a material edge, it immediately stops the sewing machine and actuates
the thread trimmer. This enhances productivity by allowing the operator to conduct sewing
work without running to look out for missing stitches.
The partial shirring device permits very easy shirring.
This device can be installed on the back of the faceplate. It is very convenient for frequent use.
OPTIONS
＊To retrofit the AE-4 to your existing machine, I/O unit A (part number: 400-06080), which is separately available, is required.
SPECIFICATIONS
Model name
Max. sewing speed
Max. stitch length
Max. top-feed amount
Needle bar stroke
Lift of the presser foot
Needle (at the time of delivery)
Hook
Lubrication
Lubricating oil
Automatic reverse feed function
Power requirement
Power consumption
Weight
4,500rpm
5mm
8mm
30.7mm
By hand: 5.5mm, By knee: 13mm
DB×1 (#14), For JE: 134 (Nm90)
Automatic-lubricating full-rotary hook
Automatic
JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
―
―
―
Machine head: 30kg
Provided as standard
Single-phase 100〜120V, 200〜240V
3-phase 200〜240V
650VA
Total weight: 83kg
DLU-5490N-7-WB/CP-160A
To Next Page
