Quick
Start
Guide
Bluetooth
antenna
unit
"]~J:""
atNED
atHJ:rot
;;l
~
•
If
the
console
has
a lid, make sure
to
install
the
unit
so
that
the
faceplate will
not
hit
the lid
when
closing and opening.
•
If
the
fuse blows, first make sure the wires
aren/t
touching
to
cause a short circuit,
then replace
the
old
fuse
with
one
with
the
same rating.
• Insulate unconnected wires
with
vinyl tape
or other similar material.
To
prevent a short
circuit,
do
not
remove
the
caps on
the
ends
of
the unconnected wires or
the
terminals.
• Connect
the
speaker wires correctly
to
the
terminals
to
which
they correspond. The
unit may be damaged or fail
to
work
if
you
share the
e wires
or
ground
them
to
any
metal part in
the
car.
• When only
two
speakers
are
being
connected
to
the
system,
connect
the
connectors either
to
both
the
front
output
terminals
or
to
both
the rear
output
terminals (do
not
mix front and
rear).
For
example,
if
you
connect
the
EEl
connector
of
the
left speaker
to
a front
output
terminal,
do
not
connect
the
e connector
to
a rear
output
terminal.
• After the
unit
is
installed, check whether
the brake lamps, blinkers, wipers, etc. on
the car
are
working
properly.
•
Mount
the
unit
so
that
the
mounting
angle
is
30°
or
less.
•
This
unit
has
the
cooling fan (P.27)
to
decrease
the
internal temperature. Do
not
mount
the
unit
in a place where
the cooling fan
of
the
unit are blocked.
Blocking these openings will inhibit the
cooling
ofthe
internal temperature and
result in malfunction.
• Do not
press
hard on the panel surface when
installing the unit
to
the vehicle. Otherwise
scars,
damage, or failure may result.
• Reception may
drop
ifthere
are
metal
objects near
the
Bluetooth antenna.
I
I
I
I
i
I
I
I
I
I
I
IIII1
1III
L-...
~
NOTES 1
• Mounting and wiring this product requires
skills
and
experience.
For
best
safety,
leave
the
mounting and wiring work
to
professionals. I
• Make sure
to
ground
the
unit
to
a negative i
12V
DC
power
supply.
• Do
not
install
the
unit
in a spot exposed
to
direct sunlight or excessive heat or
humidity. Also avoid places
with
too
much
dust or the possibility
of
water splashing.
• Do
not
use
your
own
screws.
Use
only
the screws provided.
If
you
use
the
wrong
screws, you could damage
the
unit.
•
If
the
power
is
not
turned
ON
("PROTECT"
is
displayed),
the
speaker wire may have a
short-circuit or
touched
the
chassis
of
the
vehicle and
the
protection function may
have been activated. Therefore,
the
speaker
wire should be checked.
• If your
car's
ignition does
not
have
an
ACC
position, connect
the
ignition wires
to
a
power source
that
can be turned on and
off
with
the ignition
key.
If
you
connect
the
ignition wire
to
a
power
source
with
a constant voltage supply, such
as
with
battery wires,
the
battery may be drained.
~WARNINGS
•
If
you connect
the
ignition
wire (red)
and
the
battery
wire (yellow)
to
the
car
chassis (ground), you may cause a short
circuit,
that
in
turn
may start a fire. Always
connect those wires
to
the
power source
running
through
the
fuse box.
• Do
not
cut
out
the
fuse
from
the
ignition
wire (red) and
the
battery
wire (yellow).
The
power
supply
must
be connected
to
the
wires via
the
fuse.
"&'CAUTION
• Install this
unit
in
the
console
of
your
vehicle.
Do
not
touch
the
metal
part
of
this
unit
during
and shortly after
the
use
of
the
unit. Metal
part
such
as
the
heat sink and
enclosure become hot.
Before
Installation
Before installation
of
this unit, please
note
the
following precautions.

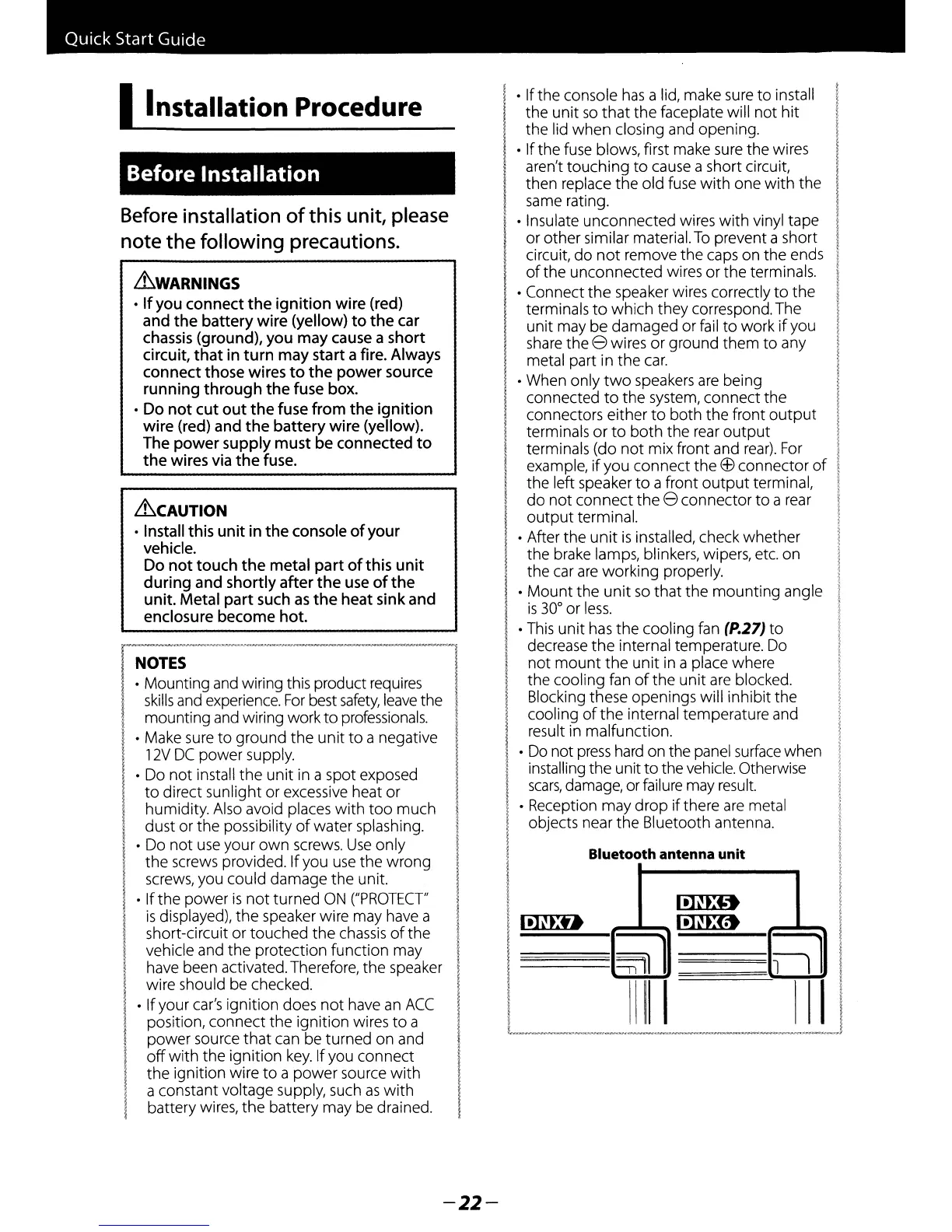

• Installation Procedure
