I. ~I::'~II the microphone as far as po, ssible
from the cell-phone.
. '-,----,

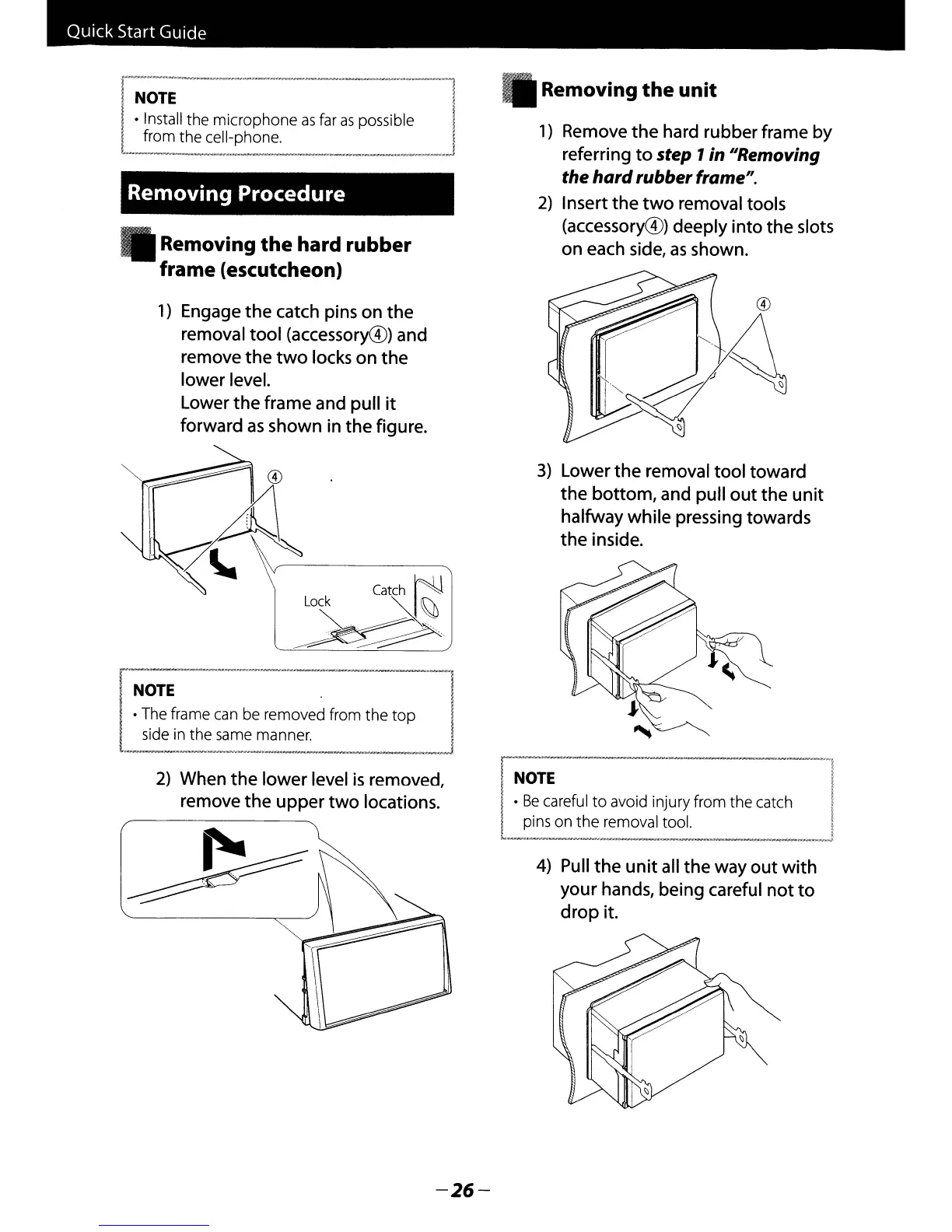

Removing Procedure
Removing the hard rubber
frame (escutcheon)
1) Engage the catch pins on the
removal
tool (accessory(1)) and
remove the
two locks on the
lower level.
Lower
the frame and pull it
forward as shown in the figure.
NOTE
• The frame can be removed from the top
side in the same manner.
2) When the lower level is removed,
remove
the upper two locations.
-26-
Removing the unit
1) Remove the hard rubber frame by
referring
to step 1 in "Removing
the hardrubberframe".
2) Insert the two removal tools
(accessory@)) deeply into the slots
on each side, as shown.
3) Lower the removal tool toward
the
bottom, and pull out the unit
halfway while pressing towards
the inside.
r-
I
'
,~_.~-_._-._---,----' --'------""_·--'·-1
NOTE I
I
.
Be careful to avoid injury from the catch I
pins on the removal tool. I
l ,
4) Pull the unit all the way out with
your hands, being careful not to
drop it.
